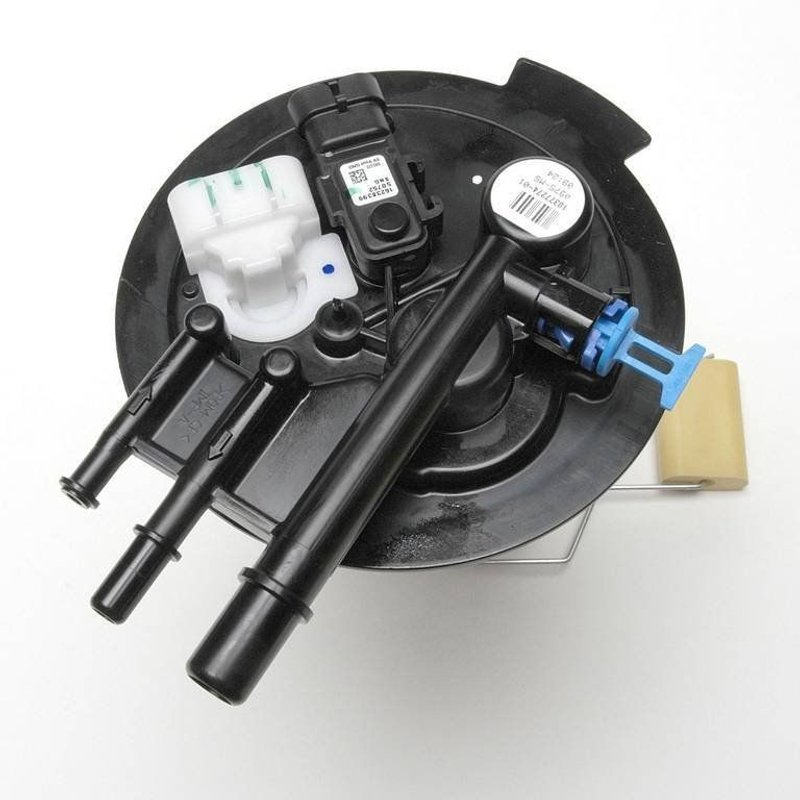

Delphi FG0386 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Buick Rendezvous

The Delphi FG0386 fuel pump module assembly is designed specifically for Buick Rendezvous models requiring reliable in-tank fuel delivery. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Includes regulator, internal strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and three outlet ports
• Designed for gasoline fuel systems with a maximum pressure rating of 131 psi
• Blade-type male terminals with four connections for secure electrical fit
• Average flow rating of 19 gallons per hour and system pressure of 59 psi
• Includes vapor pressure sensor for accurate fuel system monitoring

Product Details and Specifications

The Delphi FG0386 fuel pump module assembly is an in-tank electric pump engineered for Buick Rendezvous vehicles. It features an internal strainer inlet and a quick connect outlet type, facilitating efficient fuel delivery and easy installation. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel gauge readings. The pump operates at 12 volts with an average current draw of 7 amps, supporting a system pressure of 59 psi and a maximum pressure of 131 psi. The assembly comes complete with a gasket and strainer to ensure a proper seal and filtration, while the blade-type male terminals with four connections provide reliable electrical contact.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Buick Rendezvous models requiring a standard replacement fuel pump. It is designed to maintain proper fuel pressure and flow in gasoline fuel systems, making it suitable for addressing common fuel delivery issues.

• Resolves fuel delivery interruptions and engine stalling
• Corrects inaccurate fuel level readings due to faulty sender units
• Eliminates low fuel pressure causing poor engine performance
• Replaces worn or damaged fuel pump modules in Buick Rendezvous
• Addresses vapor pressure sensor faults affecting emissions control

Installation Notes and Tips

Installation of the Delphi FG0386 fuel pump module assembly should be performed with care to avoid damage to the fuel system. Ensure the gasket and strainer are properly seated to prevent leaks and contamination. Disconnect the battery before installation to avoid electrical hazards. Use appropriate tools to connect the quick connect outlets and blade terminals securely. Verify fuel system pressure and electrical connections after installation to confirm proper operation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0386 assembly is a standard replacement part designed for durability and reliable performance in Buick Rendezvous vehicles. The product includes a fuel level sender assembly and vapor pressure sensor to maintain system accuracy. Warranty coverage details should be confirmed with the distributor or installer, as Delphi typically offers limited warranties on fuel delivery components.
