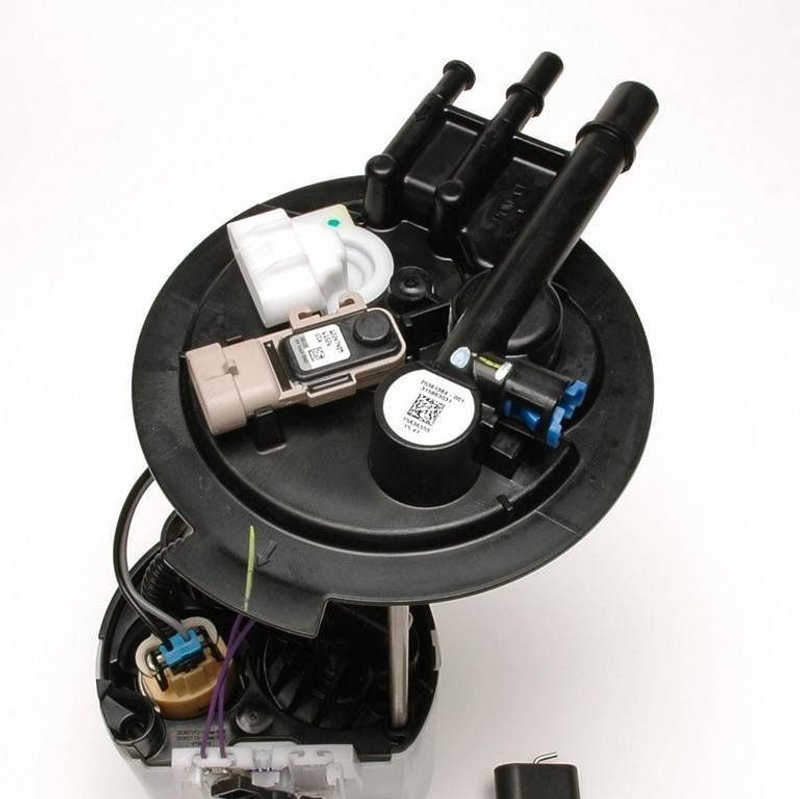

Delphi FG0409 Fuel Pump Module Assembly

Fuel Pump Module Assembly for 2006 GM Sedans

Delphi FG0409 is an in-tank fuel pump module assembly built for 2006 Chevrolet Impala and 2006 Chevrolet Monte Carlo applications. It combines the pump, fuel level sender, regulator, seal, and vapor pressure sensor support in one OE-style replacement assembly for flex-fuel systems.

Key Features

• In-tank electric fuel pump module assembly for 12-volt systems
• Includes fuel level sender assembly, float arm, seal, and strainer
• Regulator included with maximum pressure rated at 73.0
• Quick-connect outlet design with three outlets and 0.375 in. outlet outside diameter
• Blade terminals, male terminal ends, and 4-terminal configuration
• Built for flex-fuel service with vapor pressure sensor included
• Standard replacement grade for direct service use

Detailed Description

Delphi FG0409 is engineered as a fuel pump module assembly for 2006 Chevrolet Impala and 2006 Chevrolet Monte Carlo models. It is designed for in-tank installation and includes the fuel pump, internal strainer, fuel level sender assembly, regulator, gasket or seal, and vapor pressure sensor support. With a 12.0-volt electric pump design, 58 psi system pressure, and 73.0 maximum pressure rating, this assembly is built to restore consistent fuel delivery in flex-fuel applications. Delphi draws on OE heritage and decades of supplier experience to produce aftermarket parts with application-specific engineering and broad vehicle coverage. This part number is FG0409.

This part cross-references Four Seasons 67559 for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak or inconsistent fuel pressure
• Engine stalling from fuel delivery interruption
• Fuel gauge inaccuracies from a worn sender assembly
• Fuel pump noise associated with internal pump wear
• Driveability issues in flex-fuel systems with failing module components

Installation Notes and Tips

Fits 2006 Chevrolet Impala, N/A. Fits 2006 Chevrolet Monte Carlo, N/A. The fitment notes specify a two-port cover for manufacturing use only; do not tamper with the plugged port and use the open port to prevent fuel tank contamination that can lead to premature pump failure. Cleaning the tank before installation is advised, and a fuel tank cleaning kit FC01 is referenced in the fitment notes. Verify connector style, outlet routing, and tank condition before installation. This part number is FG0409.

Quality Assurance

Delphi builds this module using OE experience and supplier knowledge developed over 100 years of serving major automakers. The FG0409 fuel pump module assembly reflects that OE-focused background with application-specific components for the listed Chevrolet models.
