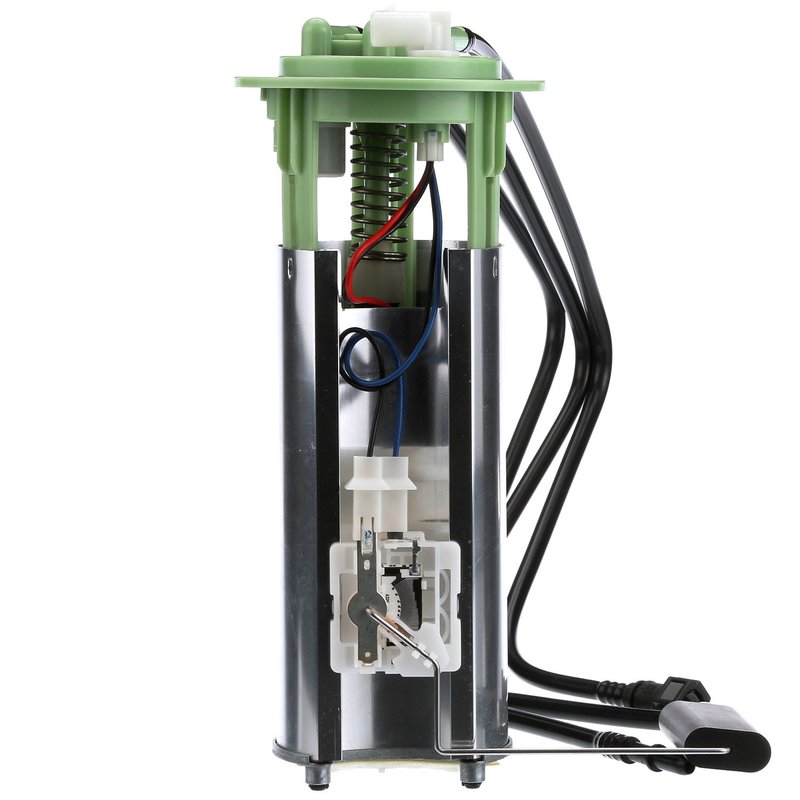

Delphi FG0412 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0412 fuel pump module assembly is designed for reliable fuel delivery in select Saturn vehicles. Engineered to meet standard replacement specifications, this in-tank electric fuel pump supports efficient fuel flow and accurate fuel level readings for models including Saturn SC1, SC2, SL, SL1, SL2, SW1, and SW2.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes internal strainer and gasket for secure installation
• Features female quick connect outlets with 0.375-inch outside diameter
• Designed for in-tank installation with 4 male blade terminals
• Supports system pressure of 46 psi and maximum pressure of 80 psi
• Average flow rating of 20 and average current draw of 8 amps

Technical Details and Specifications

The Delphi FG0412 fuel pump module assembly operates at 12 volts and is specifically designed for gasoline fuel systems. It includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly with a float arm for accurate fuel gauge readings. The module features three female quick connect outlets with an outside diameter of 0.375 inches, ensuring secure fuel line connections. The assembly is equipped with four male blade terminals, providing reliable electrical connectivity. It supports a system pressure of 46 psi and can handle a maximum pressure of 80 psi, suitable for the fuel delivery requirements of Saturn SC and SL series vehicles.

Compatible Saturn Models and Applications

This fuel pump module assembly is compatible with the following Saturn models: SC1, SC2, SL, SL1, SL2, SW1, and SW2. It is intended as a direct replacement for the original in-tank fuel pump module, ensuring proper fit and function within these vehicles' fuel systems. The part number FG0412 corresponds to this specific Delphi module, making it easier to identify for maintenance or repair needs.

• Resolves fuel delivery issues such as inconsistent fuel pressure
• Addresses fuel gauge inaccuracies due to faulty sender units
• Replaces worn or damaged fuel pump modules causing engine performance problems
• Eliminates fuel system contamination with integrated internal strainer
• Prevents electrical connection failures with durable blade terminals

Installation Notes and Tips

When installing the Delphi FG0412 fuel pump module assembly, ensure the gasket included is properly seated to prevent fuel leaks. The module is designed for in-tank installation, so take appropriate safety precautions when working with fuel systems. Verify the orientation of the float arm for accurate fuel level readings. Use compatible female quick connect fittings for the outlet connections and confirm all four blade terminals are securely connected. Follow vehicle-specific service manual instructions for removal and installation procedures.

Quality Assurance and Warranty Information

Delphi manufactures the FG0412 fuel pump module assembly to meet standard replacement quality standards. The product includes a gasket and strainer to maintain system integrity and is tested for electrical resistance and flow performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
