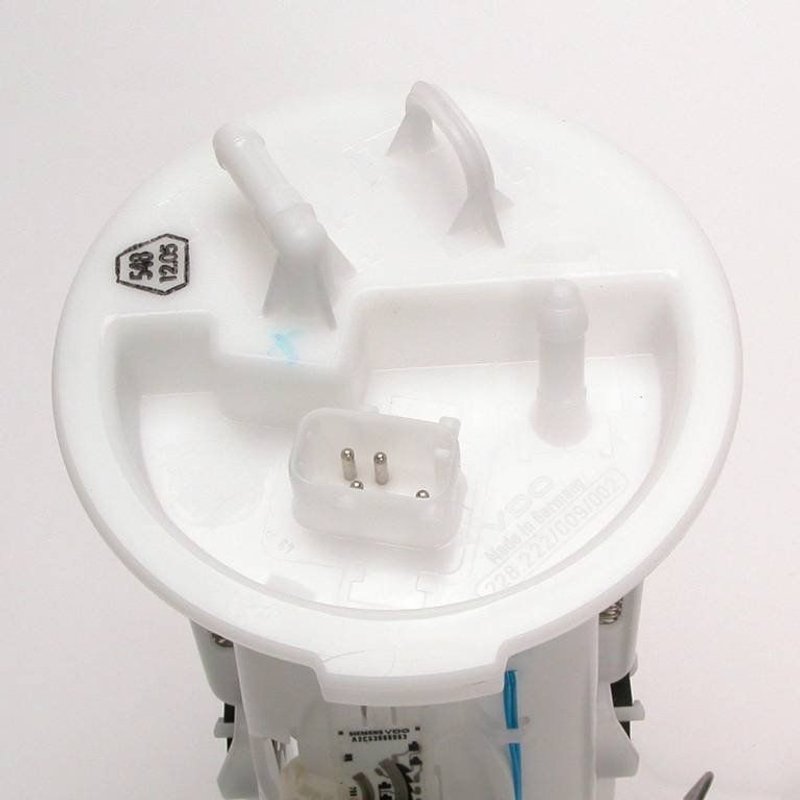

Delphi FG0415 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0415 fuel pump module assembly is designed for reliable fuel delivery in select BMW models. Engineered as an in-tank electric fuel pump, it supports gas fuel systems and includes a fuel level sender assembly for accurate fuel measurement.

• Compatible with BMW 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, and 330xi models
• Operates at 12 volts with an average current draw of 9 amps
• Maximum pressure rating of 80 psi and system pressure of 51 psi
• Includes external strainer inlet and hose-type outlet with 0.375 inch outside diameter
• Equipped with 4 male pin terminals for secure electrical connections
• Fuel level sender assembly with float arm included for precise fuel monitoring
• Standard replacement grade for dependable performance
• Package contains fuel pump module assembly and instruction sheet

Technical Details and Features

The Delphi FG0415 fuel pump module assembly is an electric pump designed for in-tank installation, ensuring efficient fuel delivery to the engine. It features a strainer inlet and an external strainer to protect the pump from debris. The pump supports gasoline fuel types and maintains a system pressure of 51 psi, with a maximum pressure capacity of 80 psi. The outlet is a single hose type with a 0.375 inch outside diameter, suitable for direct connection to the fuel line. Electrical connections are made via four male pin terminals, providing stable and reliable power delivery. The included fuel level sender assembly with float arm allows for accurate fuel gauge readings, essential for vehicle operation and maintenance.

Compatible BMW Models and Applications

This fuel pump module assembly is compatible with a range of BMW vehicles, including the 323Ci, 323i, 325Ci, 325i, 325xi, 328Ci, 328i, 330Ci, 330i, and 330xi. It is designed to replace the original equipment fuel pump module in these models, ensuring proper fit and function. The part number FG0415 should be referenced when searching for a replacement fuel pump module for these BMW vehicles.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates noise or vibration caused by worn fuel pump components
• Prevents fuel pump failure due to clogged strainers or debris

Installation Notes and Tips

Installation of the Delphi FG0415 fuel pump module assembly requires removal of the fuel tank for access. Ensure the vehicle battery is disconnected before beginning work to avoid electrical hazards. Carefully disconnect the four-pin electrical connector and fuel lines, noting the orientation of the hose outlet and strainer inlet. Replace the fuel pump module assembly with the new unit, making sure the fuel level sender float arm moves freely. Follow the included instruction sheet for torque specifications and reassembly procedures. After installation, verify proper fuel pressure and fuel gauge operation before starting the engine.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. The FG0415 is a standard replacement grade part, designed for durability and consistent performance. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
