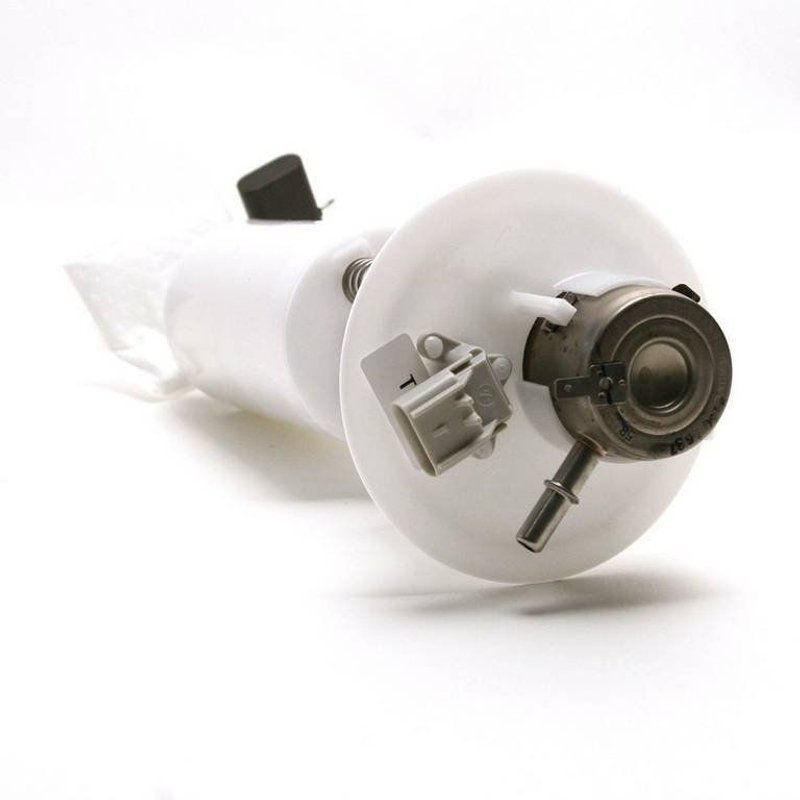

Delphi FG0420 Fuel Pump Module Assembly
| Brand | Delphi FG0420 |
|---|---|
| Average Current Draw | 13 |
| Average Flow Rating | 16 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 1050.0 |
| Resistance Ohms Full | 60.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Chrysler and Dodge · 4 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Includes key components. Comes with a seal, strainer, and fuel level sender assembly.
OE heritage. Built from 100 years of OE experience and supplier knowledge.
Cross-references Airtex Fuel Pumps E7141M, Carter P75025M and Four Seasons 67664 for the same application. See all 16.
Delphi FG0420 Fuel Pump Module Assembly
The Delphi FG0420 fuel pump module assembly is a standard replacement for select Chrysler Sebring and Dodge Stratus applications. Built for in-tank gasoline systems, it combines the pump, fuel level sender assembly, regulator, seal, and strainer in one service-ready unit.
With OE-focused engineering drawn from Delphi’s long history supplying automakers, this module is built for accurate fuel delivery and dependable system operation on 2001-2002 Chrysler Sebring and 2001-2002 Dodge Stratus models.
Key Features
- In-tank electric fuel pump module assembly for gasoline applications
- Includes fuel level sender assembly, regulator, strainer, and gasket or seal
- Quick-connect outlet with 0.375 in. outside diameter
- 12-volt design with blade terminals and 4-terminal connection
- Maximum pressure rating of 80 psi and system pressure of 58 psi
- Standard replacement part for select Chrysler Sebring and Dodge Stratus vehicles
- Delphi FG0420 fuel pump module assembly built with OE-based application knowledge
Detailed Description
The Delphi FG0420 is a fuel pump module assembly engineered for in-tank installation on gas-powered vehicles. It is designed with an integrated regulator, external strainer, quick-connect outlet, and fuel level sender assembly to support consistent fuel delivery and accurate tank level reporting. The module’s 12-volt electric pump design, 13-amp average current draw, and 16 average flow rating make it a direct service part for the specified Chrysler and Dodge applications.
This part cross-references Airtex Fuel Pumps E7141M and Spectra Premium SP7141M for the same application. It is a practical replacement choice for owners searching for a fuel pump module assembly for 2001-2002 Chrysler Sebring or 2001-2002 Dodge Stratus, and the Delphi FG0420 part number is commonly used when matching the correct in-tank fuel delivery module.
What It Is Used For
- Restoring fuel pressure in a vehicle with a weak or failed in-tank pump
- Correcting hard-start or no-start conditions caused by fuel delivery loss
- Replacing a malfunctioning fuel level sender that reads empty or full incorrectly
- Addressing fuel starvation, hesitation, or stalling under load
- Replacing a leaking or worn module seal during fuel system service
Installation Notes and Tips
Before installing the Delphi FG0420, clean the fuel tank thoroughly to help prevent future seal problems, as noted for the listed applications. Verify connector style, outlet type, and in-tank configuration before installation. Always confirm fitment for your exact year, make, and model, including 2001-2002 Chrysler Sebring and 2001-2002 Dodge Stratus.
Quality Assurance
Delphi builds aftermarket fuel system parts using OE heritage and application knowledge developed through decades of supplying major automakers. The FG0420 is a standard replacement fuel pump module assembly intended to meet the needs of the listed vehicles with the correct pressure, electrical, and sender specifications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2002 | Chrysler | Sebring | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Dodge | Stratus | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Chrysler | Sebring | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Dodge | Stratus | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
