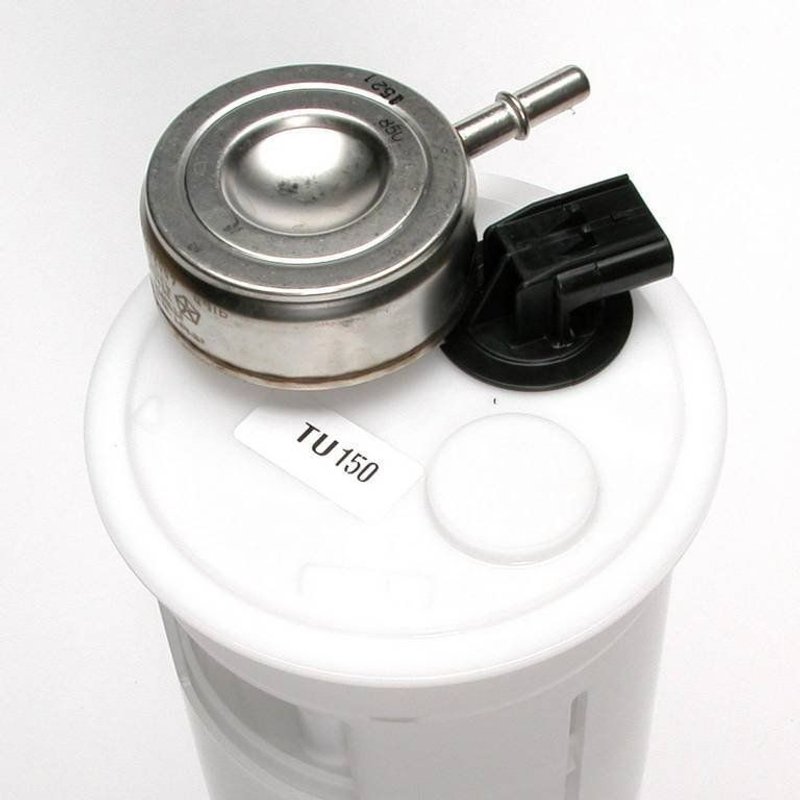

Delphi FG0422 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Dakota

The Delphi FG0422 fuel pump module assembly is designed specifically for Dodge Dakota models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel flow and pressure, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes regulator, external strainer, gasket, and seal for secure installation
• Features a 0.375-inch outlet outside diameter with quick connect outlet type
• Designed for in-tank installation with blade-type male terminals (4 terminals)
• System pressure rated at 49 psi with a maximum pressure of 73 psi
• Average flow rating of 20 and average current draw of 16 amps

Technical Details and Specifications

The Delphi FG0422 fuel pump module assembly is engineered to meet the fuel delivery demands of Dodge Dakota vehicles. Operating at 12 volts, this electric pump supports gasoline fuel systems and includes a built-in regulator to maintain consistent pressure. The module features a quick connect outlet with a 0.375-inch diameter, facilitating straightforward fuel line connections. It comes equipped with an external strainer and an inlet strainer to protect the fuel system from contaminants. The assembly includes a fuel level sender assembly with resistance values ranging from 220 ohms (empty) to 20 ohms (full), providing accurate fuel level readings. The four male blade terminals ensure secure electrical connections, while the included gasket and seal help prevent leaks during installation.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump modules in Dodge Dakota models
• Resolves inconsistent fuel pressure or flow problems causing engine hesitation or stalling
• Addresses fuel level sender malfunctions leading to inaccurate fuel gauge readings
• Prevents fuel leaks with included gasket and seal components
• Improves fuel system reliability by filtering contaminants with the external strainer

Installation Notes and Tips

Installation of the Delphi FG0422 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket and seal to maintain a proper seal and prevent fuel leaks. Verify that the four blade terminals are correctly connected to the vehicle’s wiring harness, matching the male terminal configuration. The quick connect outlet simplifies fuel line attachment, but confirm all connections are secure before reassembling the fuel tank. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions.

Quality Assurance and Warranty Information

Delphi manufactures the FG0422 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and is tested for consistent flow and pressure ratings. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects. Consult the product documentation or authorized service providers for warranty terms applicable to this fuel pump module assembly.
