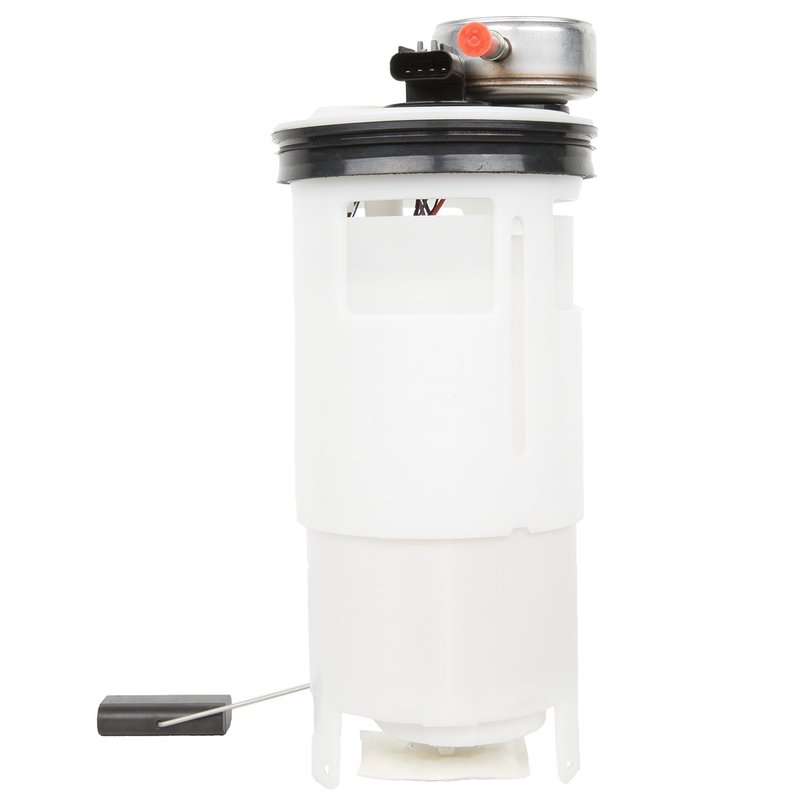

Delphi FG0423 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram 1500

The Delphi FG0423 fuel pump module assembly is designed specifically for Dodge Ram 1500 models requiring a dependable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems, 12V operation
• Includes regulator, external strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Maintains system pressure at 49 psi with a maximum pressure rating of 57 psi
• Blade-type male terminals, 4-terminal configuration
• Average flow rating of 54 liters per hour and average current draw of 7 amps

Technical Details and Features

The Delphi FG0423 fuel pump module assembly is engineered for precise fuel delivery in Dodge Ram 1500 trucks. Operating at 12 volts, this electric pump features a built-in fuel level sender assembly and regulator to maintain consistent fuel pressure up to 57 psi. The module includes an external strainer inlet and a quick connect outlet with a 0.375 inch diameter, ensuring efficient fuel flow and filtration. The four blade-type male terminals provide secure electrical connections, while the included gasket helps prevent leaks during installation. This standard replacement part supports gas fuel systems and is designed for in-tank mounting, optimizing fuel pump longevity and performance.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Dodge Ram 1500 vehicles
• Resolves issues with inconsistent fuel pressure or engine stalling
• Addresses fuel level sender malfunctions for accurate fuel gauge readings
• Eliminates fuel delivery interruptions caused by clogged strainers or worn components
• Improves overall fuel system reliability and engine responsiveness

Installation Notes and Tips

When installing the Delphi FG0423 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid spills and hazards. Use the included gasket to create a secure seal and prevent leaks. Verify the correct orientation of the quick connect outlet and blade terminals for proper electrical and fuel line connections. It is recommended to inspect the fuel tank and lines for debris or damage before installation. Follow all manufacturer instructions and safety precautions during replacement.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. The FG0423 part undergoes rigorous testing to ensure reliable operation under standard conditions. This standard replacement fuel pump module assembly comes with a limited warranty covering defects in materials and workmanship, providing confidence in its long-term functionality for Dodge Ram 1500 applications.
