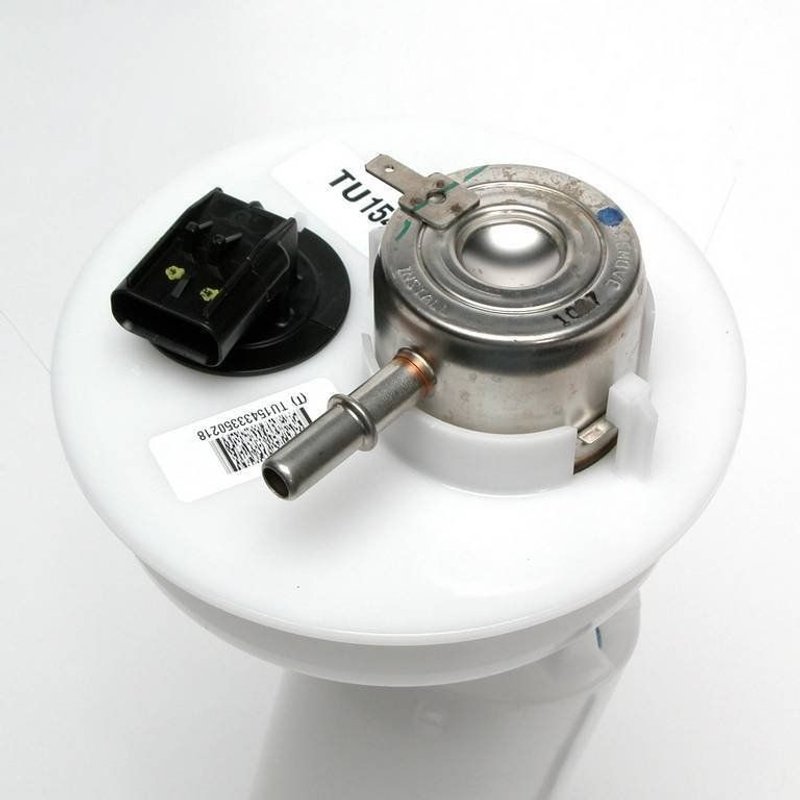

Delphi FG0426 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0426 fuel pump module assembly is designed for reliable fuel delivery in Chrysler, Dodge, and Plymouth Neon vehicles. This in-tank electric fuel pump module ensures consistent fuel pressure and flow for optimal engine performance.

• Outlet outside diameter: 0.375 inches
• Voltage: 12.0 volts
• Fuel type: Gasoline compatible
• Includes fuel pressure regulator and gasket seal
• Maximum pressure rating: 94 psi
• Blade-type terminals, 4 male terminals
• External strainer with inlet strainer included
• Quick connect outlet with one outlet port
• Includes fuel level sender assembly with float arm
• Average current draw: 13 amps, flow rating: 20 GPH
• Standard replacement grade for direct fit

Detailed Product Description

The Delphi FG0426 fuel pump module assembly is engineered as a direct replacement for the fuel pump system in Chrysler, Dodge, and Plymouth Neon models. This electric in-tank pump operates at 12 volts and is designed to deliver a consistent fuel flow rate of 20 gallons per hour, maintaining system pressure at 58 psi with a maximum capability of 94 psi. The assembly includes a built-in fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump features a 0.375-inch outlet diameter with a quick connect outlet type for secure and efficient fuel line connection. Four male blade terminals ensure reliable electrical connectivity, while the external strainer and inlet strainer protect the pump from debris, enhancing longevity and performance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chrysler Neon
• Dodge Neon
• Plymouth Neon

It is designed specifically for gasoline fuel systems and fits models requiring an in-tank electric fuel pump with integrated fuel level sending capabilities.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Low fuel pressure leading to poor engine performance or hesitation
• Fuel pump noise or overheating from worn internal components
• Fuel contamination causing clogging or pump failure

Installation Notes and Tips

When installing the Delphi FG0426 fuel pump module assembly, ensure the following:

• Disconnect the vehicle battery before beginning installation to prevent electrical hazards
• Use the included gasket or seal to prevent fuel leaks at the mounting surface
• Verify the orientation of the float arm for accurate fuel level readings
• Check all electrical connections for secure fitment on the four blade terminals
• Inspect the fuel lines and quick connect outlet for proper engagement and no damage

Quality Assurance and Warranty

Delphi manufactures this fuel pump module assembly to meet standard replacement grade specifications, ensuring compatibility and reliable operation in specified Neon models. The product includes a fuel pressure regulator and strainer components to maintain system integrity. While specific warranty details may vary, Delphi typically offers coverage against manufacturing defects to support product reliability and customer confidence.
