Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

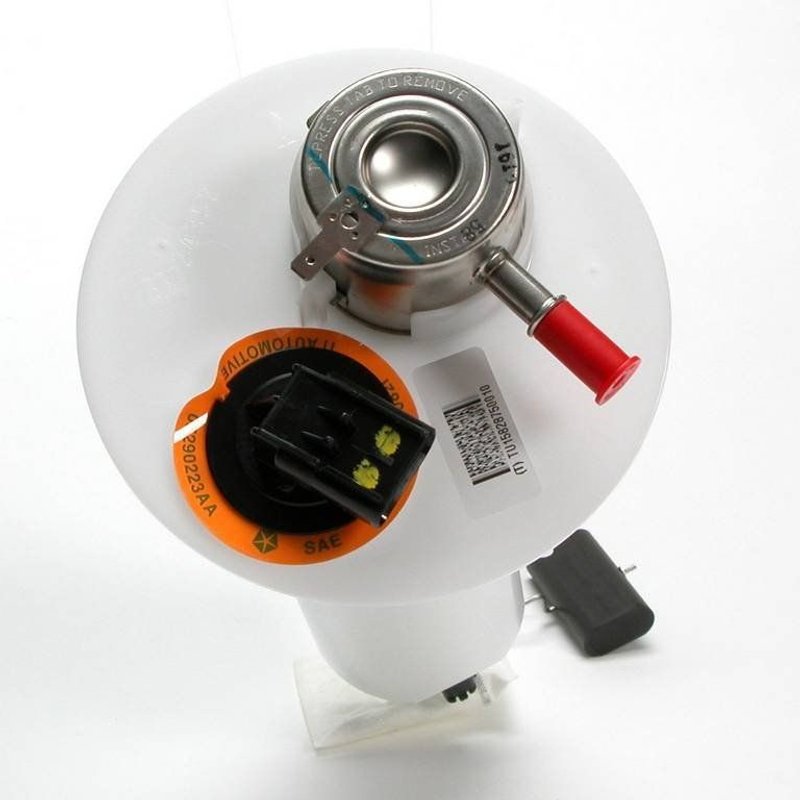

Delphi FG0430 Fuel Pump Module Assembly
| Brand | Delphi FG0430 |
|---|---|
| Average Current Draw | 13 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 94.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 115.0 |
| Resistance Ohms Full | 1010.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Dodge · 3 vehicles |
Standard replacement. Built as a fuel pump module assembly for straightforward service.
OE heritage. Backed by Delphi's century of OE experience and supplier know-how.
Includes key components. Comes with a regulator, strainer, seal, and fuel level sender assembly.
Cross-references Airtex Fuel Pumps E7142M, Carter P76227M and MAHLE 67740 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Fuel Pump Module Assembly for Dodge Neon
Restore fuel delivery with this Delphi fuel pump module assembly, part number FG0430. It is a standard replacement in-tank electric fuel pump for gas applications and includes the fuel level sender assembly, regulator, strainer, gasket or seal, and float arm for a complete service solution.
Compatible with 2003-2005 Dodge Neon, this Delphi FG0430 fuel pump module assembly is built from OE-focused engineering knowledge and backed by Delphi’s long history supplying original equipment to major automakers. It is a direct-fit choice for drivers addressing fuel pressure or fuel delivery concerns on the Dodge Neon.
Key Features
- Delphi FG0430 fuel pump module assembly for gas-powered vehicles
- In-tank electric pump with quick-connect outlet
- Includes fuel level sender assembly and float arm
- Regulator included for system integration
- Strainer and gasket or seal included
- 12-volt design with 58 psi system pressure and 94 psi maximum pressure
- Standard replacement part for OE-style service
Detailed Description
The Delphi FG0430 is a fuel pump module assembly engineered for in-tank installation and consistent fuel delivery. It features a 12-volt electric pump, blade terminals, a male terminal design, and a single quick-connect outlet with a 0.375-inch outside diameter. The assembly also includes the fuel level sender, which helps restore accurate fuel gauge operation when replacing a worn module.
For 2003-2005 Dodge Neon applications, this fuel pump module assembly supports proper fuel system performance with an average flow rating of 32 and average current draw of 13. Delphi FG0430 is a practical replacement when the original module shows signs of wear, pressure loss, or sender-related issues. This part cross-references Airtex Fuel Pumps E7142M and Carter P76227M for the same application.
Common Issues This Part Can Address
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Fuel gauge inaccuracy from a worn sender assembly
- Loss of pressure from a failing in-tank pump module
- Fuel system service needs on a 2003-2005 Dodge Neon
Installation Notes and Tips
Before installation, clean the fuel tank thoroughly to reduce the risk of future seal problems, especially on Dodge Neon applications. Verify electrical connector style, outlet configuration, and tank fitment before removal of the original module. Replace the seal during service and confirm the fuel system primes correctly after installation.
Quality Assurance
Delphi draws on OE heritage and decades of fuel system experience, with aftermarket parts informed by original equipment development and broad vehicle coverage. FG0430 is built as a standard replacement fuel pump module assembly for dependable service on the listed Dodge Neon applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Dodge | Neon | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Dodge | Neon | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Dodge | Neon | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
