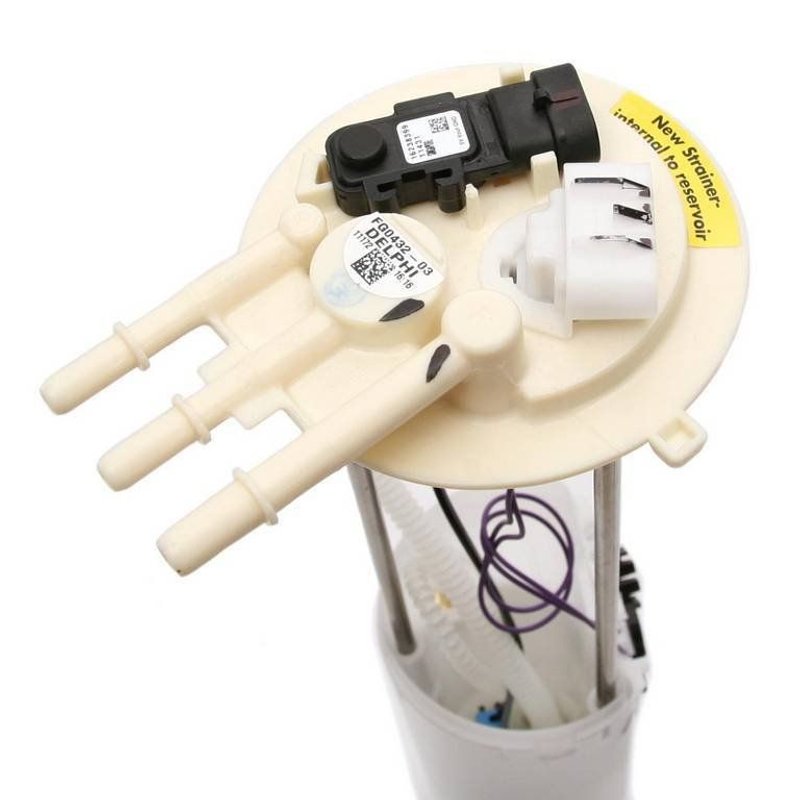

Delphi FG0432 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet S10 and GMC Sonoma

The Delphi FG0432 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet S10 and GMC Sonoma models. This electric fuel pump module ensures consistent fuel delivery with integrated components to maintain optimal engine performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 65 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Quick connect outlet type with 0.375 inch outside diameter for secure fuel line attachment
• Four male blade terminals for reliable electrical connections
• Comes with gasket/seal and splice kit for proper installation
• Compatible with gasoline fuel systems and designed for in-tank mounting
• Average flow rating of 18 gallons per hour and system pressure of 62 psi
• Includes vapor pressure sensor to support emissions control systems

Technical Details and Features

The Delphi FG0432 fuel pump module assembly operates at 12 volts and is engineered to deliver a steady fuel flow rate of 18 gallons per hour, maintaining system pressure at 62 psi. Its electric pump type is optimized for gasoline fuel systems, featuring an internal strainer inlet and quick connect outlets with a 0.375 inch diameter. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel gauge readings. The four male blade terminals ensure secure electrical connections, while the included gasket and splice kit facilitate a proper and leak-free installation. Additionally, the vapor pressure sensor supports the vehicle’s evaporative emissions system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Chevrolet S10 and GMC Sonoma models requiring an in-tank electric fuel pump. It is designed as a standard replacement part for fuel delivery systems in these vehicles.

• Resolves fuel delivery interruptions and inconsistent engine performance
• Addresses fuel gauge inaccuracies due to faulty sender assemblies
• Replaces worn or damaged fuel pump modules causing low fuel pressure
• Helps correct vapor pressure sensor faults affecting emissions control
• Eliminates fuel leaks by providing a new gasket and secure connections

Installation Notes and Tips

When installing the Delphi FG0432 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and cleaned. Use the included gasket and splice kit to secure connections and prevent leaks. Verify that the four blade terminals are correctly connected to avoid electrical issues. The quick connect outlets simplify fuel line attachment, but confirm a tight fit to maintain system pressure. Follow vehicle-specific service manuals for safe removal and installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG0432 fuel pump module assembly to meet standard replacement part specifications, ensuring reliable performance and durability. The product includes a fuel level sender assembly and vapor pressure sensor to maintain OEM functionality. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
