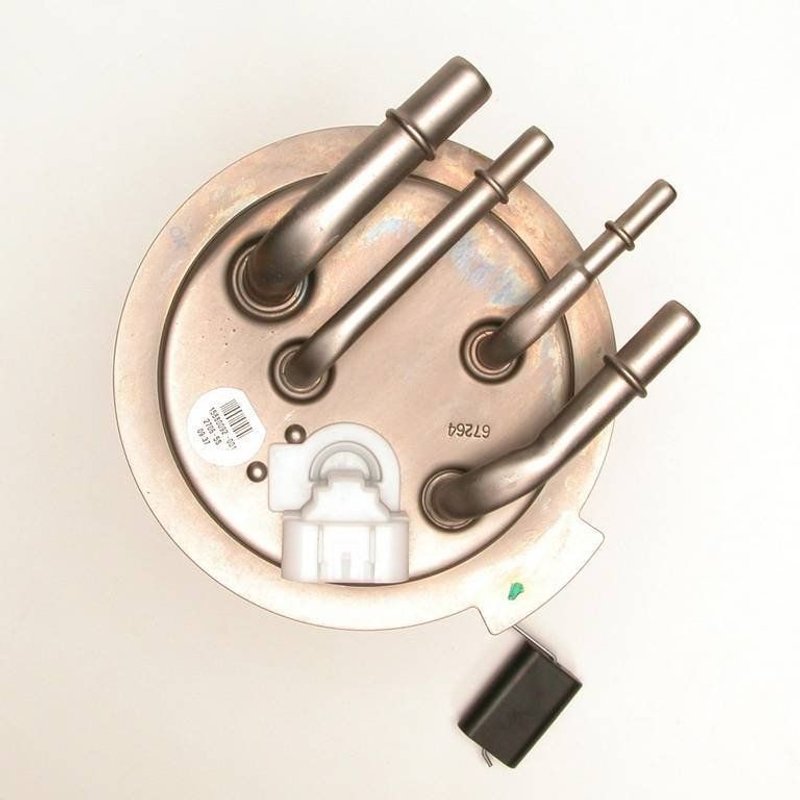

Delphi FG0434 Fuel Transfer Unit

Reliable Fuel Transfer Unit for Chevrolet Express 3500 and GMC Savana 3500

The Delphi FG0434 fuel transfer unit is designed specifically for diesel-powered Chevrolet Express 3500 and GMC Savana 3500 models. This in-tank fuel pump assembly ensures consistent fuel delivery and accurate fuel level readings for your vehicle's diesel system.

• Compatible with Chevrolet Express 3500 and GMC Savana 3500 diesel models
• In-tank fuel transfer unit with internal strainer and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect fittings
• Includes gasket and seal for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• Standard replacement grade for dependable performance

Detailed Product Features and Specifications

The Delphi FG0434 fuel transfer unit is engineered for diesel fuel systems requiring precise fuel delivery and monitoring. Featuring an internal strainer inlet and an internal strainer to prevent contaminants from entering the fuel system, this unit maintains fuel cleanliness and pump longevity. The fuel level sender assembly is included, providing accurate fuel gauge readings. The unit has four male blade terminals, ensuring secure electrical connections, and a quick connect outlet type with four outlets, each measuring 0.375 inches in diameter. This assembly does not include a regulator or vapor pressure sensor but comes with a gasket or seal to ensure a tight fit within the fuel tank.

Applications and Common Issues Addressed

• Replacement for faulty or worn fuel transfer units in Chevrolet Express 3500 and GMC Savana 3500 diesel models
• Resolves inconsistent fuel delivery or engine performance issues related to fuel pump failure
• Fixes inaccurate fuel level readings caused by malfunctioning sender assemblies
• Prevents fuel contamination by utilizing an internal strainer
• Addresses electrical connection problems with blade-type terminals

Installation Notes and Tips

Installation of the Delphi FG0434 fuel transfer unit requires access to the in-tank fuel pump assembly. Ensure the vehicle's fuel system is depressurized before removal. The included gasket or seal must be properly seated to prevent leaks. Verify that the four blade terminals are correctly connected to avoid electrical faults. Use the quick connect outlets for secure fuel line attachment. Follow the vehicle manufacturer's service manual for detailed removal and installation procedures.

Quality Assurance and Warranty Information

Delphi manufactures the FG0434 fuel transfer unit to meet standard replacement grade specifications, ensuring reliable operation within the fuel system of Chevrolet Express 3500 and GMC Savana 3500 diesel vehicles. This product includes a fuel level sender assembly and internal strainer to maintain system integrity. Warranty coverage details should be confirmed at the point of purchase, as Delphi typically offers limited warranties on fuel system components.
