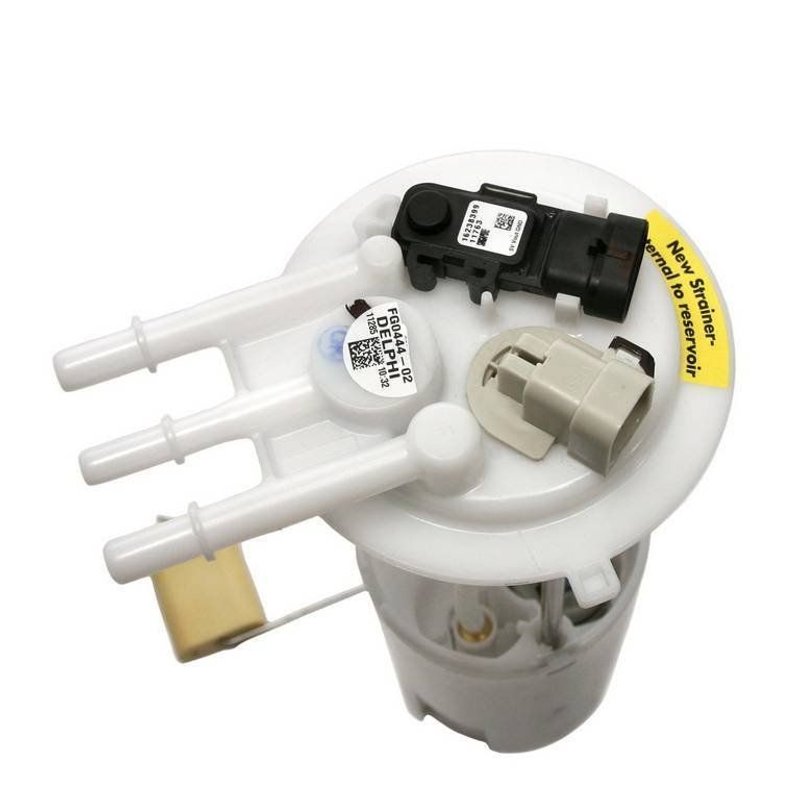

Delphi FG0444 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Pontiac Grand Prix

The Delphi FG0444 fuel pump module assembly is designed specifically for Pontiac Grand Prix models requiring a reliable in-tank fuel delivery solution. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance.

• 12.0 Volt electric fuel pump with integrated regulator
• In-tank design with internal strainer and fuel level sender assembly included
• Maximum pressure rating of 80 psi and system pressure of 58 psi
• Quick connect outlet type with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connections
• Includes gasket, seal, and splice kit for installation
• Compatible with gasoline fuel systems
• Average flow rating of 17 gallons per hour and average current draw of 9 amps
• Vapor pressure sensor integrated for emissions control

Technical Details and Features

The Delphi FG0444 fuel pump module assembly is engineered for precise fuel delivery in Pontiac Grand Prix vehicles. Featuring a 12-volt electric pump, it maintains a system pressure of 58 psi with a maximum pressure capacity of 80 psi. The module includes an internal strainer at the inlet to prevent contaminants from entering the fuel system, and a quick connect outlet with a 0.375 inch diameter for efficient fuel flow. The assembly comes with four male pin terminals, ensuring reliable electrical connections. Additionally, the fuel level sender assembly and vapor pressure sensor are integrated to provide accurate fuel level readings and support emissions compliance.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Pontiac Grand Prix models
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Addresses fuel delivery interruptions due to clogged strainers or faulty regulators
• Fixes inaccurate fuel gauge readings with included fuel level sender assembly
• Supports emissions system functionality with vapor pressure sensor integration

Installation Notes and Tips

Installation of the Delphi FG0444 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket and seal should be replaced to prevent leaks. Use the provided splice kit for secure electrical connections to the four-pin male terminals. Verify all connections are tight and the quick connect outlets are properly seated. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Pontiac Grand Prix. It undergoes rigorous testing to ensure durability and performance under normal operating conditions. The product includes a limited warranty covering defects in materials and workmanship. Refer to Delphi’s warranty policy for detailed terms and conditions.
