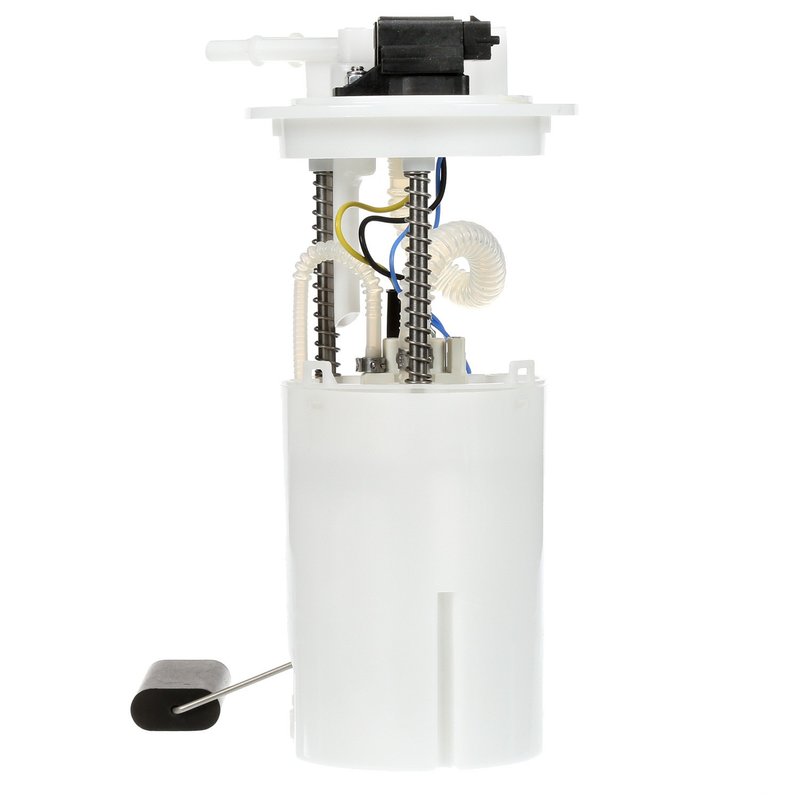

Delphi FG0467 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Saturn Vehicles

The Delphi FG0467 fuel pump module assembly is designed specifically for Saturn L100, L200, L300, LW200, and LW300 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• Compatible with gasoline fuel type
• Includes fuel level sender assembly with float arm
• External strainer inlet type with included strainer
• Quick connect outlet with 0.375 inch outside diameter
• Three male blade terminals for secure electrical connection
• System pressure rated at 44 psi with maximum pressure of 97 psi
• Includes gasket or seal for proper installation
• Vapor pressure sensor integrated for emissions control

Technical Details and Features

The Delphi FG0467 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, supporting two outlet connections. The pump draws an average current of 6 amps and delivers an average flow rating of 37 liters per hour, maintaining system pressure at 44 psi and a maximum pressure of 97 psi. The assembly includes a fuel level sender assembly with a float arm, providing accurate fuel level readings with resistance values ranging from 250 ohms when empty to 20 ohms when full. The three male blade terminals ensure reliable electrical connections, and the included gasket or seal helps prevent leaks during installation. Additionally, the vapor pressure sensor supports emissions system functionality.

Compatible Saturn Models and Applications

This fuel pump module assembly is compatible with the following Saturn models: L100, L200, L300, LW200, and LW300. It is designed as a standard replacement part for these vehicles, ensuring proper fit and function within the original fuel delivery system.

• Resolves fuel delivery interruptions and engine stalling
• Addresses inaccurate fuel level readings or gauge malfunctions
• Replaces noisy or failing electric fuel pumps
• Fixes fuel leaks caused by worn seals or gaskets
• Supports emissions compliance with integrated vapor pressure sensor

Installation Notes and Tips

Installation of the Delphi FG0467 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the three male blade terminals provided. Replace the included gasket or seal to prevent fuel leaks. Verify the quick connect outlets are securely attached to the fuel lines. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty

Delphi manufactures the FG0467 as a standard replacement fuel pump module assembly, meeting OEM specifications for fit, form, and function. The product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as warranty terms may vary.
