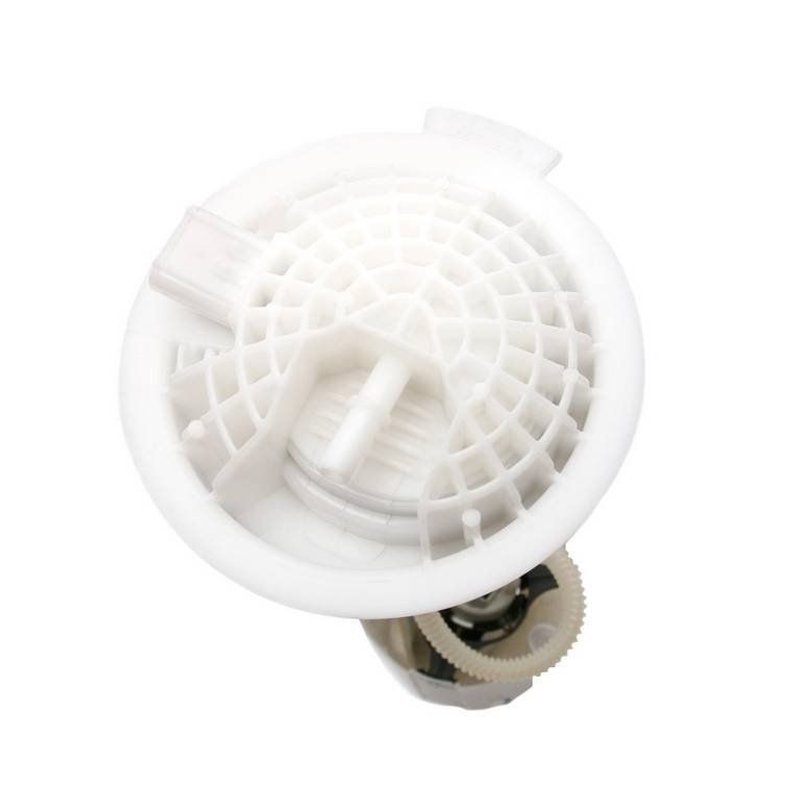

Delphi FG0473 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Delphi FG0473 fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance in gas-powered vehicles.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Maximum system pressure of 65 psi with a regulated pressure of 58 psi
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for reliable electrical connections
• Average flow rating of 21 gallons per hour and average current draw of 11 amps
• Standard replacement grade with included float arm, seal, and instruction sheet

Technical Details and Features

The Delphi FG0473 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems. It features an internal strainer inlet and a quick connect outlet designed for a 0.375 inch outside diameter fuel line. The pump includes a regulator to maintain a maximum pressure of 65 psi and a system pressure of 58 psi, ensuring steady fuel flow to the engine. The assembly comes with four male blade terminals for secure electrical connections and a fuel level sender assembly to provide accurate fuel gauge readings. The internal resistance varies from 220 ohms when empty to 20 ohms when full, supporting efficient current draw averaging 11 amps during operation. This electric pump module is intended for in-tank installation, providing a compact and reliable fuel delivery solution.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge Ram 1500
• Dodge Ram 2500
• Dodge Ram 3500

It is designed to replace the original fuel pump module in gas-powered Dodge Ram trucks, ensuring proper fuel delivery and system pressure for smooth engine operation.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Low fuel pressure resulting in poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Fuel contamination due to damaged or missing internal strainer

Installation Notes and Tips

Installation of the Delphi FG0473 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the gasket and seal included in the package are properly seated to prevent leaks. Use caution when disconnecting and reconnecting the four blade terminals, verifying correct polarity and secure connections. The quick connect outlet simplifies fuel line attachment, but confirm the 0.375 inch diameter matches your vehicle’s fuel line. Follow the included instruction sheet carefully to avoid damage to the float arm and sender assembly during installation.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part meeting OEM specifications for fit, form, and function. The product includes a gasket, internal strainer, and fuel level sender assembly to ensure reliable operation. While specific warranty details may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
