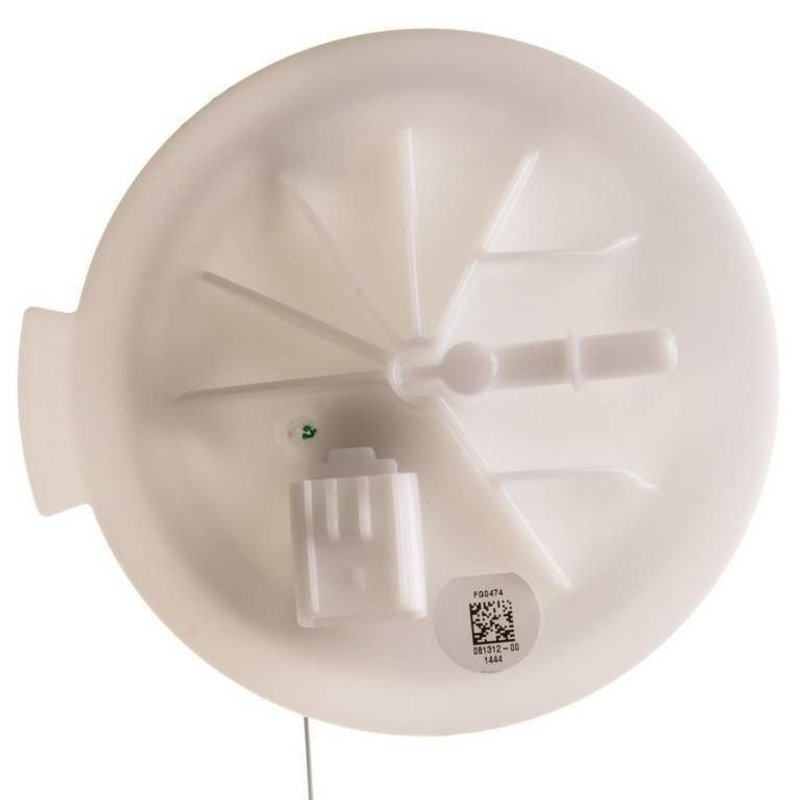

Delphi FG0474 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Delphi FG0474 fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gasoline engines, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Dodge Ram 1500, 2500, and 3500 models
• 12.0 Volt operation with a maximum pressure of 65 psi and system pressure of 58 psi
• Includes regulator, internal strainer, gasket, and fuel level float arm
• Blade-type male terminals with four connections for secure wiring
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG0474 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal electric pump with an average flow rating of 21 liters per hour and an average current draw of 11 amps. The module includes a built-in fuel pressure regulator maintaining system pressure at 58 psi, with a maximum pressure rating of 65 psi. The fuel outlet uses a quick connect fitting with a 0.375 inch outside diameter, facilitating straightforward installation. The assembly also incorporates an internal strainer at the inlet to prevent debris from entering the fuel system, and a fuel level sender assembly with resistance values ranging from 220 ohms (empty) to 20 ohms (full) for accurate fuel gauge readings. The four blade-type male terminals provide secure electrical connections without the need for a lock ring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Dodge models:

• Dodge Ram 1500
• Dodge Ram 2500
• Dodge Ram 3500

It is designed for in-tank installation in gasoline-powered Dodge Ram trucks, serving as a direct replacement for the original fuel pump module to restore proper fuel delivery and fuel level sensing.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Low fuel pressure resulting in poor engine performance or hesitation
• Fuel pump noise or failure from worn internal components
• Clogged fuel inlet strainer affecting fuel flow

Installation Notes and Tips

Installation of the Delphi FG0474 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The included gasket and strainer should be properly seated to prevent leaks and contamination. Use the quick connect outlet fitting for secure fuel line attachment. Verify electrical connections to the four blade terminals are tight and corrosion-free. Follow vehicle-specific service manual instructions for safe and correct installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for fit, form, and function. This standard replacement grade part includes a fuel level sender assembly and necessary seals to ensure reliable operation. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier for exact warranty details.
