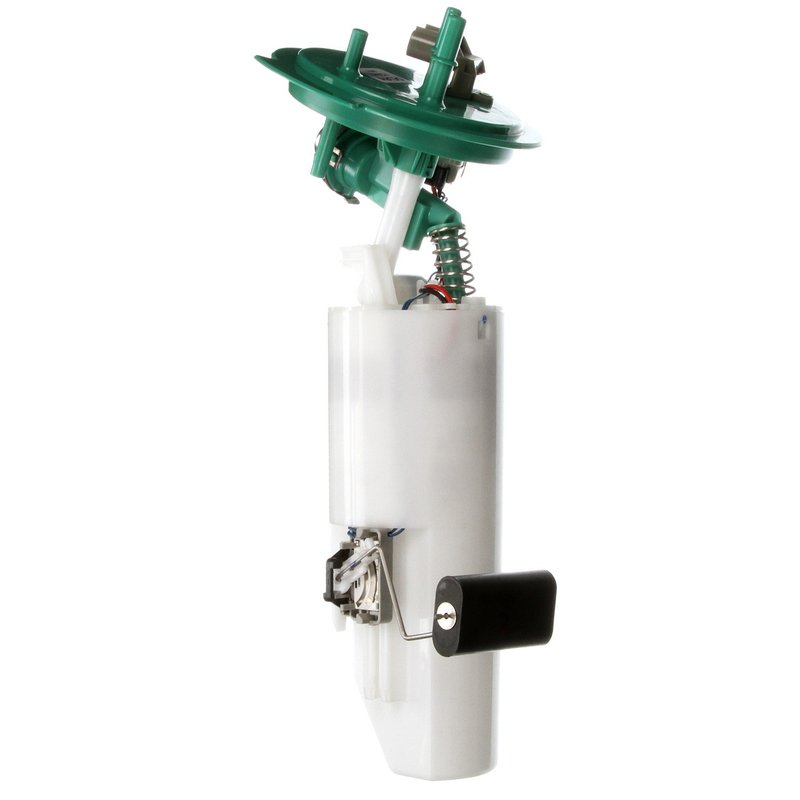

Delphi FG0483 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chrysler and Dodge Vehicles

The Delphi FG0483 fuel pump module assembly is designed specifically for select Chrysler and Dodge models, including the Caravan, Grand Caravan, Town & Country, and Voyager. This in-tank electric fuel pump ensures consistent fuel delivery and pressure for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gas fuel systems at 12V operation
• Includes regulator, gasket, and external strainer for efficient fuel filtration
• Quick connect outlet with 0.375 inch outside diameter and dual outlet ports
• Blade-type male terminals with four connections for secure wiring
• Designed for system pressure of 58 psi and maximum pressure of 80 psi
• Standard replacement grade with included seal and instruction sheet

Technical Details and Features

The Delphi FG0483 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an external strainer inlet type and a quick connect outlet type with two outlet ports, each measuring 0.375 inches in outside diameter. The module includes a built-in fuel pressure regulator and a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump draws an average current of 11 amps and delivers an average flow rating of 24 liters per hour, maintaining system pressure at 58 psi and a maximum pressure of 80 psi. The electrical connections use four blade-type male terminals, ensuring reliable connectivity. This assembly is designed as an in-tank pump for seamless integration with the vehicle's fuel system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following Chrysler and Dodge models:

• Chrysler Caravan
• Chrysler Grand Caravan
• Chrysler Town & Country
• Dodge Voyager

It is intended for use in gasoline-powered vehicles requiring a standard replacement fuel pump module assembly that includes a fuel level sender and regulator.

Common Issues Addressed by Delphi FG0483

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure inconsistencies causing engine performance problems
• Clogged or damaged fuel strainer affecting fuel flow
• Electrical connection failures from worn or corroded terminals

Installation Notes and Tips

When installing the Delphi FG0483 fuel pump module assembly, ensure the following:

• Verify vehicle compatibility with Chrysler Caravan, Grand Caravan, Town & Country, or Dodge Voyager models
• Use the included gasket or seal to prevent fuel leaks
• Handle the float arm carefully to avoid damage to the fuel level sender
• Confirm all blade terminals are securely connected and free of corrosion
• Follow the provided instruction sheet for proper installation procedures

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance and durability. The FG0483 is a standard replacement grade part that includes a fuel pressure regulator and fuel level sender assembly. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
