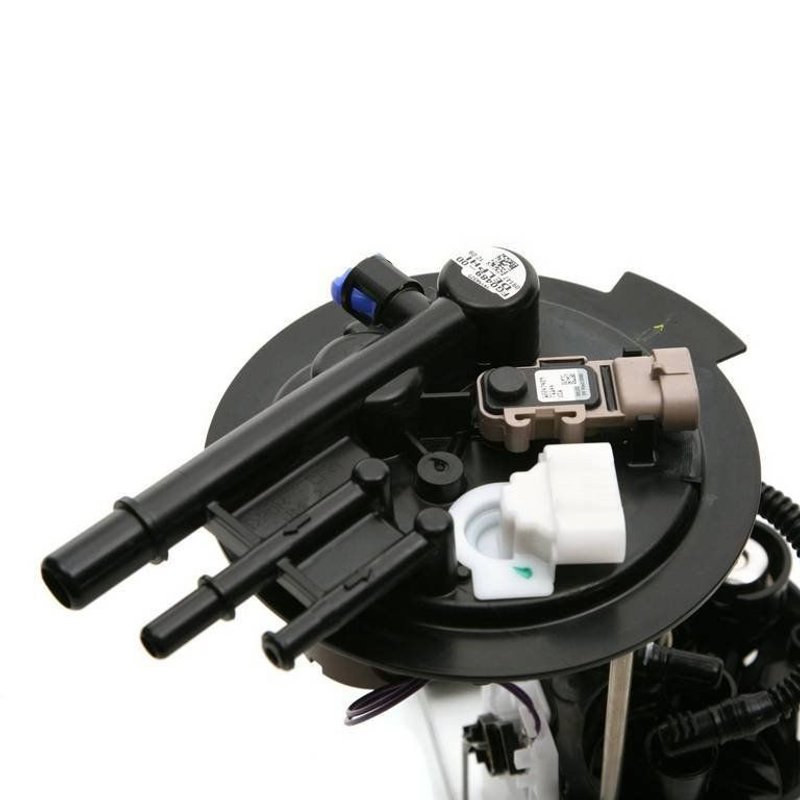

Delphi FG0489 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick, Chevrolet, and Saturn

The Delphi FG0489 fuel pump module assembly is designed to provide consistent fuel delivery for select Buick, Chevrolet, and Saturn models. Engineered for in-tank installation, this electric fuel pump module ensures precise fuel pressure and flow to maintain optimal engine performance.

• Compatible with Buick Relay, Chevrolet Uplander, and Saturn Terraza
• 12.0 Volt electric pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Internal strainer and quick connect outlet for efficient fuel filtration and connection
• Comes with gasket/seal and instruction sheet for proper installation
• Blade-type male terminals with four connections for secure wiring
• Supports flex fuel types with a system pressure of 52 psi
• Average flow rating of 24 and average current draw of 8 amps
• Regulator and vapor pressure sensor included for fuel system stability

Technical Overview of Delphi FG0489 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0489) is an electric in-tank pump designed to meet the fuel delivery requirements of Buick Relay, Chevrolet Uplander, and Saturn Terraza vehicles. The module features a 0.375-inch outlet outside diameter and three quick connect outlets to facilitate efficient fuel flow. The internal strainer helps prevent contaminants from entering the fuel system, while the included regulator maintains a maximum pressure of 80 psi to ensure consistent fuel supply. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard.

Common Applications and Problem Resolution

• Replaces failing or noisy fuel pumps in Buick Relay, Chevrolet Uplander, and Saturn Terraza
• Resolves fuel delivery issues causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Addresses fuel pressure drops affecting engine performance
• Eliminates fuel contamination problems with internal strainer inclusion

Installation Notes and Tips

Installation of the Delphi FG0489 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure the gasket or seal included is properly seated to prevent leaks. The blade-type male terminals with four connections should be securely attached to the vehicle wiring harness. Use the instruction sheet provided for step-by-step guidance. Verify that the quick connect outlets are firmly connected to the fuel lines to avoid fuel leaks. It is recommended to inspect the fuel tank for debris before installation to prolong pump life.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM specifications for reliable performance and durability. This standard replacement part undergoes rigorous testing to ensure consistent fuel pressure and flow. The FG0489 assembly includes a regulator and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed at the point of purchase, as they may vary by distributor.
