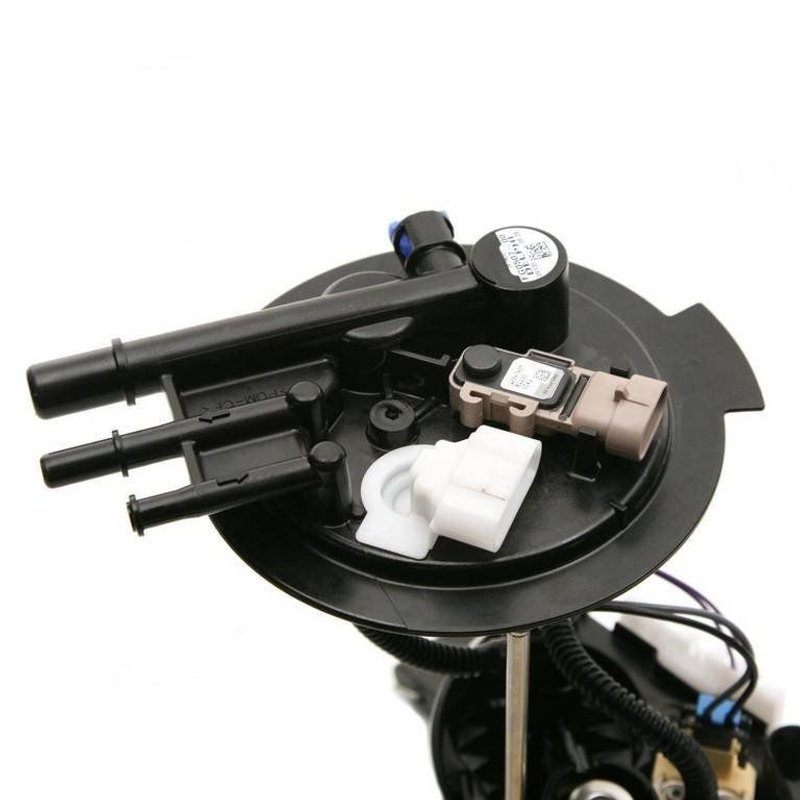

Delphi FG0507 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Impala and Monte Carlo

The Delphi FG0507 fuel pump module assembly is designed to provide consistent fuel delivery and accurate fuel level readings for Chevrolet Impala and Monte Carlo models. This in-tank electric fuel pump module ensures proper fuel system pressure and compatibility with flex fuel applications.

Key Features of Delphi FG0507 Fuel Pump Module

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates at 12.0 volts with an average current draw of 10 amps
• Includes regulator and vapor pressure sensor for optimal fuel pressure control (up to 80 psi max)
• Equipped with a 4-terminal blade connector with male terminals for secure electrical connections
• Internal strainer and fuel level sender assembly included for clean fuel delivery and accurate tank readings
• Quick connect outlet type with three outlets for efficient fuel flow
• Compatible with flex fuel systems, supporting various fuel blends
• Standard replacement grade with included gasket/seal and instruction sheet for installation

Detailed Description of the Delphi FG0507 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0507) is engineered for in-tank installation in Chevrolet Impala and Monte Carlo vehicles. The electric pump provides an average flow rating of 22 gallons per hour, maintaining system pressure at 58 psi to meet engine fuel demands. The integrated regulator and vapor pressure sensor help maintain consistent fuel pressure and emissions control. The module features a durable internal strainer to prevent contaminants from entering the fuel system, while the included fuel level sender assembly ensures accurate fuel gauge readings. The 4-terminal blade connector with male terminals supports reliable electrical connections, and the quick connect outlet design simplifies fuel line attachment. Designed for flex fuel compatibility, this module supports ethanol blends and other alternative fuels commonly used in these Chevrolet models.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Impala and Monte Carlo
• Resolves inconsistent fuel pressure or engine hesitation due to faulty pump modules
• Fixes inaccurate fuel gauge readings caused by defective fuel level sender assemblies
• Addresses fuel delivery problems in flex fuel vehicles requiring compatible components
• Prevents fuel contamination with the included internal strainer

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Impala and Monte Carlo models before installation
• Follow included instruction sheet carefully for proper sealing and electrical connections
• Use the supplied gasket or seal to prevent fuel leaks during installation
• Verify all electrical terminals are securely connected to avoid pump malfunction
• Check fuel lines for proper quick connect fittings to ensure leak-free operation

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0507 module undergoes rigorous testing to ensure reliable performance and durability in demanding automotive environments. This standard replacement part includes a warranty that covers defects in materials and workmanship, providing confidence in your purchase and long-term vehicle operation.
