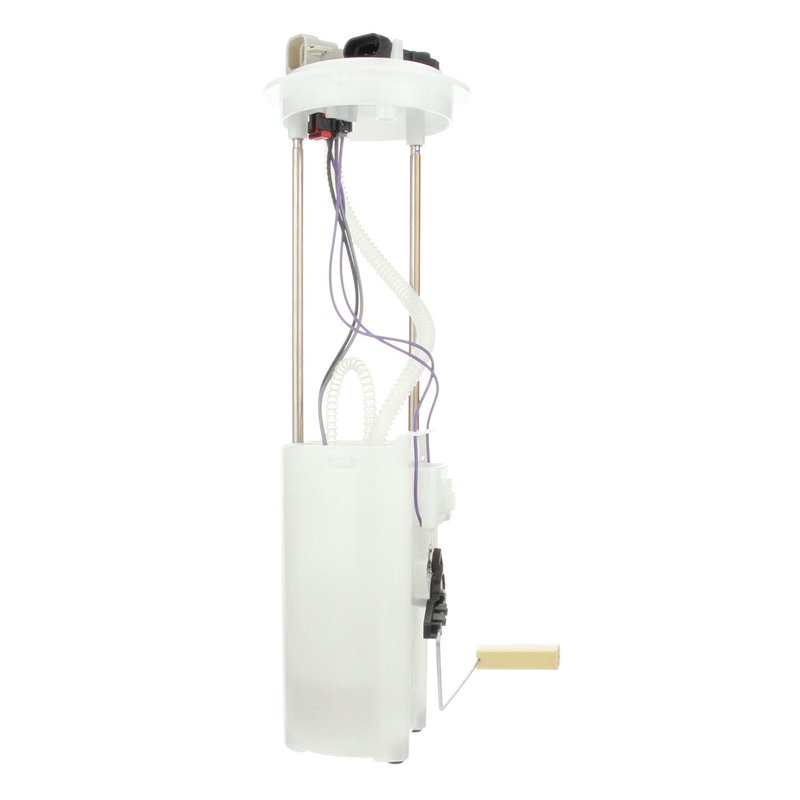

Delphi FG0508 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Isuzu Amigo and Rodeo Sport

The Delphi FG0508 fuel pump module assembly is designed specifically for Isuzu Amigo and Rodeo Sport models. This electric in-tank fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with internal strainer included
• Fuel level sender assembly with float arm included
• Quick connect outlet type with 0.375 inch outside diameter
• Maximum pressure rating of 109 psi and system pressure of 44 psi
• Three male pin terminals for secure electrical connection
• Compatible with gasoline fuel type
• Includes vapor pressure sensor for emissions control

Detailed Product Features and Specifications

The Delphi FG0508 fuel pump module assembly is engineered to meet the fuel delivery requirements of Isuzu Amigo and Rodeo Sport vehicles. Operating at 12 volts, this electric pump provides an average flow rating of 23 liters per hour and maintains system pressure at 44 psi, with a maximum pressure capacity of 109 psi. The module features an internal strainer inlet and a quick connect outlet with a 0.375 inch outside diameter, ensuring efficient fuel flow and filtration. It includes a fuel level sender assembly with a float arm for accurate fuel gauge readings. The pump has three male pin terminals for reliable electrical connections and draws an average current of 5 amps. Additionally, the vapor pressure sensor integrated into the module supports proper emissions management.

Compatible Vehicles and Applications

• Designed for Isuzu Amigo models requiring a standard replacement fuel pump module
• Compatible with Isuzu Rodeo Sport vehicles needing an in-tank electric fuel pump assembly
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure or inaccurate fuel gauge readings
• Suitable for gasoline-powered engines requiring a 12-volt electric fuel pump

Installation Notes and Tips

When installing the Delphi FG0508 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and cleaned to prevent contamination. The module’s quick connect outlets simplify fuel line connections, but verify secure fittings to avoid leaks. Electrical connections should be made to the three male pin terminals as specified. Since the assembly does not include a gasket or lock ring, reuse the original components or source compatible replacements. Follow the vehicle manufacturer’s service manual for safe removal and installation procedures.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0508 is a standard replacement grade part, tested for durability and performance under typical operating conditions. This product includes a fuel level sender assembly and vapor pressure sensor to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
