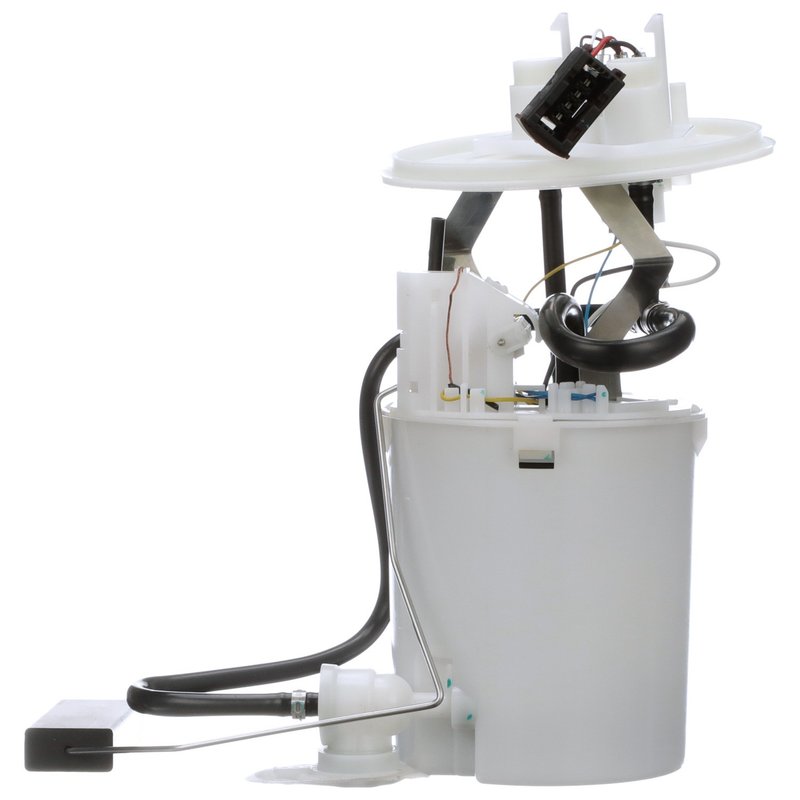

Delphi FG0512 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Saab 9-5

The Delphi FG0512 fuel pump module assembly is designed specifically for Saab 9-5 models, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with essential components included for a straightforward replacement.

Key Features of Delphi FG0512 Fuel Pump Module

• Electric fuel pump with 12V operation suitable for gasoline engines
• Includes fuel level sender assembly with float arm for precise fuel measurement
• In-tank design with external strainer and female quick connect outlets (two outlets, 0.5 inch diameter)
• Comes with gasket, seal, and lock ring for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• System pressure rated at 44 psi with a maximum pressure of 105 psi
• Average flow rating of 32 liters per hour and average current draw of 12 amps

Detailed Description of the Delphi FG0512 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0512) is engineered for the Saab 9-5 to maintain optimal fuel delivery and system pressure. The module features an electric pump designed to operate at 12 volts, compatible with gasoline fuel systems. It includes an external strainer inlet and two female quick connect outlets, ensuring efficient fuel flow and filtration. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The package contains all necessary installation components such as a gasket, seal, and lock ring, facilitating a secure and leak-free fit inside the fuel tank.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Saab 9-5 vehicles
• Resolves inconsistent fuel pressure or delivery problems
• Fixes inaccurate fuel gauge readings due to faulty sender units
• Addresses fuel leaks caused by worn seals or gaskets in the fuel pump module
• Restores proper electrical connections with blade-type terminals

Installation Notes and Tips

• Ensure the vehicle is safely lifted and the fuel tank is accessible before installation
• Disconnect the battery to prevent electrical hazards during replacement
• Use the included lock ring and gasket to secure the module and prevent leaks
• Verify terminal connections match the blade-type male terminals on the module
• Follow Saab 9-5 specific service manual instructions for fuel pump module removal and installation

Quality Assurance and Warranty

The Delphi FG0512 fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for the Saab 9-5. It undergoes rigorous testing to ensure durability and consistent performance under normal operating conditions. This product includes a limited warranty covering defects in materials and workmanship, providing confidence in its reliability and fitment.
