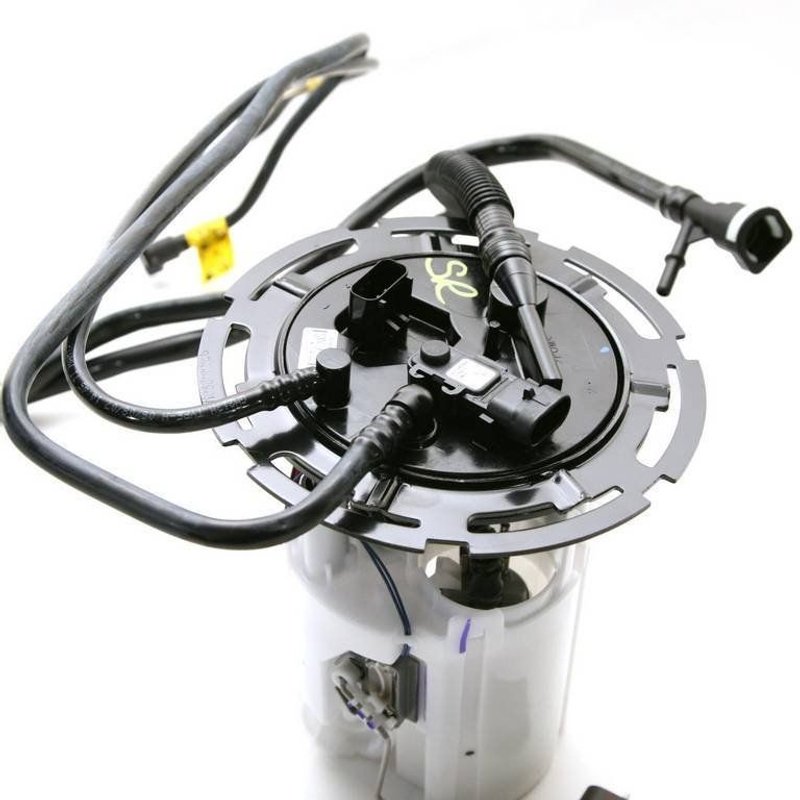

Delphi FG0514 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Saab 9-3

The Delphi FG0514 fuel pump module assembly is designed specifically for the Saab 9-3, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with integrated components tailored to your vehicle's fuel system requirements.

Key Features of Delphi FG0514 Fuel Pump Module

• 12.0 Volt electric fuel pump designed for gasoline fuel systems
• In-tank installation with internal strainer for efficient fuel filtration
• Includes fuel level sender assembly with float arm for precise fuel measurement
• Female quick connect outlet with 0.375 inch outside diameter and three outlets
• Pin-type male terminals with three connections for secure electrical interface
• Maximum pressure rating of 80 psi and system pressure of 44 psi for stable fuel delivery
• Includes gasket/seal and strainer to ensure leak-free operation and clean fuel supply
• Average current draw of 16 amps and flow rating of 32 (units consistent with OEM specs)
• Vapor pressure sensor integrated for emissions control compatibility

Detailed Description

The Delphi FG0514 fuel pump module assembly is engineered to meet the specific fuel delivery needs of the Saab 9-3. This standard replacement part features an electric pump that operates at 12 volts and is designed for gasoline fuel types. The module is installed inside the fuel tank, which helps reduce noise and improves fuel system efficiency. It includes an internal strainer inlet to prevent contaminants from entering the fuel system and a female quick connect outlet with three ports to ensure proper fuel flow. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The pump’s electrical connections use pin-type male terminals with three terminals, ensuring compatibility with the vehicle’s wiring harness. With a maximum pressure of 80 psi and a system pressure of 44 psi, this fuel pump module maintains consistent fuel delivery under various operating conditions. Additionally, the integrated vapor pressure sensor supports emissions system functionality.

Common Applications and Issues Resolved

• Replacement for failing or noisy fuel pumps in Saab 9-3 models
• Fixes inaccurate fuel gauge readings due to faulty fuel level sender
• Resolves fuel delivery interruptions caused by clogged or damaged internal strainers
• Addresses electrical connection issues with secure pin-type terminals
• Improves fuel system pressure stability for smoother engine performance

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before beginning installation
• Handle the fuel pump module carefully to avoid damaging the internal strainer or float arm
• Replace the included gasket/seal to prevent fuel leaks during reassembly
• Verify terminal connections match the vehicle’s wiring harness for proper electrical function
• Follow the Saab 9-3 service manual instructions for safe removal and installation procedures

Quality Assurance and Warranty

The Delphi FG0514 fuel pump module assembly is manufactured to meet OEM specifications for the Saab 9-3. It undergoes rigorous testing to ensure durability, proper fuel flow, and accurate fuel level readings. This standard replacement part includes a gasket and strainer to maintain system integrity. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for detailed warranty information.
