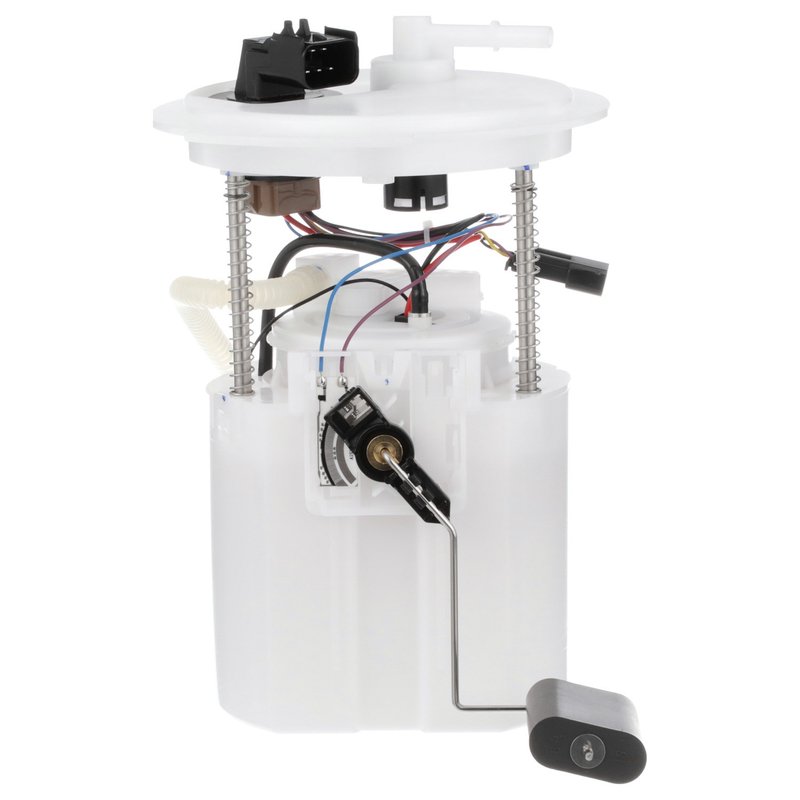

Delphi FG0784 Fuel Pump Module Assembly - Left
| Brand | Delphi FG0784 |
|---|---|
| Position | Left |
| Average Current Draw | 10 |
| Average Flow Rating | 22 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 1050.0 |
| Resistance Ohms Full | 70.0 |
| Strainer Included | Yes |
| System Pressure | 58 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Chrysler · 6 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete assembly. Includes regulator, strainer, seal, and fuel level sender.
Cross-references Airtex Fuel Pumps E7194M, Carter P76254M and Four Seasons 67686 for the same application. See all 11.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG0784 Fuel Pump Module Assembly
Delphi FG0784 is an in-tank fuel pump module assembly for gasoline applications, built with OE heritage and application knowledge drawn from Delphi’s long history supplying major automakers. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and a quick-connect outlet for a direct replacement on select vehicles.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- Includes fuel level sender assembly and float arm
- Regulator included for system pressure control
- Strainer and gasket or seal included
- Quick-connect outlet with one outlet connection
- 12-volt design with male pin terminals
- Standard replacement for the left side
- Maximum pressure rating of 80.0 and system pressure of 58 psi
Detailed Description
Delphi FG0784 fuel pump module assembly is engineered for the left-side primary fuel tank on select Chrysler Pacifica models from 2004 to 2006. This fuel pump module assembly is built for in-tank installation and includes the components needed for fuel delivery and fuel level reporting in one service part. Delphi’s OE background is reflected in the module design, which supports consistent fuel delivery, sender operation, and pressure regulation for the application.
This part cross-references Airtex Fuel Pumps E7194M and Carter P76254M for the same application. Delphi FG0784 is also referenced by part number CFG0784 in interchange listings.
Common Issues This Part Can Address
- Hard starting caused by weak or inconsistent fuel delivery
- Engine stalling from low fuel pressure
- Inaccurate fuel gauge readings from a worn sender
- Fuel pump noise from an aging in-tank module
- Driveability problems related to a failing primary fuel tank pump
Installation Notes and Tips
Fits 2004-2006 Chrysler Pacifica, left. This module installs in the fuel tank and uses a quick-connect outlet with pin terminals. Before installation, clean the fuel tank thoroughly; fuel tank contamination is a leading cause of premature pump failure. Delphi recommends using fuel tank cleaning kit FC01 before replacing the pump module.
Quality Assurance
Delphi builds this standard replacement fuel pump module assembly using OE experience and application-specific knowledge developed over decades of supplying the automotive industry. The package contents include the fuel pump module assembly with float arm, seal, and instruction sheet.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2006 | Chrysler | Pacifica | — | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2006 | Chrysler | Pacifica | Touring | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2006 | Chrysler | Pacifica | Limited | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2006 | Chrysler | Pacifica | Base | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2005 | Chrysler | Pacifica | — | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2004 | Chrysler | Pacifica | — | Left | Primary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
