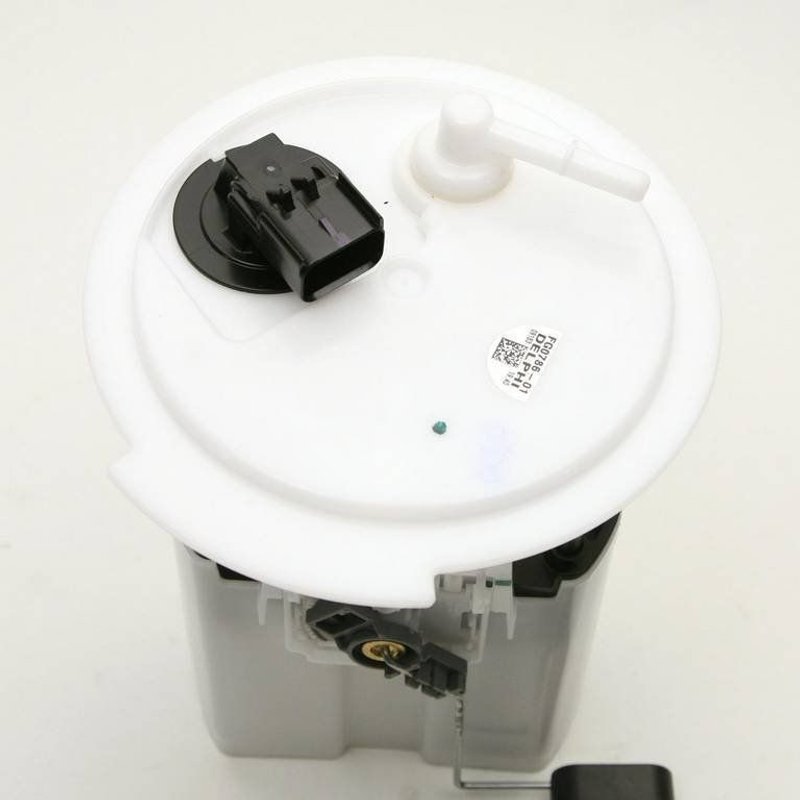

Delphi FG0786 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Chrysler Pacifica

The Delphi FG0786 fuel pump module assembly is designed specifically for Chrysler Pacifica models, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal engine performance and fuel efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Compatible with gasoline fuel systems
• Includes regulator and internal strainer for clean fuel flow
• Quick connect outlet with 0.375 inch outside diameter
• Standard replacement grade with gasket and seal included
• Designed for left-side tank position with six male pin terminals
• System pressure rated at 58 psi with maximum pressure of 80 psi
• Average flow rating of 22 liters per hour and average current draw of 10 amps

Detailed Product Description

The Delphi FG0786 fuel pump module assembly is engineered for use in Chrysler Pacifica vehicles requiring a reliable in-tank fuel delivery solution. This electric pump operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet type, ensuring efficient fuel filtration and secure connection. The module includes a fuel level sender assembly with resistance values ranging from 220 ohms (empty) to 20 ohms (full), providing accurate fuel gauge readings. The assembly comes with a gasket and seal to maintain a proper fit and prevent leaks. With six male pin terminals, it offers secure electrical connections. The pump maintains a system pressure of 58 psi and can handle a maximum pressure of 80 psi, supporting consistent fuel flow and engine performance.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump modules in Chrysler Pacifica
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with secure pin terminals

Installation Notes and Tips

Installation of the Delphi FG0786 fuel pump module assembly should be performed with the fuel tank partially drained and the vehicle safely supported. Ensure the gasket and seal are properly seated to prevent leaks. Verify the orientation of the module for the left-side tank position and confirm all six male pin terminals are securely connected. Use appropriate tools for the quick connect outlet to avoid damage. Follow the included instruction sheet for detailed installation steps and safety precautions.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is a standard replacement part manufactured to meet OEM specifications for Chrysler Pacifica vehicles. It undergoes rigorous testing to ensure durability and reliable performance. The product includes a warranty that covers defects in materials and workmanship, providing confidence in its long-term operation.
