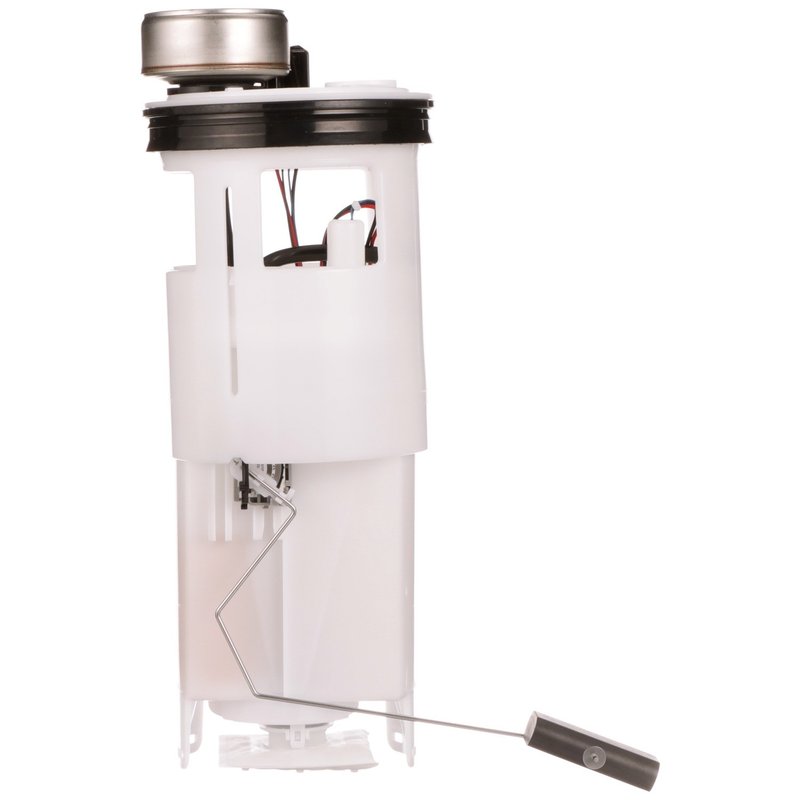

Delphi FG0813 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram Trucks

The Delphi FG0813 fuel pump module assembly is designed specifically for Dodge Ram 1500, Ram 2500, and Ram 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for optimal engine performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Equipped with an external strainer and quick connect outlet (0.375 inch diameter)
• Regulator and gasket/seal included for secure installation
• Blade-type male terminals with four connections for reliable electrical contact
• Average flow rating of 33 and system pressure of 49 psi for steady fuel supply

Technical Details and Features

The Delphi FG0813 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet and a quick connect outlet, ensuring efficient fuel flow and filtration. The module includes a built-in regulator to maintain system pressure up to 80 psi and a fuel level sender assembly with a float arm for precise fuel level monitoring. The four blade-type male terminals provide secure electrical connections, while the included gasket and seal help prevent leaks during installation. This standard replacement part offers an average current draw of 15 amps and a resistance range from 220 ohms (empty) to 20 ohms (full), supporting consistent pump operation.

Compatible Dodge Ram Models

This fuel pump module assembly is compatible with Dodge Ram 1500, Ram 2500, and Ram 3500 trucks. It is engineered to meet the specific fuel delivery requirements of these models, ensuring proper fit and function without modification.

Common Applications and Problem Resolution

• Restores fuel delivery in trucks experiencing low fuel pressure or engine hesitation
• Replaces faulty fuel level sender assemblies causing inaccurate fuel gauge readings
• Addresses fuel pump failures resulting in engine stalling or no-start conditions
• Eliminates fuel leaks with included gasket and seal components
• Improves fuel filtration with the external strainer to protect the fuel system

Installation Notes and Tips

Installation of the Delphi FG0813 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is parked on a level surface and the battery is disconnected before beginning. Carefully transfer the float arm and fuel level sender assembly if necessary. Use the included gasket and seal to prevent leaks and verify all electrical connections are secure with the blade-type terminals. Follow the vehicle manufacturer’s torque specifications for the fuel pump module retaining ring (note: lock ring not included). After installation, check for proper fuel pressure and gauge operation before completing the job.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG0813 is a standard replacement part backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi products typically include coverage against defects in materials and workmanship to provide confidence in your purchase.
