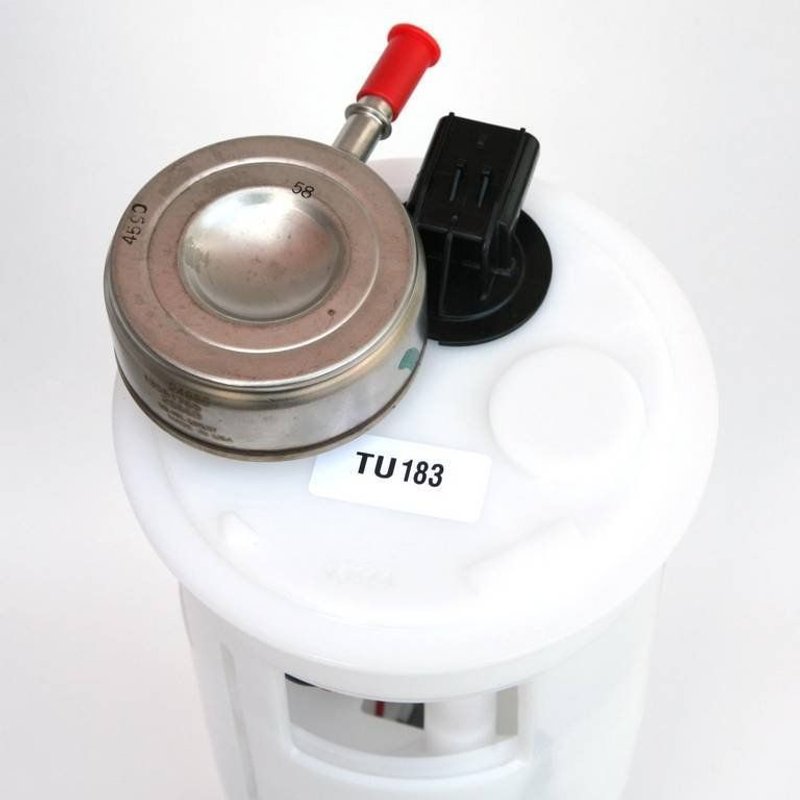

Delphi FG0814 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Dodge Ram 2500 and 3500

The Delphi FG0814 fuel pump module assembly is designed specifically for Dodge Ram 2500 and Ram 3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and pressure regulation for gas-powered engines, supporting optimal vehicle performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 80 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Equipped with an external strainer and quick connect outlet (0.375 inch diameter)
• Regulator and gasket/seal included for secure installation
• Four male blade terminals for reliable electrical connections
• Average flow rating of 35 and system pressure of 58 psi

Technical Details and Features

The Delphi FG0814 fuel pump module assembly is engineered as a standard replacement part for Dodge Ram 2500 and Ram 3500 trucks running on gasoline. It operates at 12 volts and features a blade terminal type with four male terminals, ensuring compatibility with factory wiring harnesses. The pump includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating efficient fuel flow and easy installation.

This module assembly comes with a built-in fuel level sender assembly, providing accurate fuel level readings. The included regulator maintains system pressure at 58 psi, while the pump itself can handle a maximum pressure of 80 psi. The average current draw is 15 amps, and the pump delivers an average flow rating of 35, supporting the fuel demands of heavy-duty Dodge Ram trucks.

Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Dodge Ram 2500 and 3500 gas engines
• Solves issues related to inconsistent fuel pressure and delivery
• Addresses inaccurate fuel level readings due to faulty sender assemblies
• Eliminates fuel pump noise and electrical connection problems
• Prevents engine performance issues caused by clogged or damaged strainers

Installation Notes and Tips

Installation of the Delphi FG0814 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is safely supported and the fuel system is depressurized before beginning. The included gasket and seal should be replaced during installation to prevent leaks. Verify that the four male blade terminals align correctly with the vehicle’s wiring harness. The quick connect outlet simplifies fuel line attachment, but confirm a secure fit to avoid fuel leaks.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Dodge Ram 2500 and Ram 3500 models. The product includes a fuel level sender assembly and necessary seals to ensure reliable operation. While specific warranty details vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
