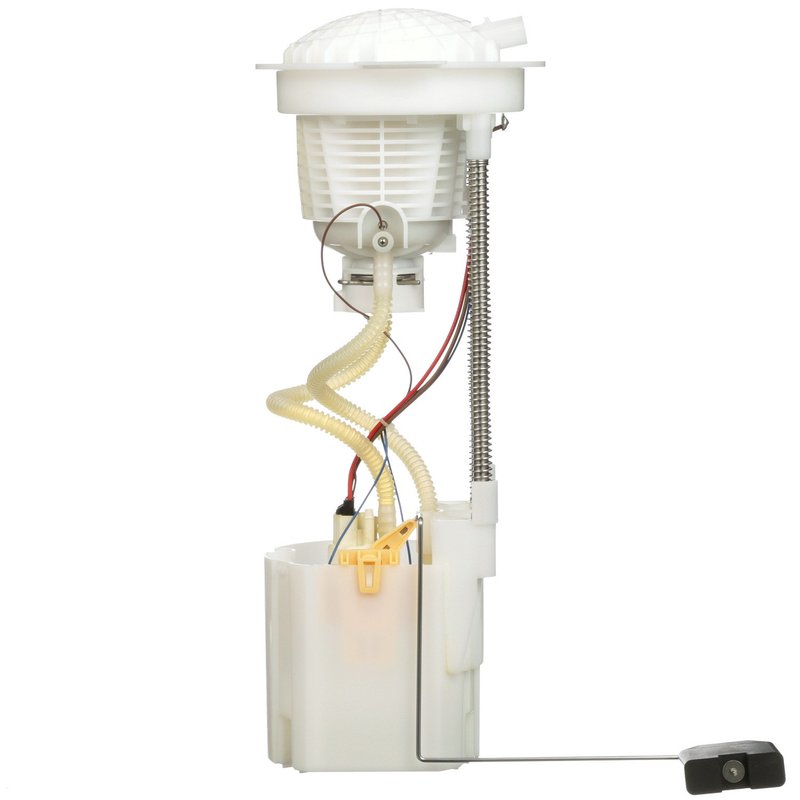

Delphi FG0817 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Dodge Ram 1500

The Delphi FG0817 fuel pump module assembly is designed specifically for Dodge Ram 1500 models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module ensures optimal engine performance and fuel efficiency.

Key Features of Delphi FG0817 Fuel Pump Module

• 12.0 Volt electric fuel pump with integrated regulator
• Maximum pressure rating of 65 psi and system pressure of 58 psi
• Includes fuel level sender assembly with float arm for accurate fuel measurement
• Internal strainer inlet and quick connect outlet (0.375 inch diameter)
• Four male blade terminals for secure electrical connections
• Comes with gasket/seal and strainer for proper installation and filtration
• Standard replacement grade suitable for Dodge Ram 1500 fuel systems

Detailed Description of the Delphi FG0817 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0817) is an in-tank electric pump designed for gasoline fuel systems in Dodge Ram 1500 trucks. It features an internal strainer inlet to prevent debris from entering the pump, and a quick connect outlet with a 0.375-inch outside diameter for efficient fuel delivery. The module includes a built-in fuel pressure regulator maintaining system pressure at 58 psi, with a maximum pressure capacity of 65 psi. The four male blade terminals provide reliable electrical connections, supporting an average current draw of 13 amps and an average flow rating of 21 gallons per hour. The fuel level sender assembly with float arm is integrated to provide accurate fuel level readings. This assembly comes complete with a gasket and seal to ensure a proper fit and prevent leaks during installation.

Common Applications and Issues Addressed

• Replacement for faulty or failing fuel pump modules in Dodge Ram 1500
• Resolves low fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel gauge readings due to faulty sender assembly
• Eliminates fuel delivery interruptions from clogged or damaged strainers
• Addresses electrical connection issues with secure blade terminals

Installation Notes and Tips

• Ensure compatibility with Dodge Ram 1500 model year before installation
• Use the included gasket and seal to prevent fuel leaks
• Handle the float arm carefully to avoid damage during installation
• Verify electrical connections are secure on the four blade terminals
• Follow vehicle manufacturer’s service manual for fuel system safety precautions

Quality Assurance and Warranty Information

The Delphi FG0817 fuel pump module assembly is manufactured to meet standard replacement quality requirements for Dodge Ram 1500 fuel systems. It undergoes rigorous testing to ensure consistent fuel flow, pressure regulation, and electrical performance. This part includes a fuel level sender assembly and strainer to maintain system integrity. Warranty coverage details should be confirmed with the parts distributor or vehicle manufacturer.
