Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

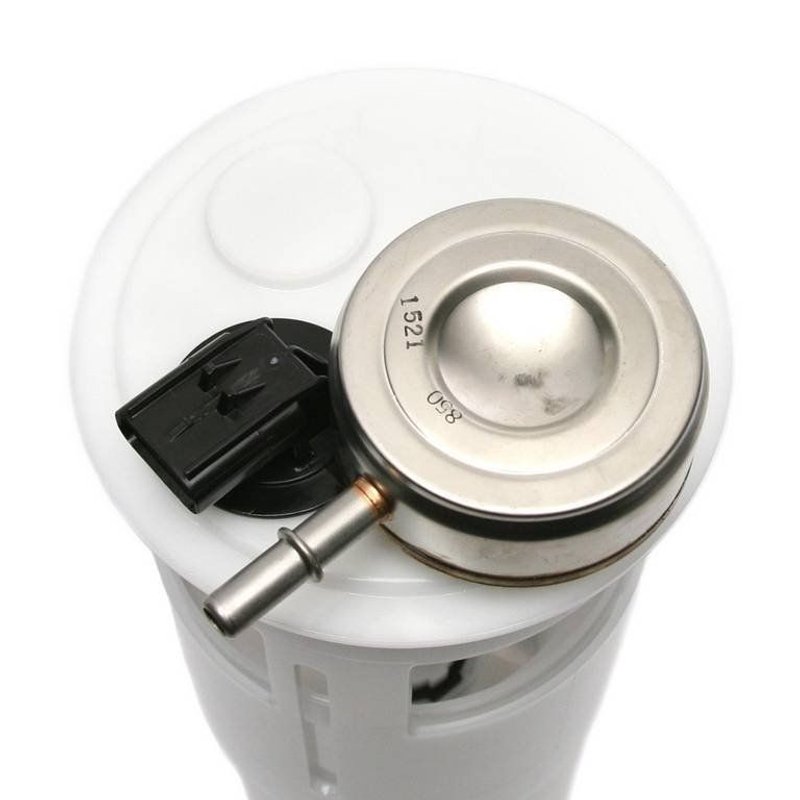

Delphi FG0819 Fuel Pump Module Assembly
| Brand | Delphi FG0819 |
|---|---|
| Average Current Draw | 15 |
| Average Flow Rating | 33 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 80.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | Yes |
| Resistance Ohms Empty | 220.0 |
| Resistance Ohms Full | 20.0 |
| Strainer Included | Yes |
| System Pressure | 49 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Dodge · 3 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete assembly. Includes regulator, strainer, seal, and fuel level sender.
Cross-references Bosch 67706, Carter P76572M and Spectra Premium SP7158M for the same application. See all 16.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG0819 Fuel Pump Module Assembly
Delphi FG0819 is an in-tank electric fuel pump module assembly for gasoline applications, built with OE heritage and application knowledge drawn from Delphi’s long history supplying automakers. It includes the fuel level sender assembly, regulator, strainer, gasket or seal, and a quick-connect outlet for a direct replacement on select 2003 Dodge Ram 1500, Ram 2500, and Ram 3500 trucks.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- 12.0-volt operation with a maximum pressure rating of 80.0
- System pressure rated at 49 psi for the listed applications
- Fuel level sender assembly included with 220.0 ohms empty and 20.0 ohms full resistance
- Regulator included for integrated fuel delivery control
- Strainer and gasket or seal included for service replacement
- Quick-connect outlet with 0.375-inch outside diameter
- Standard replacement grade for select Dodge Ram fuel system service
Detailed Description
Delphi FG0819 is a standard replacement fuel pump module assembly engineered for in-tank installation on gasoline vehicles. It is listed for 2003 Dodge Ram 1500, 2003 Dodge Ram 2500, and 2003 Dodge Ram 3500 applications, making it a focused choice for Ram fuel pump replacement service where the original module has failed or fuel delivery has become inconsistent. The assembly uses a blade terminal design with four terminals, a male terminal gender, and an electric pump type with an average current draw of 15 and an average flow rating of 33. Delphi’s OE background is reflected in the integrated module design, which combines the pump, sender, regulator, and strainer into one service part. This part number, FG0819, also cross-references Bosch 67706 for the same application.
Common Issues This Part Can Help Resolve
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery interruption
- Incorrect fuel gauge readings from a worn sender assembly
- Fuel starvation under load in a failing in-tank pump module
- Fuel system service needs after tank contamination or debris buildup
Installation Notes and Tips
Before installing FG0819 on a 2003 Dodge Ram 1500, clean the fuel tank thoroughly; Delphi notes that tank contamination is a leading cause of premature pump failure, and a cleaning kit is recommended for the 34-gallon tank application. For 2003 Dodge Ram 2500 and 2003 Dodge Ram 3500 service, clean the tank before installation to reduce the risk of seal problems and repeat failure. Verify connector style, outlet type, and fuel system pressure requirements before installation, and confirm the tank is fully serviced before the new module is installed.
Quality Assurance
Delphi builds this fuel pump module assembly using OE experience and aftermarket application knowledge developed over decades of supplying major automakers. FG0819 is engineered as a direct replacement fuel delivery component for the listed Ram applications and is backed by Delphi’s OE-focused manufacturing approach.
| Year | Make | Model | Body Type | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2003 | Dodge | Ram 1500 | — | — | — | N/A | Fuel tank contamination is the leading cause of premature fuel pump failure; clean the fuel tank before installing a new pump with a 34 Gallon Tank; Use fuel tank cleaning kit FC01. |
| 2003 | Dodge | Ram 2500 | Crew Cab Pickup | GAS | 140.5" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Dodge | Ram 3500 | Crew Cab Pickup | GAS | 140.5" | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| No rows match your filter. | |||||||
