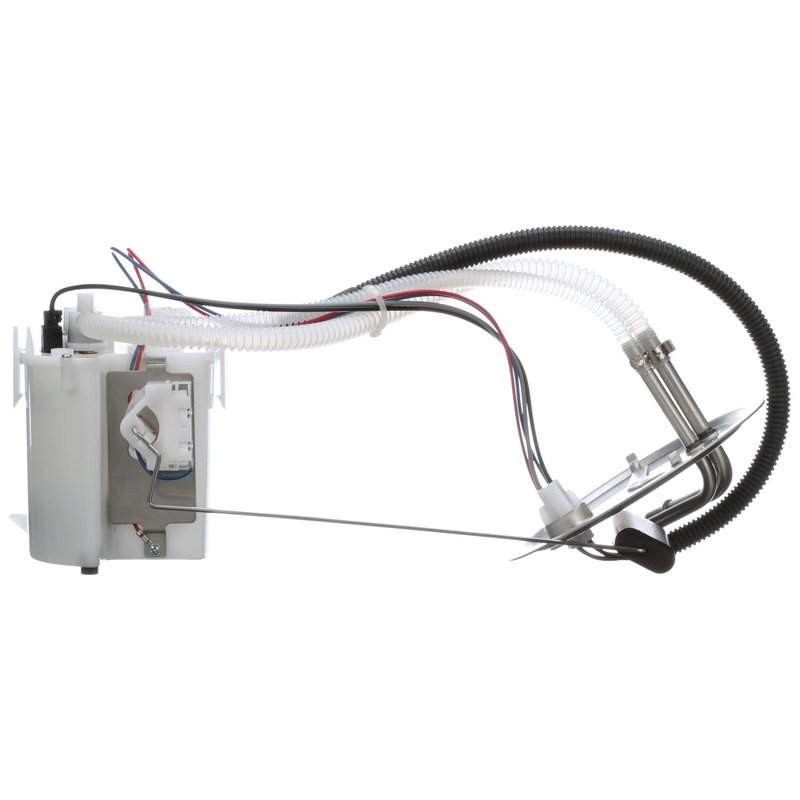

Delphi FG0823 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford Excursion

The Delphi FG0823 fuel pump module assembly is designed specifically for Ford Excursion models requiring reliable in-tank fuel delivery. This electric fuel pump module ensures consistent fuel flow and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with external strainer for fuel filtration
• Includes fuel level sender assembly with float arm
• Quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for secure electrical connection
• Maximum pressure rating of 104 psi and system pressure of 44 psi
• Includes gasket and strainer for proper sealing and filtration
• Compatible with gasoline fuel type

Technical Details and Features

The Delphi FG0823 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems. It features an in-tank electric pump with an external strainer inlet type to protect the pump from contaminants. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The outlet is a quick connect type with a 0.375 inch outside diameter and two outlets for efficient fuel delivery. Electrical connections are made via four male pin terminals, ensuring a secure and reliable connection. The pump has a maximum pressure rating of 104 psi and maintains a system pressure of 44 psi, suitable for the fuel requirements of the Ford Excursion. The assembly comes with a gasket and strainer to ensure proper sealing and filtration within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford Excursion models requiring a standard replacement fuel pump module. It is designed to meet the specific fuel delivery and electrical requirements of these vehicles, making it a suitable replacement part for maintaining proper fuel system operation.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Replaces faulty or worn fuel level sender assemblies for accurate fuel gauge readings
• Addresses fuel pump noise or failure due to clogged strainers or worn components
• Restores proper fuel pressure for improved engine performance
• Prevents fuel leaks with included gasket and proper sealing components

Installation Notes and Tips

When installing the Delphi FG0823 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module from the tank, taking care not to damage the fuel lines or electrical connectors. Verify that the gasket and strainer are properly seated to avoid leaks and contamination. Connect the four male pin terminals securely and confirm the quick connect outlets are firmly attached. Follow the vehicle manufacturer’s torque specifications and safety guidelines during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0823 is a standard replacement grade part designed for durability and reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to the product documentation or supplier for exact warranty terms.
