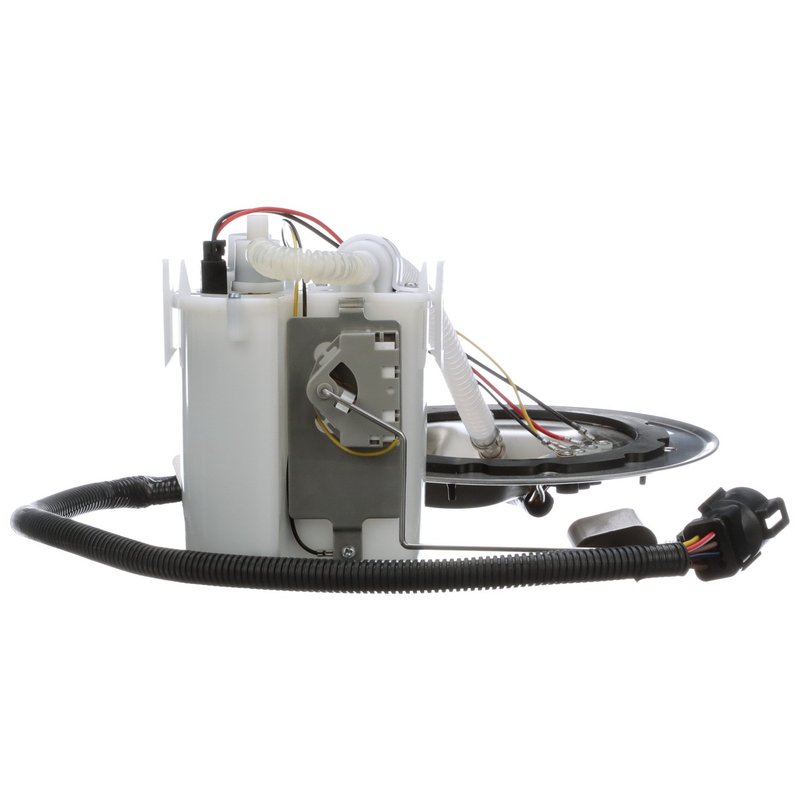

Delphi FG0826 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0826 fuel pump module assembly is designed specifically for Ford Mustang models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports gasoline fuel systems with precise electrical and mechanical specifications.

• Electric fuel pump with 12.0-volt operation
• In-tank design with external strainer inlet
• Fuel level sender assembly included for accurate fuel gauge readings
• Quick connect outlet with 0.375-inch outside diameter
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Seven female pin terminals for secure electrical connections
• Includes gasket and strainer for proper sealing and filtration
• Standard replacement grade for dependable performance

Technical Details and Specifications

The Delphi FG0826 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems in Ford Mustang vehicles. It features a single quick connect outlet with a 0.375-inch outside diameter, ensuring compatibility with factory fuel lines. The pump delivers an average flow rating of 29 gallons per hour and maintains system pressure at 44 psi, with a maximum pressure capacity of 80 psi. The module includes an external strainer inlet to protect the pump from contaminants and a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. Electrical connections are made via seven female pin terminals, supporting a stable current draw averaging 5 amps. The package includes the fuel pump module assembly with float arm, clips, and an instruction sheet for installation guidance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford Mustang models requiring a direct replacement for the FG0826 part number. It is intended for use in gasoline-powered vehicles with in-tank electric fuel pump systems. The module addresses common fuel delivery issues such as inconsistent fuel pressure, inaccurate fuel gauge readings, and fuel pump failure.

• Resolves fuel delivery interruptions and engine stalling
• Corrects inaccurate or fluctuating fuel level gauge readings
• Replaces worn or damaged fuel pump modules to restore proper fuel pressure
• Prevents fuel contamination with included external strainer
• Eliminates electrical connection issues with secure pin terminals

Installation Notes and Tips

Installation of the Delphi FG0826 fuel pump module assembly should be performed with care to avoid damage to the fuel system. Ensure the vehicle’s battery is disconnected before beginning work. Use the included gasket to maintain a proper seal and prevent fuel leaks. Verify that the quick connect outlet is securely attached to the fuel line. Handle the fuel level sender assembly carefully to avoid damaging the float arm. Follow the instruction sheet provided for step-by-step guidance. It is recommended to inspect the fuel tank and clean any debris before installing the new module.

Quality Assurance and Warranty

The Delphi FG0826 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a gasket and strainer to maintain system integrity. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards and are backed by manufacturer support for defects in materials and workmanship.
