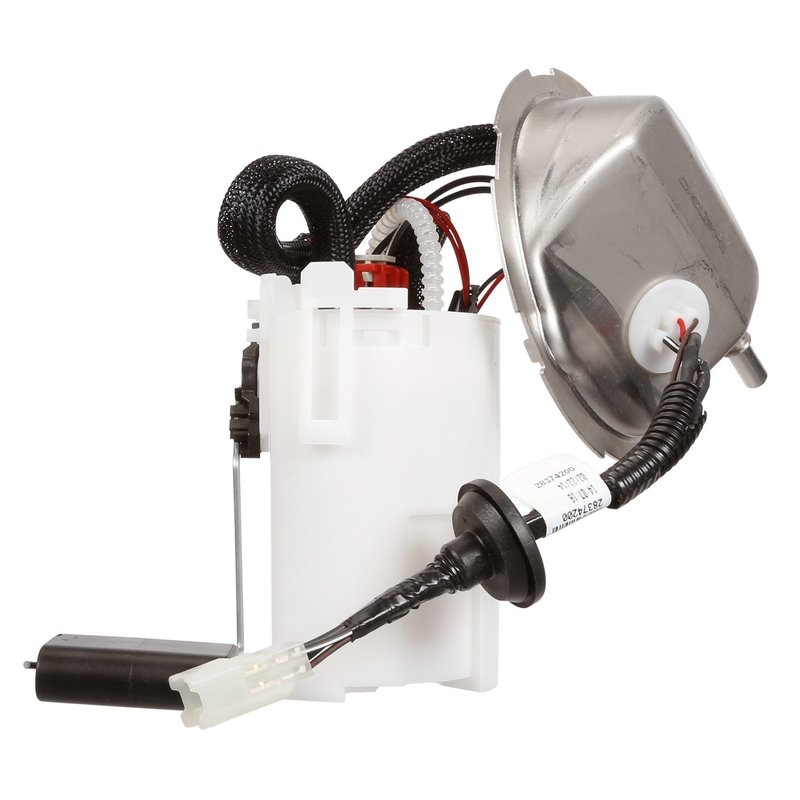

Delphi FG0836 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Escort and Mercury Tracer

The Delphi FG0836 fuel pump module assembly is designed to provide consistent fuel delivery for Ford Escort and Mercury Tracer vehicles. This in-tank electric fuel pump ensures proper fuel flow and pressure to maintain engine performance and efficiency.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems using gasoline fuel
• Includes internal strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Designed for in-tank installation with six male pin terminals
• Average flow rating of 18 gallons per hour and system pressure of 29 psi
• Standard replacement grade with included float arm and instruction sheet

Technical Specifications and Features

The Delphi FG0836 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Ford Escort and Mercury Tracer models. It features an internal strainer inlet and a quick connect outlet type with a 0.375 inch outside diameter, ensuring secure fuel delivery. The pump maintains a maximum pressure of 85 psi and a system pressure of 29 psi, supporting optimal engine operation. The assembly includes six male pin terminals and an internal fuel level sender assembly for accurate fuel gauge readings. The average current draw is 10 amps, with a flow rating of 18 gallons per hour, suitable for standard replacement needs.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Ford Escort and Mercury Tracer vehicles and addresses common fuel system issues such as:

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender units
• Fuel pump noise or reduced flow affecting engine performance
• Leaks or fuel pressure drops from worn seals or connectors
• Electrical connection problems with damaged terminals

Installation Notes and Tips

Installation of the Delphi FG0836 fuel pump module assembly requires removal of the fuel tank for in-tank replacement. Ensure the gasket included is properly seated to prevent leaks. Verify the six male pin terminals align correctly with the vehicle wiring harness. Use the provided instruction sheet for detailed guidance. It is recommended to inspect the fuel strainer and replace if clogged to maintain fuel flow. Always relieve fuel system pressure before beginning installation to avoid hazards.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0836 is a standard replacement grade part designed for reliable operation in Ford Escort and Mercury Tracer vehicles. This product includes a gasket and internal strainer to ensure proper sealing and filtration. While specific warranty terms may vary, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
