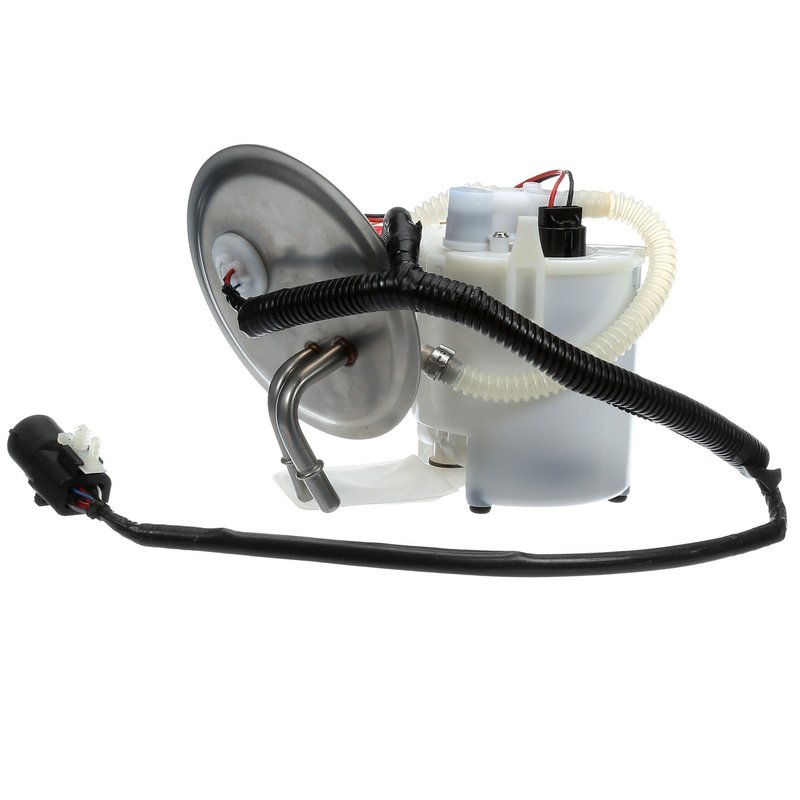

Delphi FG0839 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Taurus and Mercury Sable

The Delphi FG0839 fuel pump module assembly is designed to provide consistent fuel delivery for Ford Taurus and Mercury Sable vehicles. This in-tank electric fuel pump ensures efficient operation with precise fuel flow and pressure control.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford Taurus and Mercury Sable models
• 12.0-volt operation with a maximum pressure of 93 psi
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375-inch outside diameter
• Seven male pin terminals for reliable electrical connections
• Average flow rating of 22 gallons per hour and system pressure of 44 psi

Technical Specifications and Features

The Delphi FG0839 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an external strainer inlet type and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The pump has a resistance range from 15 ohms when empty to 160 ohms when full, with an average current draw of 6 amps. This standard replacement part comes with a gasket or seal and strainer included, ensuring a proper fit and function within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Ford and Mercury vehicles, specifically the Ford Taurus and Mercury Sable models. It is designed for in-tank installation and supports gasoline fuel systems requiring a system pressure of 44 psi. The Delphi FG0839 is suitable for replacing worn or failing fuel pumps in these vehicles to restore proper fuel delivery and engine performance.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate gauge readings
• Eliminates fuel pump noise or failure symptoms
• Prevents fuel system leaks with included gasket and strainer

Installation Notes and Tips

Installation of the Delphi FG0839 fuel pump module assembly requires removal of the fuel tank for in-tank access. Ensure all electrical connections use the seven male pin terminals correctly to avoid connection issues. The included gasket or seal should be properly seated to prevent leaks. Use caution when handling the external strainer and quick connect outlets to maintain system integrity. Follow vehicle-specific service manuals for safe and accurate installation procedures.

Quality Assurance and Warranty

Delphi manufactures the FG0839 fuel pump module assembly to meet standard replacement part specifications. The assembly includes all necessary components such as the float arm, seal, and clips for installation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Refer to Delphi’s official documentation for exact warranty terms.
