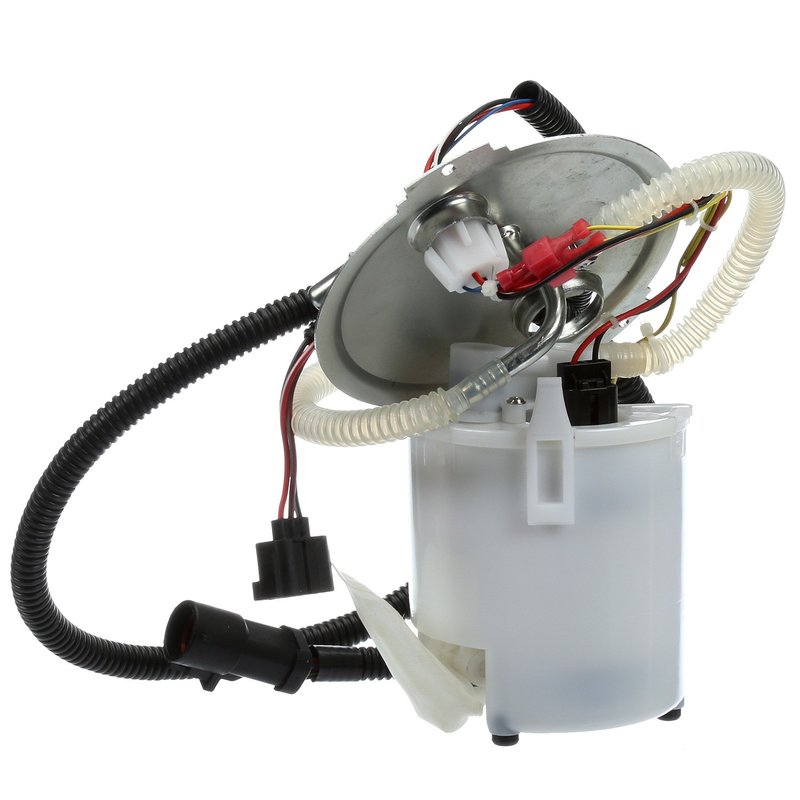

Delphi FG0840 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford Windstar

The Delphi FG0840 fuel pump module assembly is designed specifically for Ford Windstar vehicles, providing reliable fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures consistent performance with essential components included for a straightforward replacement.

• Electric fuel pump module assembly with float arm and seal
• Compatible with 12.0-volt systems and gas fuel type
• Includes external strainer and quick connect outlet fittings
• Seven-pin male terminal configuration for secure electrical connection
• Standard replacement grade with included gasket and strainer

Technical Specifications and Features

The Delphi FG0840 fuel pump module assembly operates at a system pressure of 44 psi with a maximum pressure rating of 88 psi, suitable for maintaining optimal fuel flow in Ford Windstar models. It features a 0.375-inch outlet outside diameter and two quick connect outlets for efficient fuel delivery. The module includes an external strainer inlet type and a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), ensuring accurate fuel gauge readings. The average current draw is 5 amps, supporting an average flow rating of 25 liters per hour. This assembly does not include a regulator or vapor pressure sensor but comes with a gasket or seal for proper installation.

Applications and Problem Resolution

• Replacement for faulty or failing fuel pump modules in Ford Windstar vehicles
• Resolves inconsistent fuel pressure or delivery issues
• Addresses inaccurate fuel level readings due to sender assembly failure
• Eliminates fuel pump noise or intermittent operation problems
• Prevents engine stalling or hesitation caused by inadequate fuel supply

Installation Notes and Tips

Installation of the Delphi FG0840 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections match the seven-pin male terminal configuration. Use the included gasket or seal to prevent fuel leaks and verify that the external strainer is properly positioned to avoid debris intake. Follow vehicle-specific service manual instructions for safe handling of fuel system components and proper torque specifications.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG0840 is a standard replacement grade part backed by Delphi's quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Ford Windstar applications.
