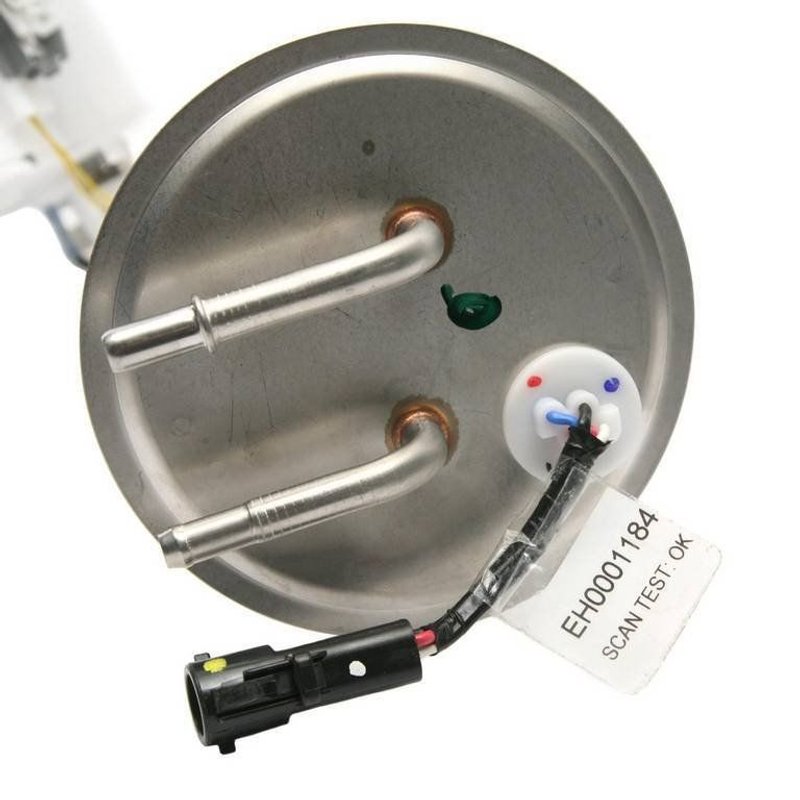

Delphi FG0842 Fuel Pump Module Assembly
Reliable Fuel Pump Module Assembly for Ford Escape and Mercury Mariner
The Delphi FG0842 fuel pump module assembly is designed to provide consistent fuel delivery for your Ford Escape or Mercury Mariner. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures efficient operation and compatibility with your vehicle's fuel system.
- Electric fuel pump module assembly with integrated fuel level sender
- Compatible with Ford Escape and Mercury Mariner gas models
- 12.0-volt operation with a maximum pressure of 73 psi
- Includes gasket, seal, and strainer for secure installation
- Quick connect outlet with 0.375-inch outside diameter
- Six male pin terminals for reliable electrical connections
- Average flow rating of 22 liters per hour and system pressure of 39 psi
Technical Details and Features
The Delphi FG0842 fuel pump module assembly operates at 12 volts and is designed specifically for gas fuel systems. It features an in-tank electric pump with an external strainer inlet type and a quick connect outlet type, providing two outlets with a 0.375-inch outside diameter. The assembly includes a fuel level sender assembly with float arm, gasket, and seal to ensure a proper fit and leak-free operation. The pump has a resistance of 15 ohms when empty and 160 ohms when full, with an average current draw of 10 amps. The system pressure is rated at 39 psi, while the maximum pressure reaches 73 psi, supporting consistent fuel delivery under various driving conditions.
Compatible Vehicles and Applications
This fuel pump module assembly is compatible with gas-powered Ford Escape and Mercury Mariner models. It is designed as a standard replacement part to restore proper fuel delivery and fuel level sensing in these vehicles. The FG0842 part number ensures you receive the correct fitment and performance for your specific model.
- Resolves fuel delivery issues such as engine stalling or hesitation
- Replaces faulty or worn-out fuel pump modules
- Restores accurate fuel level readings on the dashboard
- Eliminates fuel leaks with included gasket and seal
- Improves overall fuel system reliability and efficiency
Installation Notes and Tips
Installation of the Delphi FG0842 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized and the battery is disconnected before beginning. The included gasket and seal should be properly seated to prevent leaks. Verify electrical connections using the six male pin terminals and confirm the quick connect outlets are securely attached. Follow vehicle-specific service manual instructions for safe and correct installation.
Quality Assurance and Warranty
Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG0842 is a standard replacement grade part, tested for durability and performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship to provide confidence in your purchase.
| Brand | Delphi |
|---|---|
| Part Number | FG0842 |
| Average Current Draw | 10 |
| Average Flow Rating | 22 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 2 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Clips, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 39 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
This part fits 10 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2007 | Ford | Escape | GAS | N/A | without Onboard Fuel Vapor Recovery; To 01/02/2007; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2007 | Mercury | Mariner | GAS | N/A | without Onboard Fuel Vapor Recovery; To 01/02/2007; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2006 | Ford | Escape | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 2006 | Ford | Escape | GAS | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2006 | Mercury | Mariner | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 2006 | Mercury | Mariner | GAS | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2005 | Ford | Escape | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 2005 | Ford | Escape | GAS | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2005 | Mercury | Mariner | N/A | without Onboard Fuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. | |
| 2005 | Mercury | Mariner | N/A | without Onboard Fuel Vapor Recovery; From 02/28/2005; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
