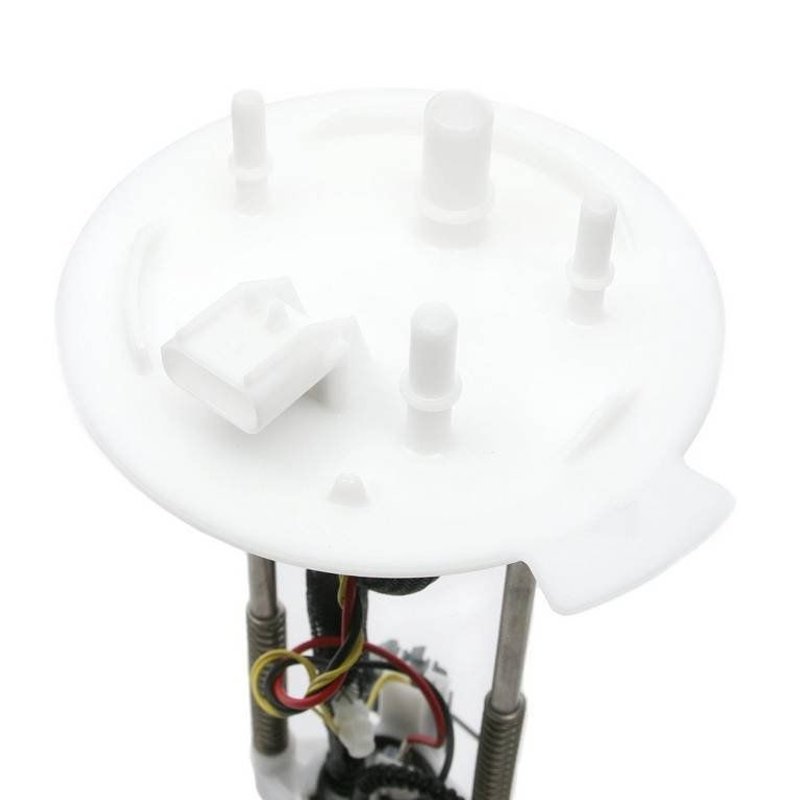

Delphi FG0845 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0845 fuel pump module assembly is designed specifically for Ford F-150 models requiring a reliable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports gas fuel systems with precise electrical and mechanical specifications.

• 12.0 Volt electric fuel pump with 44 psi system pressure
• In-tank design with external strainer and quick connect outlet
• Includes fuel level sender assembly with float arm and gasket seal
• Blade-type male terminals with 4-terminal configuration
• Compatible with Ford F-150 fuel systems requiring part number FG0845

Technical Specifications and Features

The Delphi FG0845 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features a maximum pressure rating of 92 psi and maintains a system pressure of 44 psi, ensuring steady fuel delivery. The pump includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, facilitating efficient fuel flow and easy installation. The module comes with a fuel level sender assembly, providing accurate fuel level readings. Electrical connections utilize four male blade terminals, supporting reliable power and signal transmission. This standard replacement grade module includes a gasket seal to prevent leaks and a strainer to protect the fuel system from contaminants.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with Ford F-150 trucks that require the Delphi FG0845 part. It is designed to replace in-tank electric fuel pumps in gas-powered F-150 models, ensuring proper fuel delivery and system performance.

• Resolves fuel delivery issues such as engine sputtering or stalling
• Addresses fuel level sender failures causing inaccurate gauge readings
• Replaces worn or damaged fuel pump modules to restore fuel pressure
• Eliminates fuel contamination problems with included external strainer
• Prevents electrical connection faults with blade terminal design

Installation Notes and Tips

When installing the Delphi FG0845 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The module’s quick connect outlet simplifies hose connections, but verify secure fittings to prevent leaks. The included gasket seal must be properly seated to maintain tank integrity. Handle the fuel level sender assembly carefully to avoid damage to the float arm. Electrical connections should be checked for corrosion and proper contact on the four blade terminals. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0845 part is a standard replacement grade component designed for durability and consistent performance in Ford F-150 applications. This product includes a gasket seal and strainer to enhance system reliability. Warranty coverage details should be confirmed with the distributor or installer, as Delphi typically offers limited warranties on fuel delivery components.
