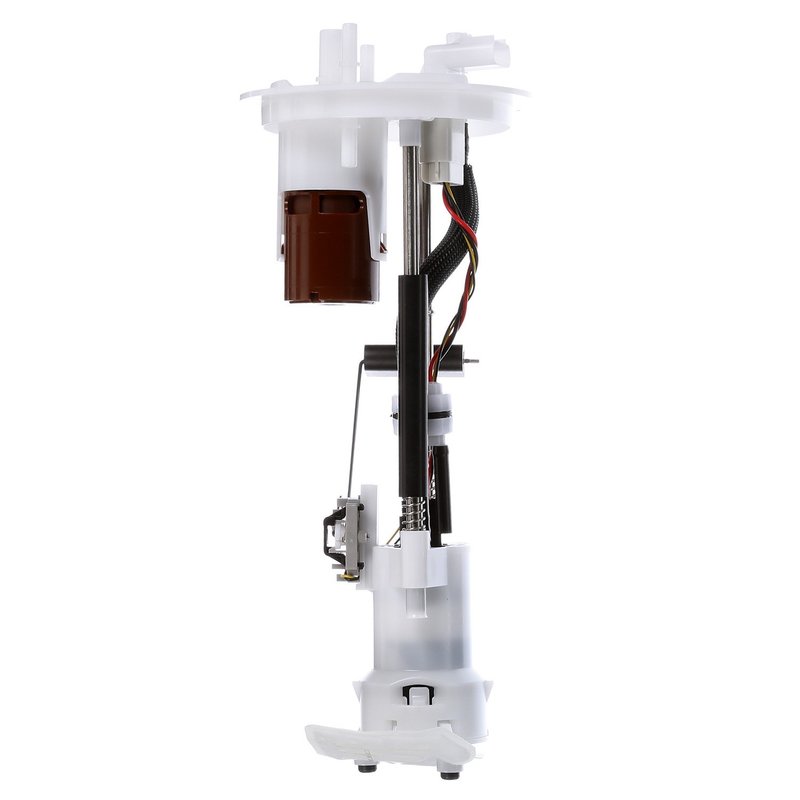

Delphi FG0847 Fuel Pump Module Assembly
| Brand | Delphi FG0847 |
|---|---|
| Average Current Draw | 12 |
| Average Flow Rating | 44 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 92.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 4 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 15.0 |
| Resistance Ohms Full | 160.0 |
| Strainer Included | Yes |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Ford and Lincoln · 24 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
Electric pump. Delivers consistent fuel delivery with a 44 flow rating.
Seal and strainer included. Ready for installation with key wear items in the box.
Cross-references Airtex Fuel Pumps E2436M, Carter P76345M and Spectra Premium SP2436M for the same application. See all 23.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG0847 Fuel Pump Module Assembly
Delphi FG0847 is an in-tank fuel pump module assembly for gasoline applications, built for 12-volt systems with a 44 psi system pressure and up to 92 psi maximum pressure. It includes the fuel level sender assembly, gasket or seal, and strainer, making it a direct replacement option for select Ford F-150 and Lincoln Mark LT models.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- 12.0V operation with 44 psi system pressure and 92.0 maximum pressure
- Fuel level sender assembly included for accurate tank level reporting
- Quick-connect outlet design with blade terminals and 4-terminal configuration
- Gasket or seal included; strainer included
- Standard replacement grade for OE-style service applications
- Fits 2004-2008 Ford F-150 and 2007-2008 Lincoln Mark LT
Detailed Description
Delphi FG0847 fuel pump module assembly is engineered for in-tank installation on gasoline vehicles and reflects Delphi’s OE heritage and supplier experience. The module is built with an electric pump, external strainer, quick-connect outlet, and male blade terminals, and it includes the fuel level sender assembly for integrated fuel delivery and level monitoring. This part cross-references Airtex E2436M and Carter P76345M for the same application. Fits 2004-2008 Ford F-150 and 2007-2008 Lincoln Mark LT, with fitment notes for extended range fuel tanks requiring tank cleaning kit FC01 to reduce contamination risk during replacement.
What It Helps Address
- Hard starting caused by weak or failing fuel delivery
- Engine hesitation or stalling from inconsistent fuel pressure
- Inaccurate fuel gauge readings from a worn sender assembly
- Fuel starvation concerns related to an aging in-tank pump module
- Replacement needs for select Ford F-150 and Lincoln Mark LT fuel systems
Installation Notes and Tips
Verify vehicle fitment by year, make, model, and fuel tank configuration before installation. This module uses a quick-connect outlet and blade terminals, and the package includes a seal and instruction sheet. For 2004-2008 Ford F-150 and 2007-2008 Lincoln Mark LT vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to help reduce the risk of contaminating the replacement pump.
Quality Assurance
Delphi draws on more than 100 years of OE experience and a broad aftermarket portfolio built from supplier knowledge used by major automakers. FG0847 is a standard replacement fuel pump module assembly intended to meet the needs of select Ford and Lincoln applications with OE-informed construction.
| Year | Make | Model | Submodel | Fuel Type | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Ford | F-150 | — | GAS | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Ford | F-150 | — | — | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Ford | F-150 | — | GAS | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Ford | F-150 | — | — | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Ford | F-150 | — | GAS | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Ford | F-150 | — | — | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2008 | Lincoln | Mark LT | — | — | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2007 | Ford | F-150 | — | GAS | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2007 | Ford | F-150 | — | GAS | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2007 | Ford | F-150 | — | GAS | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2007 | Lincoln | Mark LT | — | — | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | — | GAS | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | XL | GAS | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | — | GAS | 150.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | — | GAS | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | XLT | GAS | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | XL | GAS | 144.5" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | XL | GAS | 126.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2006 | Ford | F-150 | XL | GAS | 120.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2005 | Ford | F-150 | — | — | 163.3" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2005 | Ford | F-150 | — | — | 144.7" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2004 | Ford | F-150 | — | — | 163.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2004 | Ford | F-150 | — | — | 145.0" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| 2004 | Ford | F-150 | — | — | 144.4" | N/A | Fitment Note: For vehicles with extended range fuel tanks, use fuel tank cleaning kit FC01 to reduce risk of contaminating replacement fuel pump. |
| No rows match your filter. | |||||||
