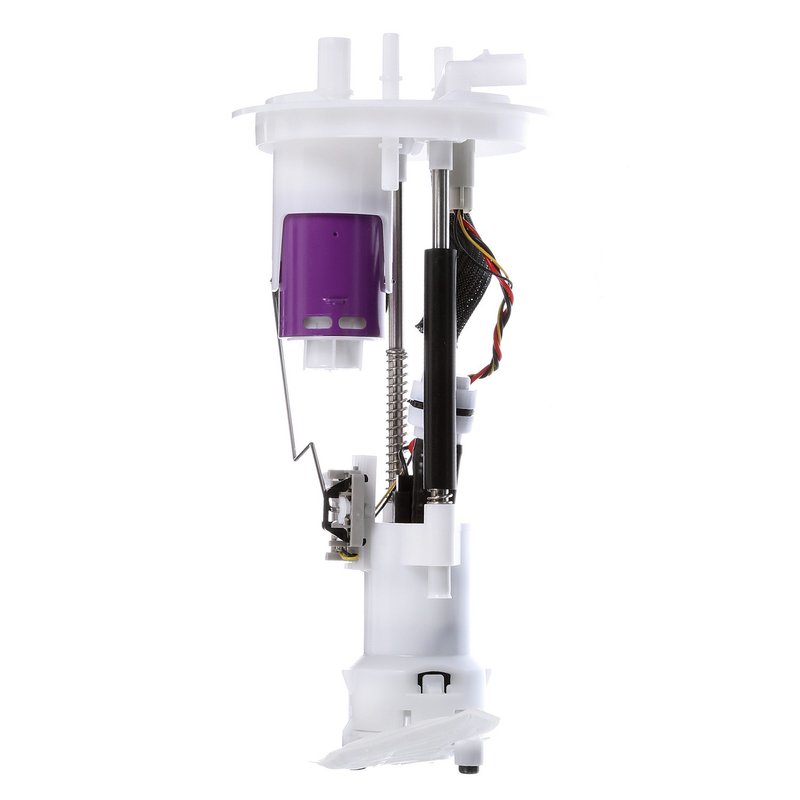

Delphi FG0850 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford F-150 and Lincoln Mark LT

The Delphi FG0850 fuel pump module assembly is designed to provide consistent fuel delivery for Ford F-150 and Lincoln Mark LT models. This in-tank electric fuel pump ensures efficient operation with precise fuel flow and pressure control, supporting optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Maximum pressure rating of 92 psi and system pressure of 44 psi
• Includes external strainer and gasket for secure installation
• Features quick connect outlet with 0.375-inch outside diameter
• Four male blade terminals for reliable electrical connections
• Standard replacement grade for dependable performance

Technical Details and Features

The Delphi FG0850 fuel pump module assembly operates at 12 volts and is engineered for gasoline fuel systems in Ford F-150 and Lincoln Mark LT vehicles. It features an external strainer inlet type and a quick connect outlet type with four outlets, each measuring 0.375 inches in outside diameter. The pump delivers an average flow rating of 44 liters per hour and maintains a system pressure of 44 psi, with a maximum pressure capacity of 92 psi. The module includes a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a tight fit and prevent leaks during installation.

Compatible Applications and Common Issues Addressed

• Replacement for faulty or failing fuel pump modules in Ford F-150 and Lincoln Mark LT
• Resolves inconsistent fuel delivery and engine performance problems
• Addresses fuel level sender malfunctions causing inaccurate fuel gauge readings
• Eliminates fuel leaks by providing a secure seal with included gasket
• Improves fuel system reliability in vehicles experiencing pressure drops or pump noise

Installation Notes and Tips

Installation of the Delphi FG0850 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Use the included gasket or seal to maintain a proper seal and prevent fuel leaks. Verify that the four male blade terminals are securely connected to the vehicle’s wiring harness. Follow the vehicle manufacturer’s service manual for torque specifications and safety precautions during installation.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for fit, form, and function. The FG0850 is a standard replacement grade part designed for reliable operation in Ford F-150 and Lincoln Mark LT models. This product includes a fuel level sender assembly and strainer to ensure long-term durability. Warranty coverage details should be confirmed with the point of purchase or Delphi’s official documentation.
