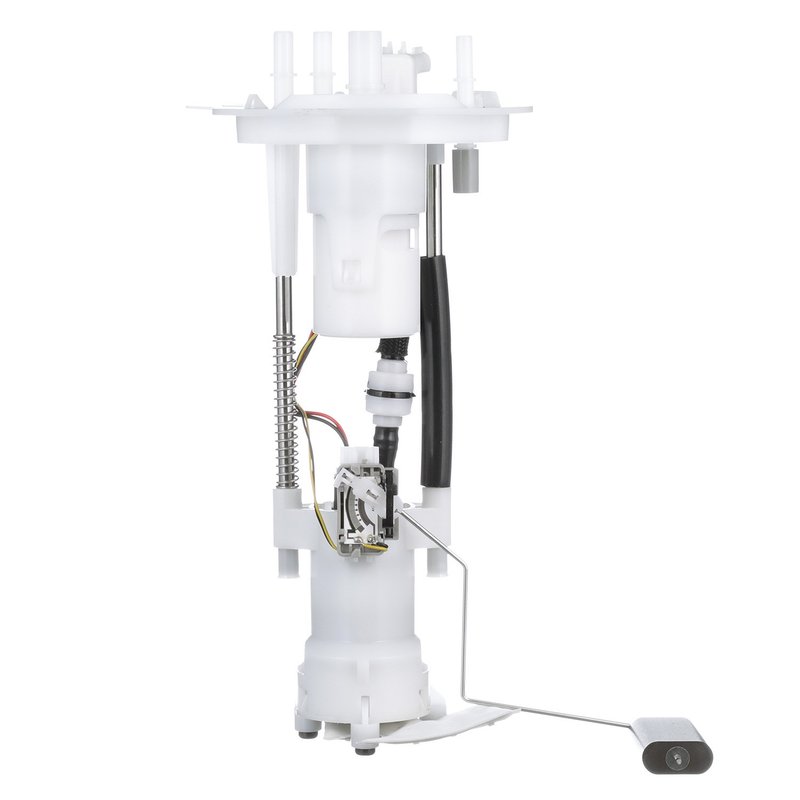

Delphi FG0851 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford F-150

The Delphi FG0851 fuel pump module assembly is designed specifically for Ford F-150 trucks, providing reliable in-tank fuel delivery for flex fuel systems. This electric fuel pump module ensures consistent fuel flow and pressure to maintain optimal engine performance.

Key Features of Delphi FG0851 Fuel Pump Module

• Voltage: 12.0 volts for standard automotive electrical systems
• Maximum pressure rating of 80 psi with a system pressure of 43 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• In-tank pump design with external strainer and quick connect outlet type
• Four blade-type male terminals for secure electrical connections
• Gasket and seal included for proper installation and leak prevention
• Compatible with flex fuel types, suitable for modern Ford F-150 models
• Average flow rating of 36 liters per hour and average current draw of 16 amps

Detailed Description of the Delphi FG0851 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0851) is engineered to meet the fuel delivery requirements of Ford F-150 trucks equipped with flex fuel systems. The electric pump operates at 12 volts and delivers a consistent flow rate of 36 liters per hour, maintaining system pressure at 43 psi to support efficient engine operation. The module includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring compatibility with factory fuel lines. The assembly features four blade-type male terminals for reliable electrical connections and comes with a gasket and seal to prevent leaks during installation. Additionally, the integrated fuel level sender assembly provides accurate fuel level readings, helping maintain driver awareness of fuel status.

Common Applications and Issues Addressed

• Replacement of failing or noisy fuel pumps in Ford F-150 flex fuel models
• Resolving inconsistent fuel pressure or flow problems affecting engine performance
• Fixing inaccurate fuel gauge readings due to faulty fuel level sender assemblies
• Addressing fuel delivery interruptions caused by clogged or damaged strainers
• Upgrading worn or damaged in-tank fuel pump modules to restore proper fuel system function

Installation Notes and Tips

• Ensure the vehicle is compatible with the Delphi FG0851 fuel pump module (Ford F-150 flex fuel models)
• Disconnect the battery before beginning installation to prevent electrical hazards
• Use the included gasket and seal to avoid fuel leaks and ensure a secure fit
• Handle the fuel level sender assembly carefully to avoid damage to the float arm
• Verify all electrical connections are secure and terminals are properly seated

Quality Assurance and Warranty Information

Delphi manufactures the FG0851 fuel pump module assembly to meet OEM standards for durability and performance. This standard replacement grade part undergoes rigorous testing to ensure reliable operation under typical driving conditions. The product includes a fuel level sender assembly and strainer to maintain system integrity. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
