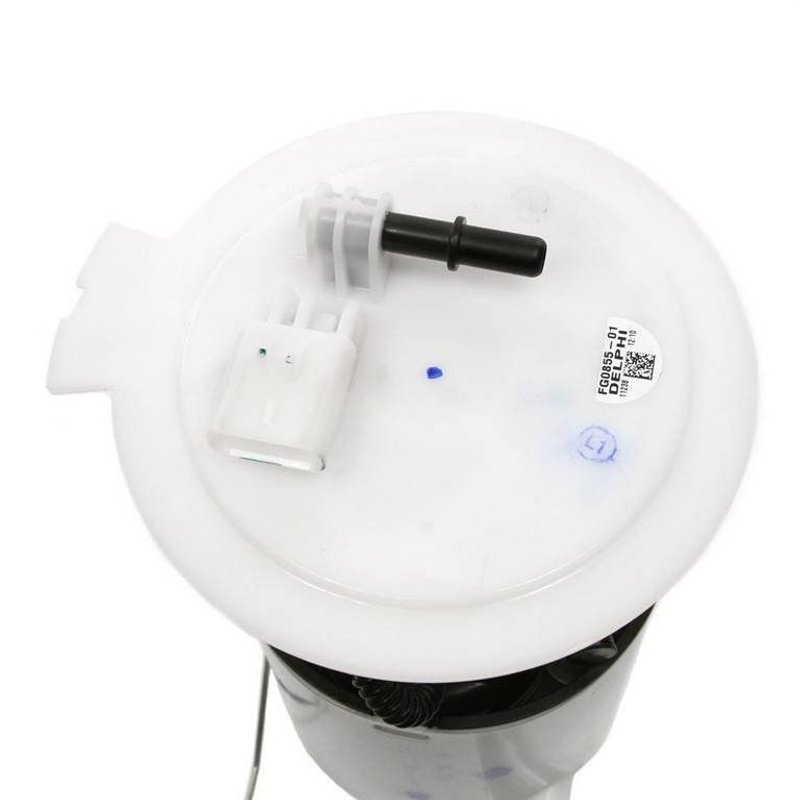

Delphi FG0855 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0855 fuel pump module assembly is designed for reliable fuel delivery in Dodge Durango and Jeep Grand Cherokee models. This in-tank electric fuel pump ensures consistent fuel flow and pressure for optimal engine performance.

• 12.0 Volt electric fuel pump with 4 blade terminals
• Compatible with gasoline fuel systems
• Maximum pressure rating of 80 psi and system pressure of 58 psi
• Includes internal strainer and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet
• Comes with gasket/seal and instruction sheet for installation

Technical Details and Features

The Delphi FG0855 fuel pump module assembly operates at 12 volts and is engineered for use with gasoline fuel types. It features an internal strainer inlet and a quick connect outlet, facilitating efficient fuel flow with an average flow rating of 38 liters per hour. The pump draws an average current of 15 amps and maintains system pressure at 58 psi, with a maximum pressure capacity of 80 psi. The module includes a fuel level sender assembly with resistance values ranging from 51 ohms (full) to 990 ohms (empty), providing accurate fuel level readings. The assembly is designed with four male blade terminals and includes a gasket or seal to ensure a secure fit within the fuel tank.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Dodge and Jeep vehicles, specifically the Dodge Durango and Jeep Grand Cherokee models, including the Grand Cherokee WK. It is intended as a standard replacement part for in-tank fuel pump systems in these vehicles, ensuring proper fit and function.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure or inconsistent fuel flow
• Replaces faulty fuel level sender assemblies for accurate gauge readings
• Eliminates fuel pump noise or failure symptoms
• Restores proper operation in vehicles with damaged or clogged strainers

Installation Notes and Tips

Installation of the Delphi FG0855 fuel pump module assembly requires removal of the fuel tank. Ensure the gasket or seal included is properly seated to prevent leaks. The quick connect outlet and blade terminals simplify electrical and fuel line connections. Verify terminal orientation and secure all connections before reassembling. Follow the included instruction sheet carefully to maintain safety and proper installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for durability and performance. This FG0855 assembly is a standard replacement grade part designed to provide reliable operation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
