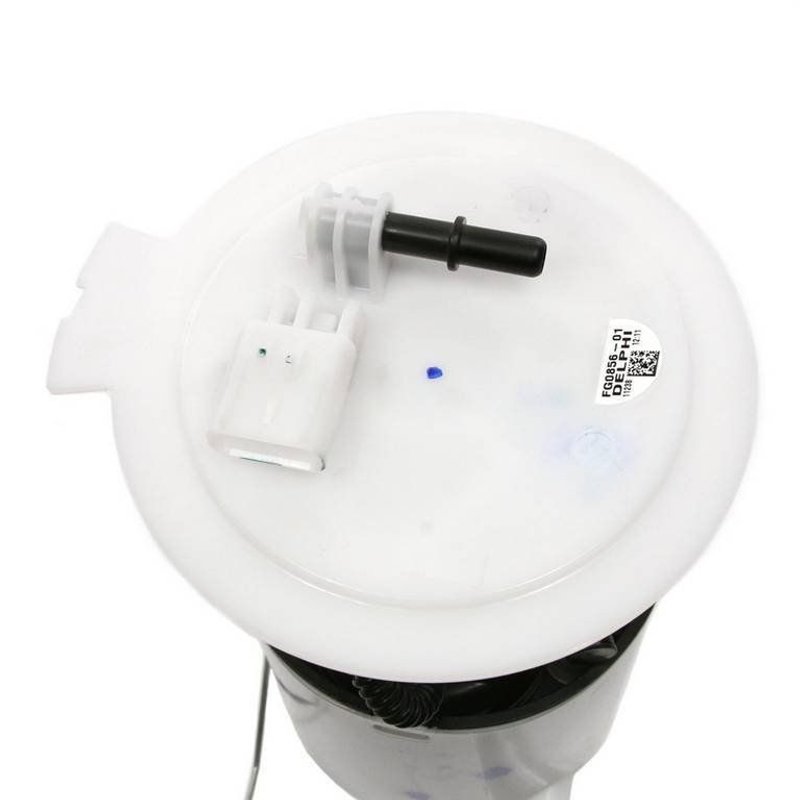

Delphi FG0856 Fuel Pump Module Assembly - Left

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0856 fuel pump module assembly is designed for reliable fuel delivery in Dodge Durango and Jeep Grand Cherokee vehicles. This in-tank electric fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• 12.0 Volt electric fuel pump with a maximum pressure of 81 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Equipped with 4 male blade terminals for secure electrical connections
• Comes with a gasket/seal and strainer included for proper installation

Technical Details and Features

The Delphi FG0856 fuel pump module assembly operates at an average current draw of 15 amps and delivers an average flow rating of 38 liters per hour. It features an internal strainer inlet type and a single outlet for efficient fuel delivery. The module is designed for use with flex fuel types and includes a fuel level sender assembly to provide accurate fuel gauge readings. The terminal configuration includes four male blade terminals, ensuring compatibility with the vehicle’s wiring harness. This standard replacement grade pump module is positioned on the left side of the fuel tank and does not include a regulator or lock ring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with select Dodge Durango and Jeep Grand Cherokee models. It is specifically engineered to meet the fuel delivery requirements of these vehicles, supporting system pressures up to 59 psi. The FG0856 part number ensures proper fitment and function for these applications.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pump noise caused by worn or damaged components
• Prevents fuel leaks with included gasket and seal for secure installation

Installation Notes and Tips

When installing the Delphi FG0856 fuel pump module assembly, ensure the vehicle’s battery is disconnected to prevent electrical hazards. Carefully remove the old fuel pump module from the in-tank position on the left side, taking care not to damage the fuel tank or lines. Use the included gasket/seal to create a proper seal and prevent leaks. Verify that the four male blade terminals align correctly with the vehicle’s wiring harness connectors. Follow the vehicle manufacturer’s torque specifications for securing the module. After installation, check for proper fuel pressure and fuel gauge operation before completing the job.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG0856 is a standard replacement grade part designed to provide reliable service life. While specific warranty terms may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or the vehicle service manual for detailed warranty information.
