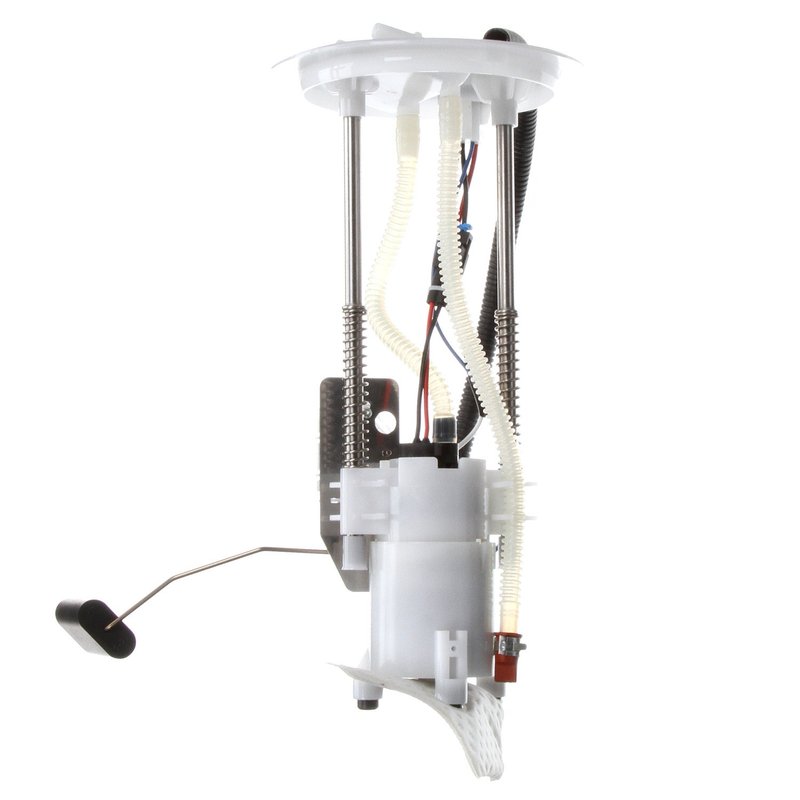

Delphi FG0866 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Lincoln Navigator

The Delphi FG0866 fuel pump module assembly is designed specifically for the Lincoln Navigator, providing consistent fuel delivery and accurate fuel level readings. This in-tank electric fuel pump module ensures optimal performance for gasoline engines requiring a 12-volt system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Lincoln Navigator fuel systems
• 12.0 volts operating voltage with 4 male pin terminals
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Maximum pressure rating of 80 psi and system pressure of 44 psi
• Average flow rating of 40 liters per hour and average current draw of 10 amps

Technical Details and Features

The Delphi FG0866 fuel pump module assembly is engineered for reliable fuel delivery in the Lincoln Navigator. It features an in-tank electric pump designed to operate at 12 volts, with a maximum pressure capacity of 80 psi and a system pressure of 44 psi. The module includes a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel gauge readings. The pump uses a quick connect outlet type with two outlets, each having an outside diameter of 0.375 inches, facilitating straightforward fuel line connections. The assembly comes with an external strainer inlet and includes a strainer to protect the pump from debris. Four male pin terminals ensure secure electrical connections, and a gasket is included to maintain a proper seal during installation.

Compatible Vehicles and Applications

• Designed for use with Lincoln Navigator models requiring a standard replacement fuel pump module
• Suitable for gasoline fuel systems operating at 12 volts
• Ideal for addressing fuel delivery issues such as inconsistent fuel pressure or inaccurate fuel level readings
• Replaces faulty or worn fuel pump modules to restore proper engine performance

Installation Notes and Tips

When installing the Delphi FG0866 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid fuel spillage. The included gasket should be carefully positioned to prevent leaks. Verify that the four male pin terminals align correctly with the vehicle’s wiring harness. The quick connect outlets simplify fuel line attachment but confirm secure connections to prevent fuel leaks. It is recommended to inspect the fuel tank and lines for contamination before installation to prolong pump life.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications, ensuring reliable performance and durability. This FG0866 module is a standard replacement part backed by Delphi’s quality standards. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
