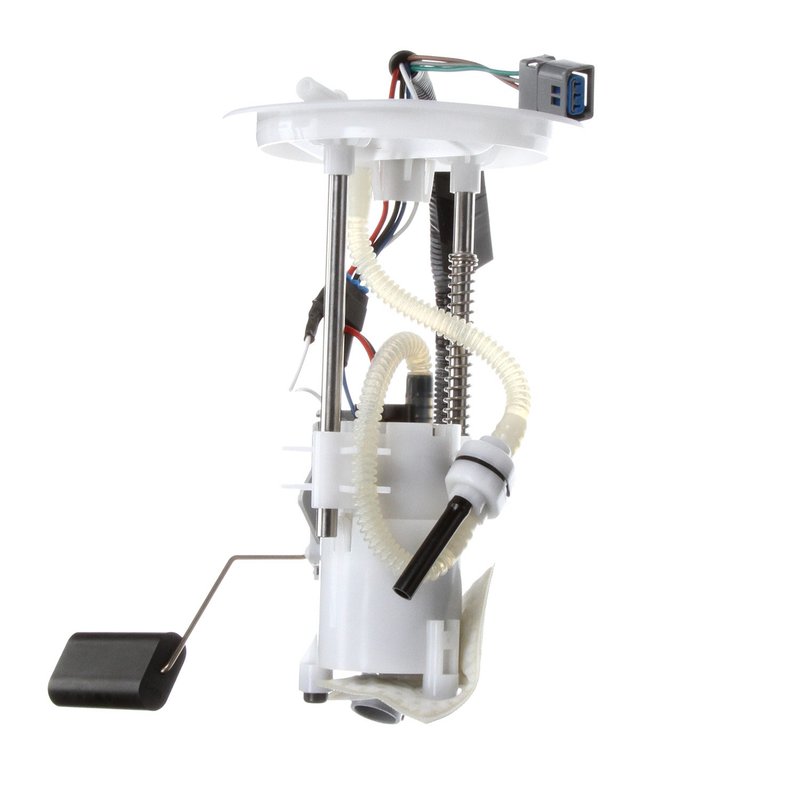

Delphi FG0868 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0868 fuel pump module assembly is designed for reliable fuel delivery in Ford Explorer and Mercury Mountaineer vehicles. This in-tank electric fuel pump module ensures consistent fuel flow and accurate fuel level readings for flex fuel applications.

• Compatible with Ford Explorer and Mercury Mountaineer models
• 12.0 Volt electric fuel pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly with float arm for precise fuel measurement
• External strainer inlet type with quick connect outlet (0.375 inch diameter)
• Seven-pin male terminal type for secure electrical connections
• Gasket and seal included for proper installation and leak prevention
• Average flow rating of 26 gallons per hour and system pressure of 39 psi
• Designed for flex fuel compatibility and standard replacement grade

Technical Details and Features

The Delphi FG0868 fuel pump module assembly operates at 12 volts and features an electric pump type suitable for in-tank installation. It includes an external strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow. The module has a maximum pressure rating of 73 psi and maintains a system pressure of 39 psi, supporting optimal engine performance. The seven-pin male terminal configuration provides reliable electrical connectivity, while the included gasket and seal help maintain a secure, leak-free installation. Additionally, the fuel level sender assembly with float arm offers accurate fuel level readings, with resistance values ranging from 7 ohms (empty) to 138 ohms (full). This module is designed specifically for flex fuel systems, making it suitable for vehicles running on ethanol blends.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Explorer (flex fuel models)
• Mercury Mountaineer (flex fuel models)

It is intended as a direct replacement for the original fuel pump module in these vehicles, ensuring proper fit and function.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings on the dashboard gauge
• Fuel pump noise or failure due to worn internal components
• Fuel leaks caused by damaged seals or gaskets in the fuel pump assembly
• Reduced fuel pressure affecting engine performance and fuel efficiency

Installation Notes and Tips

When installing the Delphi FG0868 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized. Use the included gasket and seal to prevent leaks and verify that the seven-pin male terminals are securely connected. The quick connect outlet simplifies fuel line attachment, but confirm all connections are tight. Follow the vehicle manufacturer’s service manual for specific removal and installation procedures to avoid damage to the fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for durability and performance. This standard replacement grade part undergoes rigorous testing to ensure reliable operation in flex fuel applications. While specific warranty details may vary, Delphi typically offers coverage against defects in materials and workmanship. Consult product documentation or the supplier for exact warranty terms related to part number FG0868.
