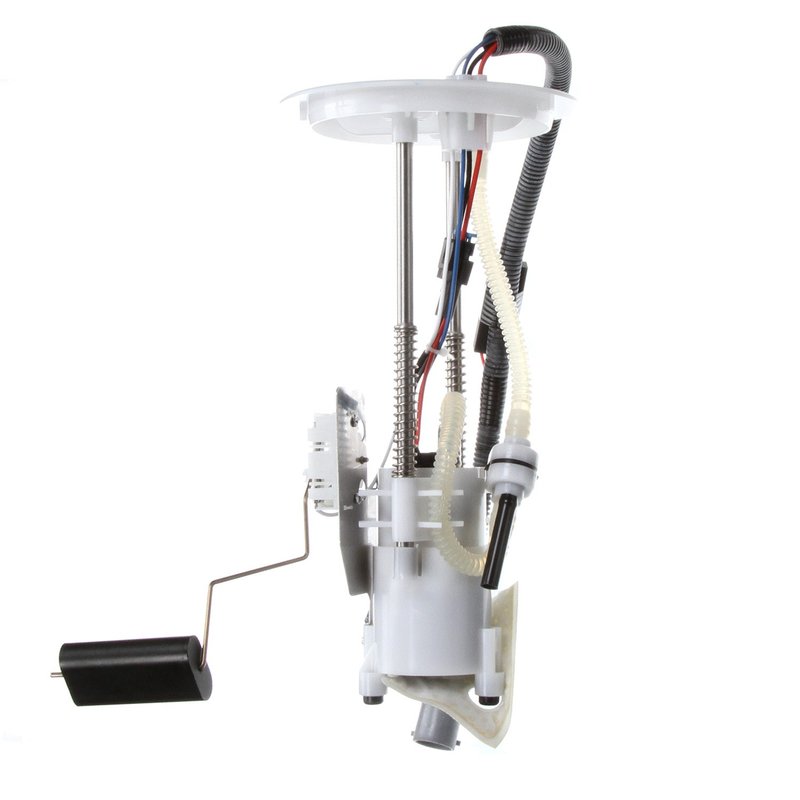

Delphi FG0870 Fuel Pump Module Assembly
| Brand | Delphi FG0870 |
|---|---|
| Average Current Draw | 15 |
| Average Flow Rating | 21 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Flex |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 73.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 7.0 |
| Resistance Ohms Full | 138.0 |
| Strainer Included | Yes |
| System Pressure | 62 psi |
| Terminal Gender | Male |
| Terminal Quantity | 5 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
| Fits | Ford · 2 vehicles |
Standard replacement. Built as a fuel pump module assembly for straightforward service.
OE heritage. Backed by decades of OE experience and supplier knowledge.
Includes strainer. Comes with a seal and fuel level sender assembly.
Cross-references Airtex Fuel Pumps E2358M, Carter P76168M and Spectra Premium SP2107M for the same application. See all 13.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FG0870 Fuel Pump Module Assembly
Delphi FG0870 is an in-tank electric fuel pump module assembly for flex-fuel applications, built for 12-volt systems and standard replacement service. It includes the fuel level sender assembly, strainer, gasket or seal, and a quick-connect outlet for a direct-service style repair on select Ford Explorer Sport Trac models.
Key Features
- In-tank electric fuel pump module assembly for flex fuel systems
- 12.0-volt operation with a 73.0 maximum pressure rating
- Fuel level sender assembly included for accurate tank level reporting
- Strainer and gasket or seal included
- Quick-connect outlet with 0.375 in. outside diameter
- 5-pin male terminal design
- Standard replacement part backed by Delphi OE heritage
Detailed Description
Delphi FG0870 is engineered as a fuel pump module assembly for the fuel tank, combining the pump and sender functions needed for proper fuel delivery and level monitoring. It is specified for 2004 Ford Explorer Sport Trac and 2005 Ford Explorer Sport Trac applications, including the 5-pin connector configuration noted for the 2004 model year. Delphi draws on more than a century of OE experience and a broad aftermarket portfolio, bringing OE-based design knowledge to this replacement fuel pump module assembly. This part cross-references Airtex Fuel Pumps E2358M and Carter P76168M for the same application.
What It Helps Address
- Hard starting caused by weak or failing fuel delivery
- Engine stalling from inconsistent in-tank pump output
- Incorrect fuel gauge readings from a worn sender assembly
- Fuel starvation under load from reduced pump flow
- Fuel system service needs on 2004-2005 Ford Explorer Sport Trac models
Installation Notes and Tips
Fits 2004 Ford Explorer Sport Trac, N/A; with 5 Pin Connector. Fits 2005 Ford Explorer Sport Trac, N/A. Clean the fuel tank before installing the new pump to reduce the risk of seal problems and premature failure. Delphi FG0870 uses a quick-connect outlet and pin-style terminals, so verify connector and line compatibility before installation.
Quality Assurance
Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed through long-term supplier experience with major automakers. The FG0870 is a standard replacement fuel system component for select Ford Explorer Sport Trac applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Ford | Explorer Sport Trac | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Ford | Explorer Sport Trac | N/A | with 5 Pin Connector; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
