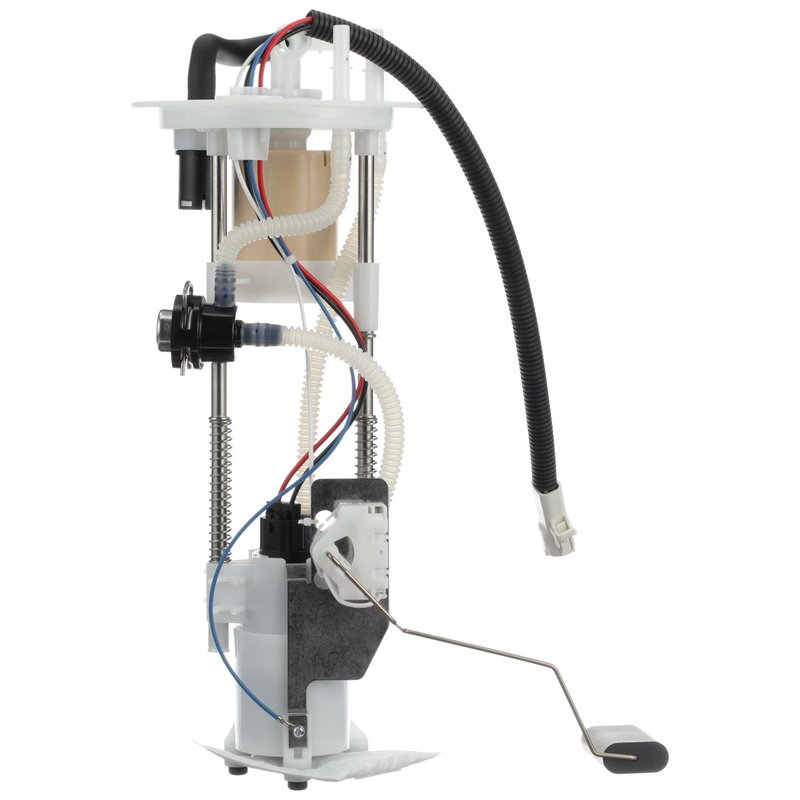

Delphi FG0871 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly for Ford Ranger

The Delphi FG0871 fuel pump module assembly is designed specifically for Ford Ranger models requiring reliable in-tank fuel delivery. This electric fuel pump module ensures consistent fuel pressure and flow, supporting optimal engine performance and efficiency.

• 12.0 Volt electric fuel pump with integrated fuel level sender assembly
• Compatible with gasoline fuel systems in Ford Ranger vehicles
• Includes regulator, external strainer, and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter and four outlets
• Maintains system pressure at 44 psi with a maximum pressure rating of 65 psi
• Pin-type male terminals with four connections for reliable electrical interface
• Average flow rating of 30 liters per hour and average current draw of 7 amps

Product Details and Specifications

The Delphi FG0871 fuel pump module assembly is engineered as a standard replacement part for Ford Ranger trucks. It features an in-tank electric pump designed to deliver consistent fuel flow and pressure, critical for maintaining engine performance. The module includes a fuel level sender assembly with resistance values ranging from 15 ohms (empty) to 160 ohms (full), providing accurate fuel gauge readings. The external strainer inlet type helps protect the pump from contaminants, while the included regulator ensures stable fuel pressure within the system. The quick connect outlet type simplifies installation and connection to the fuel lines.

Compatible Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Ranger gas engines
• Resolves fuel delivery problems causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel pressure inconsistencies affecting engine performance
• Prevents fuel leaks with included gasket and secure terminal connections

Installation Notes and Tips

Installation of the Delphi FG0871 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure all electrical connections use the four-pin male terminals provided, and verify the quick connect outlets are securely attached to the fuel lines. Replace the included gasket to maintain a proper seal and prevent leaks. Follow vehicle-specific service manual instructions for safe handling of fuel system components.

Quality Assurance and Warranty

This Delphi fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It is a standard replacement grade part designed to provide reliable operation in Ford Ranger vehicles. The product includes a fuel level sender assembly and strainer to ensure long-term durability. Warranty coverage details should be confirmed with the parts distributor or manufacturer.
