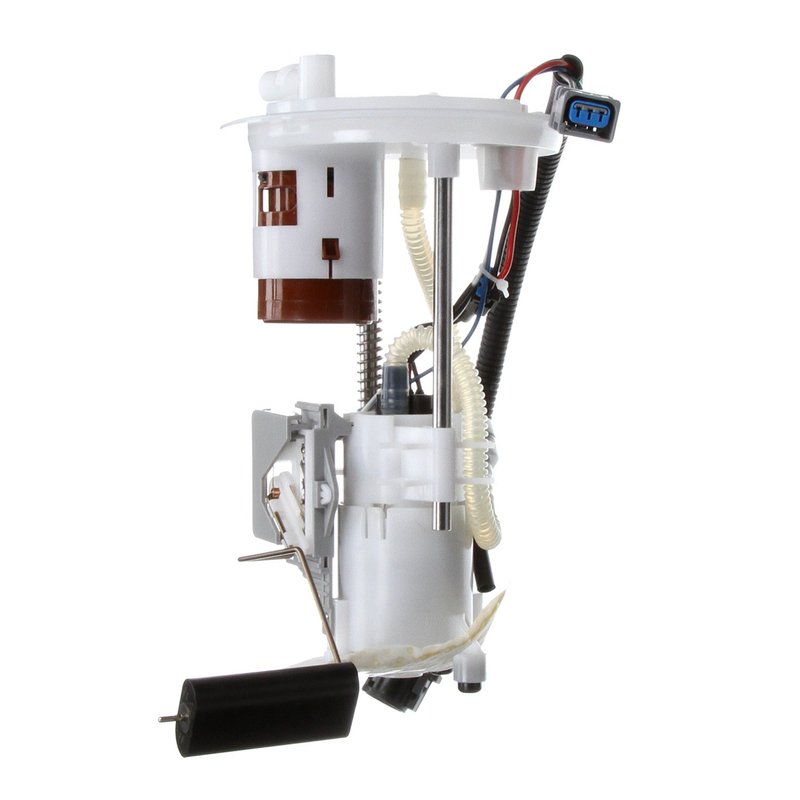

Delphi FG0874 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford Explorer and Mercury Mountaineer

The Delphi FG0874 fuel pump module assembly is designed to provide consistent fuel delivery for Ford Explorer, Explorer Sport Trac, and Mercury Mountaineer models. This in-tank electric fuel pump ensures efficient operation with precise fuel flow and pressure control.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with 12.0-volt systems and gasoline fuel type
• Includes external strainer inlet and quick connect outlet (0.375 inch diameter)
• Standard replacement grade with gasket and strainer included
• Seven male pin terminals for secure electrical connections
• Average flow rating of 26 gallons per hour and system pressure of 39 psi

Technical Specifications and Features

The Delphi FG0874 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an external strainer inlet and two quick connect outlets with a 0.375-inch outside diameter, ensuring proper fuel flow and filtration. The module includes a fuel level sender assembly with float arm, providing accurate fuel level readings. With seven male pin terminals, the unit offers reliable electrical connectivity. The pump delivers an average flow rating of 26 gallons per hour and maintains a system pressure of 39 psi, with a maximum pressure rating of 73 psi. The included gasket and strainer help maintain system integrity and prevent contaminants from entering the fuel system.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Explorer
• Ford Explorer Sport Trac
• Mercury Mountaineer

Use the Delphi FG0874 to replace faulty or worn fuel pump modules in these models to restore proper fuel delivery and engine performance.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pressure drops leading to poor engine performance or hesitation
• Contaminated fuel causing clogging or damage to the fuel system
• Electrical connection failures resulting in pump malfunction

Installation Notes and Tips

Installation of the Delphi FG0874 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Carefully remove the old fuel pump module, noting the orientation and connection points. Replace the gasket to maintain a proper seal and prevent leaks. Connect the seven male pin terminals securely and verify the quick connect outlets are properly attached. After installation, check for fuel leaks and test the fuel pump operation before reassembling the vehicle.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications, providing reliable performance and durability. The FG0874 is a standard replacement grade part backed by Delphi’s quality standards. While specific warranty details may vary, Delphi products typically include a limited warranty against defects in materials and workmanship. Consult product documentation or your supplier for exact warranty terms.
