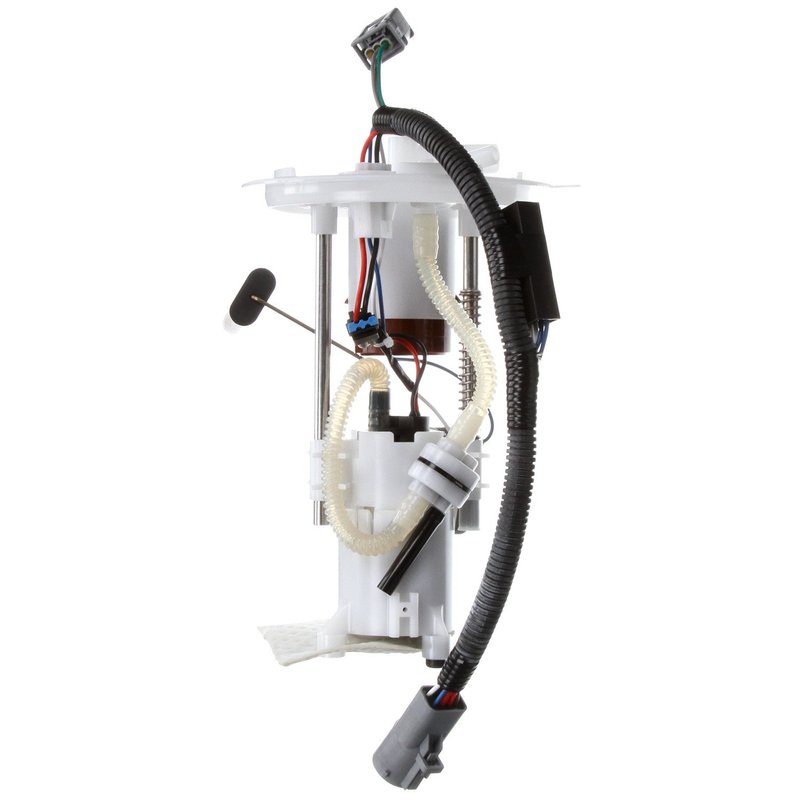

Delphi FG0875 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0875 fuel pump module assembly is designed for reliable fuel delivery in Ford Explorer and Mercury Mountaineer vehicles. This in-tank electric fuel pump module ensures consistent fuel flow and pressure for gas and flex fuel applications.

• Compatible with Ford Explorer and Mercury Mountaineer models
• 12.0 Volt electric pump with a maximum pressure of 73 psi
• Includes fuel level sender assembly and external strainer
• Quick connect outlet with 0.375 inch outside diameter
• Comes with gasket/seal and instruction sheet for installation

Technical Specifications and Features

The Delphi FG0875 fuel pump module assembly operates at 12 volts and delivers an average flow rating of 26 liters per hour, maintaining a system pressure of 39 psi. It features an external strainer inlet type and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The module includes eight male pin terminals and a fuel level sender assembly with resistance values ranging from 7 ohms (empty) to 138 ohms (full). This standard replacement part is designed for gas and flex fuel systems and includes a gasket or seal to ensure a secure fit.

Applications and Problem Solving

• Restores proper fuel delivery in Ford Explorer and Mercury Mountaineer vehicles
• Resolves fuel pump failure symptoms such as engine stalling or no-start conditions
• Addresses inconsistent fuel pressure or flow issues
• Replaces faulty fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel contamination by utilizing the included external strainer

Installation Notes and Tips

Installation of the Delphi FG0875 fuel pump module assembly requires removal of the fuel tank. Ensure the gasket or seal is properly seated to prevent leaks. The module’s quick connect outlets simplify fuel line connections, and the eight-pin male terminals should be carefully aligned to avoid damage. Follow the included instruction sheet for detailed guidance. It is recommended to inspect the fuel tank and lines for debris before installation.

Quality Assurance and Warranty

Delphi manufactures the FG0875 fuel pump module assembly to meet OEM standards for fit, form, and function. This part undergoes rigorous testing to ensure durability and reliable performance in Ford Explorer and Mercury Mountaineer vehicles. The product includes a standard replacement warranty, providing coverage against defects in materials and workmanship.
