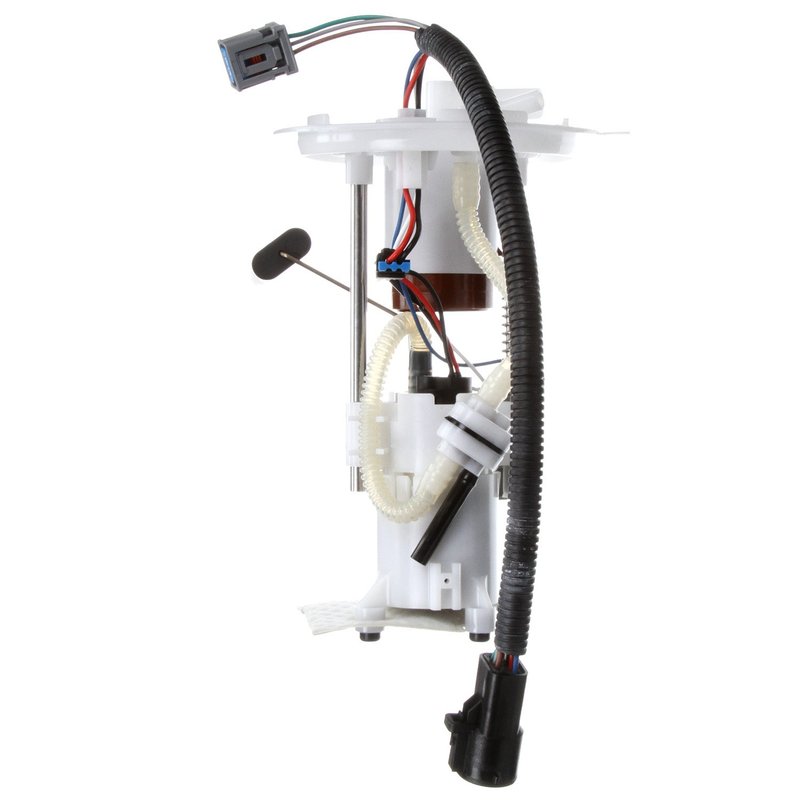

Delphi FG0876 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0876 fuel pump module assembly is designed for reliable fuel delivery in Ford Explorer and Mercury Mountaineer vehicles. This electric in-tank fuel pump ensures consistent fuel flow and pressure for optimal engine performance.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Ford Explorer and Mercury Mountaineer models
• 12.0 Volt operation with a maximum pressure of 73 psi
• Includes external strainer and gasket for secure installation
• Quick connect outlet with 0.375 inch outside diameter
• Seven male pin terminals for secure electrical connections
• Standard replacement grade with average flow rating of 26

Technical Specifications and Features

The Delphi FG0876 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an electric pump type with an average current draw of 15 amps and a system pressure rating of 39 psi. The module includes an external strainer on the inlet side and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The assembly comes with a fuel level sender assembly and a gasket or seal to ensure a proper fit and prevent leaks. The seven male pin terminals provide reliable electrical connections, supporting accurate fuel level readings with resistance values ranging from 15 ohms (empty) to 160 ohms (full). This module is intended as a standard replacement part for in-tank fuel delivery systems in compatible vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Ford Explorer
• Mercury Mountaineer

It is designed to replace the original fuel pump module in these models, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by Delphi FG0876

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced fuel pressure affecting engine performance
• Fuel leaks caused by worn seals or gaskets in the fuel pump assembly
• Electrical connection problems from damaged or corroded terminals

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Ford Explorer or Mercury Mountaineer model year
• Use the included gasket or seal to prevent fuel leaks during installation
• Handle the fuel pump module carefully to avoid damage to the strainer and terminals
• Follow manufacturer instructions for proper torque on mounting components

Quality Assurance and Warranty

The Delphi FG0876 fuel pump module assembly is manufactured to meet standard replacement quality requirements. It includes a fuel level sender assembly and is tested for consistent fuel flow and pressure performance. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always consult the product documentation or supplier for exact warranty terms.
