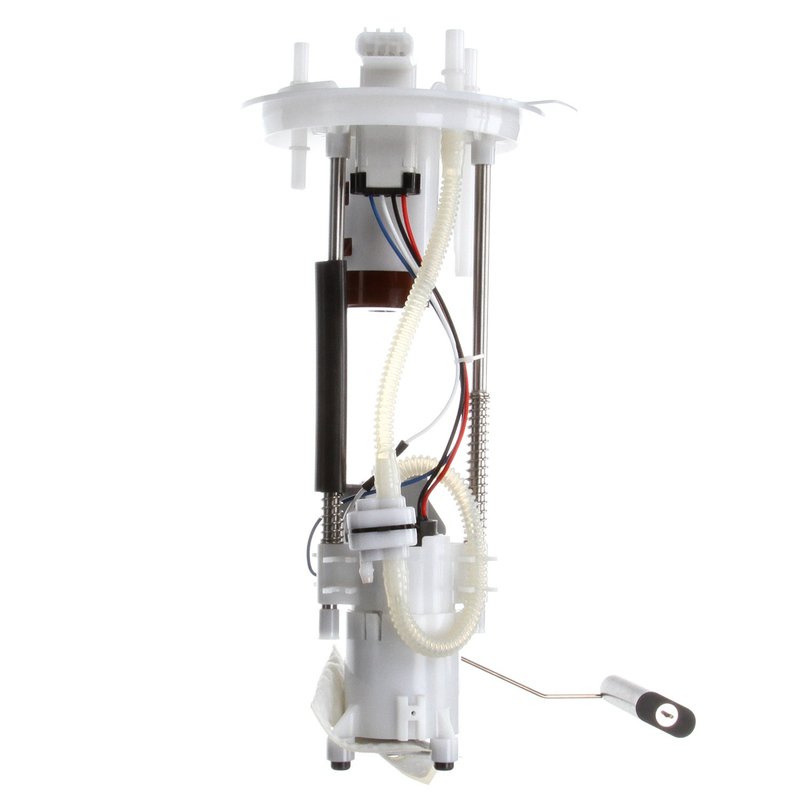

Delphi FG0878 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0878 fuel pump module assembly is designed for reliable fuel delivery in Ford F-150 trucks. This in-tank electric fuel pump module ensures consistent fuel flow and pressure for optimal engine performance in flex-fuel applications.

• Compatible with Ford F-150 models
• 12.0 Volt electric pump with 37 GPH average flow rating
• Includes fuel level sender assembly with float arm
• External strainer inlet and quick connect outlet type
• Gasket and strainer included for secure installation
• Blade-type male terminals with 4-terminal quantity
• Maximum pressure rating of 73 psi and system pressure of 44 psi

Technical Specifications and Features

The Delphi FG0878 fuel pump module assembly operates at 12 volts and delivers an average flow rate of 37 gallons per hour, suitable for flex-fuel systems. It features a 0.375-inch outlet outside diameter with four quick connect outlets, facilitating efficient fuel delivery. The pump includes a fuel level sender assembly with a float arm to provide accurate fuel level readings. The assembly comes with a gasket and an external strainer inlet to protect the pump from contaminants. Electrical connections use four blade-type male terminals, ensuring secure and reliable wiring. The pump’s maximum pressure is rated at 73 psi, with a system pressure of 44 psi, supporting consistent fuel supply under various operating conditions.

Application and Common Issues Addressed

• Restores proper fuel delivery in Ford F-150 trucks experiencing fuel starvation
• Replaces faulty or worn fuel pump modules causing engine hesitation or stalling
• Resolves inaccurate fuel level readings due to a malfunctioning sender assembly
• Addresses fuel contamination issues with included external strainer
• Improves fuel system reliability in flex-fuel equipped Ford F-150 vehicles

Installation Notes and Tips

Installation of the Delphi FG0878 fuel pump module assembly requires removal of the fuel tank. Ensure the gasket is properly seated to prevent leaks. Verify electrical connections match the blade-type male terminals and secure all quick connect outlets firmly. It is recommended to inspect the fuel tank for debris before installation to prolong pump life. Follow all safety precautions when working with fuel system components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0878 is a standard replacement grade part designed for durability and consistent performance. This product includes a fuel level sender assembly and necessary seals to ensure a complete and reliable installation. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
