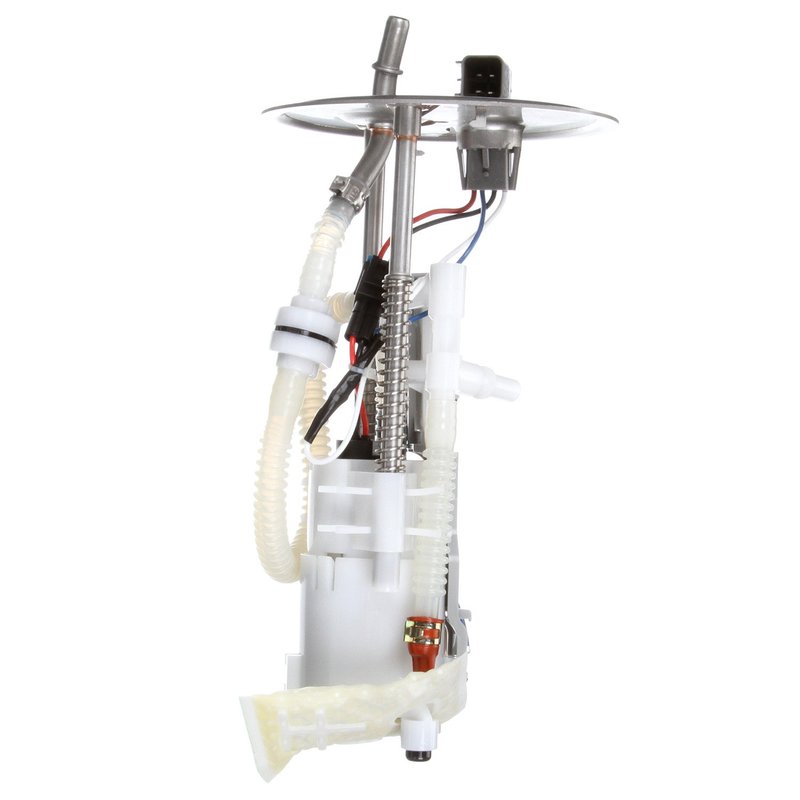

Delphi FG0880 Fuel Pump Module Assembly - Left

Reliable Fuel Pump Module Assembly for Ford Mustang

The Delphi FG0880 fuel pump module assembly is designed specifically for Ford Mustang models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• In-tank design with external strainer for fuel filtration
• Quick connect outlet with 0.375 inch outside diameter
• Includes fuel level sender assembly with float arm
• Compatible with gasoline fuel systems
• Standard replacement grade with included gasket and strainer
• Four male blade terminals for secure electrical connection
• System pressure rated at 59 psi with maximum pressure of 73 psi
• Average flow rating of 26 liters per hour and 10 amps current draw

Detailed Product Description

The Delphi FG0880 fuel pump module assembly is a precision-engineered component designed for Ford Mustang vehicles. This electric fuel pump operates at 12 volts and is built to maintain a system pressure of 59 psi, with a maximum pressure capacity of 73 psi. The module features an external strainer inlet type to ensure clean fuel delivery and prevent contaminants from entering the fuel system. The quick connect outlet, measuring 0.375 inches in outside diameter, allows for straightforward installation and secure fuel line connection.

This fuel pump module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The assembly comes with a gasket or seal to ensure a proper fit and prevent leaks. Electrical connections are made via four male blade terminals, designed for reliable and stable power delivery. The pump’s resistance ranges from 15 ohms when empty to 160 ohms when full, supporting consistent operation across fuel levels.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Ford Mustang models
• Resolves fuel delivery problems causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel leaks by providing a new gasket and secure connections
• Improves fuel system pressure stability for smoother engine performance

Installation Notes and Tips

• Compatible with Ford Mustang fuel systems requiring an in-tank electric pump
• Ensure the vehicle’s battery is disconnected before installation to avoid electrical hazards
• Verify the orientation of the float arm for accurate fuel level readings
• Use the included gasket to prevent fuel leaks and ensure a tight seal
• Check all electrical connections for secure fitment of the four blade terminals

Quality Assurance and Warranty

The Delphi FG0880 fuel pump module assembly is manufactured to meet standard replacement quality requirements. Delphi is known for producing reliable automotive components that comply with OEM specifications. This product includes a fuel level sender assembly and strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
