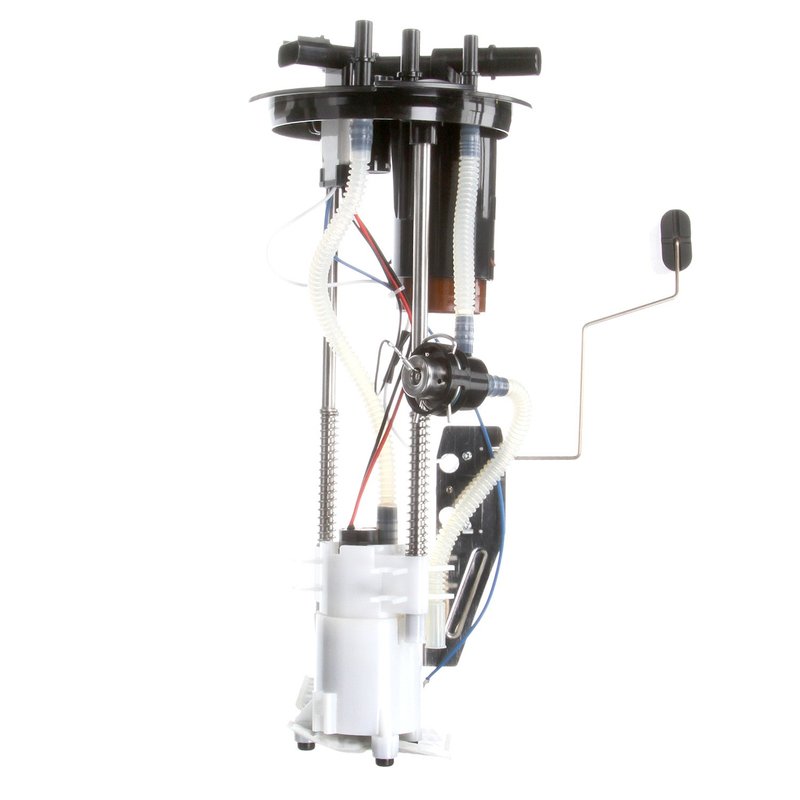

Delphi FG0884 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Ford and Mazda Trucks

The Delphi FG0884 fuel pump module assembly is designed to provide consistent fuel delivery for select Ford and Mazda trucks. Engineered for gas-powered vehicles, this in-tank electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Compatible with Ford Ranger, Mazda B2300, B3000, and B4000 models
• 12-volt electric pump with a maximum pressure of 65 psi
• Includes fuel level sender assembly with float arm for accurate fuel gauge readings
• Equipped with a regulator and external strainer for fuel filtration and pressure control
• Quick connect outlet with 0.375-inch outside diameter for secure fuel line attachment
• Four male blade terminals for reliable electrical connections
• Comes with gasket and seal to ensure leak-free installation

Technical Details and Features

The Delphi FG0884 fuel pump module assembly operates at 12 volts and is designed specifically for gasoline fuel systems. It features an electric pump type with an average flow rating of 23 liters per hour and a system pressure of 62 psi, suitable for maintaining optimal fuel delivery in Ford Ranger and Mazda B-series trucks. The module includes a built-in regulator to maintain consistent fuel pressure and an external strainer inlet to protect the pump from contaminants. The assembly also incorporates a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s dashboard. The outlet is a quick connect type with a 0.375-inch outside diameter, facilitating straightforward installation and secure fuel line connection. Four male blade terminals ensure stable electrical connectivity, and the package includes a gasket and seal to prevent leaks during installation.

Applications and Problem Solving

• Restores proper fuel pressure and flow in Ford Ranger and Mazda B-series trucks
• Replaces faulty or worn fuel pump modules causing engine stalling or hesitation
• Solves inaccurate fuel gauge readings with integrated fuel level sender assembly
• Prevents fuel contamination issues with included external strainer
• Addresses electrical connection problems with four blade terminals for secure wiring

Installation Notes and Tips

Installation of the Delphi FG0884 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Use the included gasket and seal to prevent fuel leaks and verify that all electrical connections are secure on the four male blade terminals. The quick connect outlet simplifies fuel line attachment, but confirm proper seating to avoid fuel delivery interruptions. Follow the vehicle manufacturer’s service manual for detailed removal and installation procedures specific to Ford Ranger and Mazda B2300, B3000, and B4000 models.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for reliable performance and durability. The FG0884 is a standard replacement grade part, designed to restore factory-level fuel delivery and fuel gauge accuracy. This product includes a warranty that covers defects in materials and workmanship, providing confidence in its long-term operation when installed correctly.
