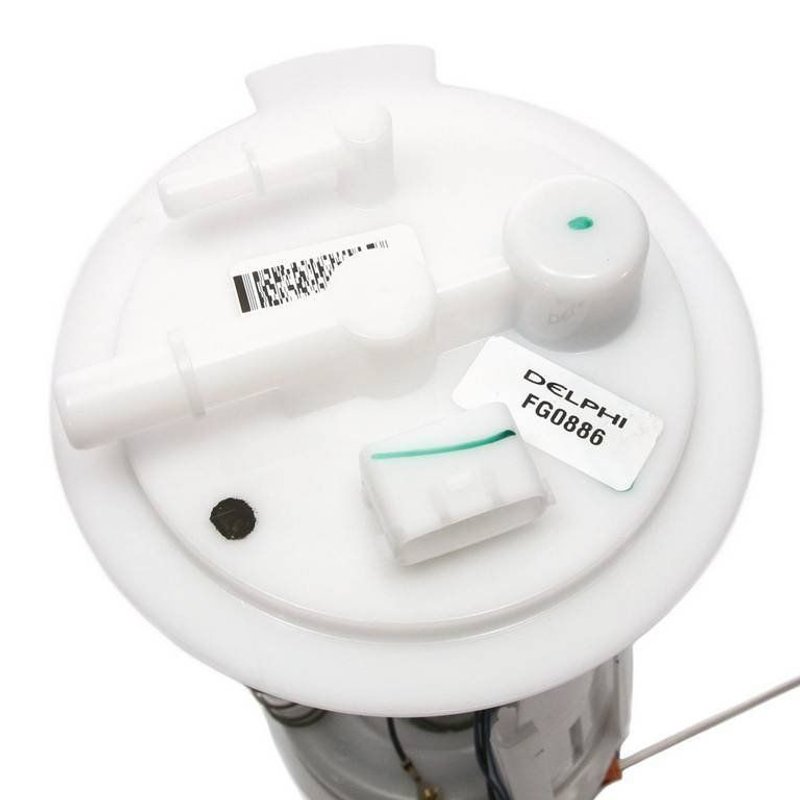

Delphi FG0886 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Nissan and Suzuki Vehicles

The Delphi FG0886 fuel pump module assembly is designed to provide consistent fuel delivery for select Nissan and Suzuki models. Engineered for in-tank installation, this electric fuel pump module ensures proper fuel pressure and flow to maintain engine performance.

• Compatible with Nissan Frontier, Pathfinder, Xterra, and Suzuki Equator
• 12.0 Volt electric pump with a maximum pressure of 53 psi
• Includes fuel level sender assembly and internal strainer for clean fuel delivery
• Equipped with a regulator and gasket for secure installation
• Features quick connect outlets with 0.375 inch outside diameter
• Blade-type male terminals with 5-terminal configuration
• Average flow rating of 28 gallons per hour and average current draw of 6 amps

Technical Details and Specifications

The Delphi FG0886 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet type and quick connect outlet type with two outlets, each measuring 0.375 inches in outside diameter. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The regulator is integrated to maintain system pressure at approximately 51 psi, with a maximum pressure rating of 53 psi. Electrical connections use blade-type male terminals, with a total of five terminals to ensure proper wiring and functionality. The pump’s resistance varies from 81 ohms when empty to 5 ohms when full, supporting efficient current draw averaging 6 amps during operation.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Nissan Frontier, Pathfinder, Xterra, and Suzuki Equator
• Resolves fuel delivery problems causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel pressure inconsistencies affecting engine performance
• Prevents fuel contamination with included internal strainer

Installation Notes and Tips

This fuel pump module assembly is designed for in-tank installation and includes a gasket for sealing. Ensure the fuel tank is properly drained and depressurized before removal. Use appropriate tools to disconnect the quick connect outlets and blade terminals carefully to avoid damage. Verify the orientation of the float arm and sender assembly during installation to maintain accurate fuel level readings. Follow the included instruction sheet for detailed installation steps and torque specifications.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for fit, form, and function. The FG0886 is a standard replacement grade part backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Nissan and Suzuki vehicles.
